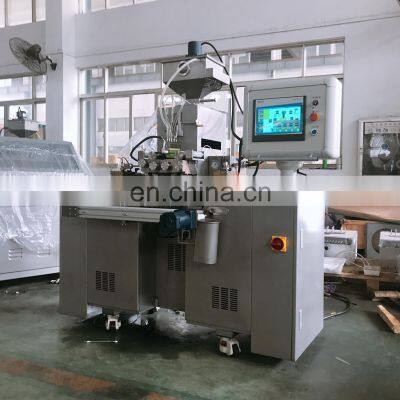

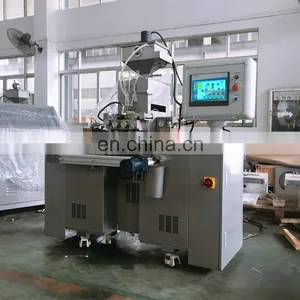

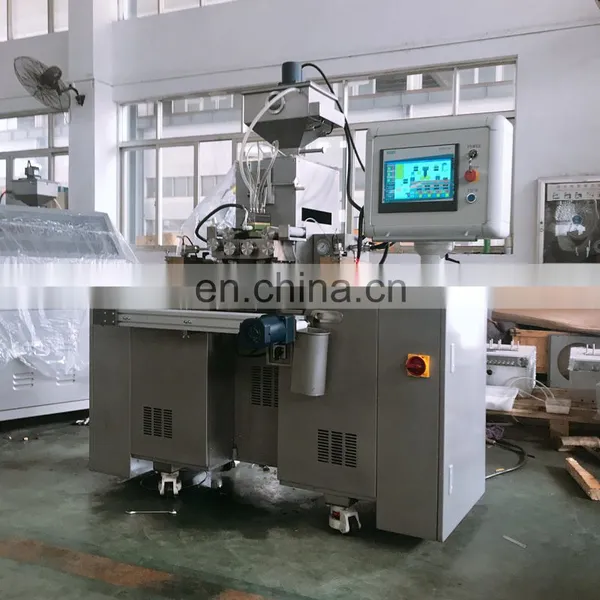

Automatic Vitamin Cod Liver Oil Facial Serum Soft Capsule Machine

Name: Automatic Vitamin Cod Liver Oil Facial Serum Soft Capsule Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.

If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.

Attention: 1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us. 2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat. 3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Product Description

Application and Usage: Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on. This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.

Machine Details

Featuer:

1.Strong product capacity, it can produce 600 million granules (No.8 oval shape, 3 revolutions/minute, 24 hours / day,
300 days/year).

2.Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.

3.Capsule package rate is up to 98%.

4.The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.

5.Adopts food conveyor belt without poison and inhibitor and easy to clean.

6.Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.

7.Advanced process and assembly technics make the complete appliance quality stabilization , high working rate, and good shape pill.

8.Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.

9.The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the
thickness of rubber, which is easy and accurate in adjustment.

10.The power of main motor is 1.5KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).

11.Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

Technical Parameters

Main Technical Data:
ITEM/MODEL	LTRJ-110	LTRJ-180	LTRJ-200	LTRJ-250
Rotary speed of die roll	0-4rpm	0-5rpm	0-5rpm	0-5rpm
Supplying Volume for flow single-pillar pistol	0-1ml	0-2ml	0-2ml	0-2ml
Difference among filling volume	±2%	±2%	±2%	±2%
Power for whole machine	4KW	6.5KW	7.5KW	16.5KW
Pillar quantity	8	12	12	20
Contour sizes	600×850×1650mm	790×920×2100mm	1500×1150×2000mm	2300×1275×2400mm
Weight of whole machine	650Kg	980Kg	1050Kg	2800Kg

Gelatin Melting Tank

This temperature control gelatin dissolving unit can be used in combination with laboratory soft gelatin encapsulation machine to provide gelatin liquid for making soft gelatin capsule.

Physic Volume：50L

Gelatin Dissolving Volume：30L

Power of Motor：2.48Kw

Dimension：800*550*1590mm

Weight：200kg

Machine	Tumble Dryer
Rotary cage quantity	2 sections
Rotaty cage speed	13r/min
Power Supply	380v 50Hz
Fan capacity	960m³/h X2
Fan power	380V 200WX2
Dimensions	1700X770X865mm
N.W.:	170kg
Total power	1.2kw
