Multi Purpose Pill Capsules Making Machine Capsules Powder Filling Machine Automatic Capsules Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Capsules Filling Machine Small Pill Capsules Making Machine Gelatin Capsules Powder Filling MachineNegotiableMOQ: 1 -
NJP-Series New Type Automatic Coffee Capsules Filling Sealing Machine Small Pill Capsules Making MachineNegotiableMOQ: 1
-
NJP-Series High Productivity Capsules Filling Machine Full Automatie Capsules Filling Sealing Machine ManufactureNegotiableMOQ: 1
-
Automatic Small Nylon Triangle Tea Powder Leaf Bag Sachet Paper Filling Sealing Horizontal Packing MachineNegotiableMOQ: 1
-
Automatic Fish Oil Soft Capsule Machine Soft Gel Pill Liquid Soft Capsule Filling MachineNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
warm hint
1 -- Because the exchange rate is changing, the specific price of the machine will also change.
1 -- Because the exchange rate is changing, the specific price of the machine will also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Product Description
NJP-series Automatic capsule filling machine
Automatic capsule filling machine adopt PLC control system, human-machine interface, when running malfunction or lack of stuff,automatic alarm, malfunction display, automatic dismiss alarm. And with functions of password setup, touching screen display,automatic parameter setup, data printing, reset, etc. It is an ideal equipment for filling capsule drugs and meets GMP standardSuitable capsule size:
Our machine is suitable for Powder, Granular and Pellet filling etc, special for Capsule size from #00 to #5.
Technical Parameters

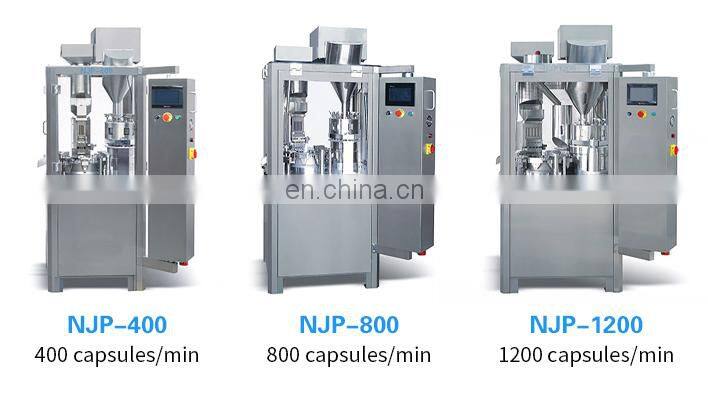

Model | NJP-400 | NJP-800 | NJP-1200 | NJP-1500 | |||
Capacity | 400/min | 800/min | 1200/min | 1500/min | |||
Capsule size | #00 - #5 | ||||||
Power consume | 3.2kw | 5.5kw | 5.5kw | 6.8kw | |||
Quantity of mould bores | 3pcs | 6pcs | 9pcs | 14pcs | |||
Noise standard | ﹤75dB(A) | ||||||
Weight | 900kg | 1000kg | 1050kg | 1300kg | |||
Size (mm) | 660*800*1750 | 700*900*1850 | 1020*870*1980 | 1500*1040*1970 | |||
Warranty | 5 years | ||||||
More data | If you want to know more model data, please contact us with inquiry | ||||||
Product Details

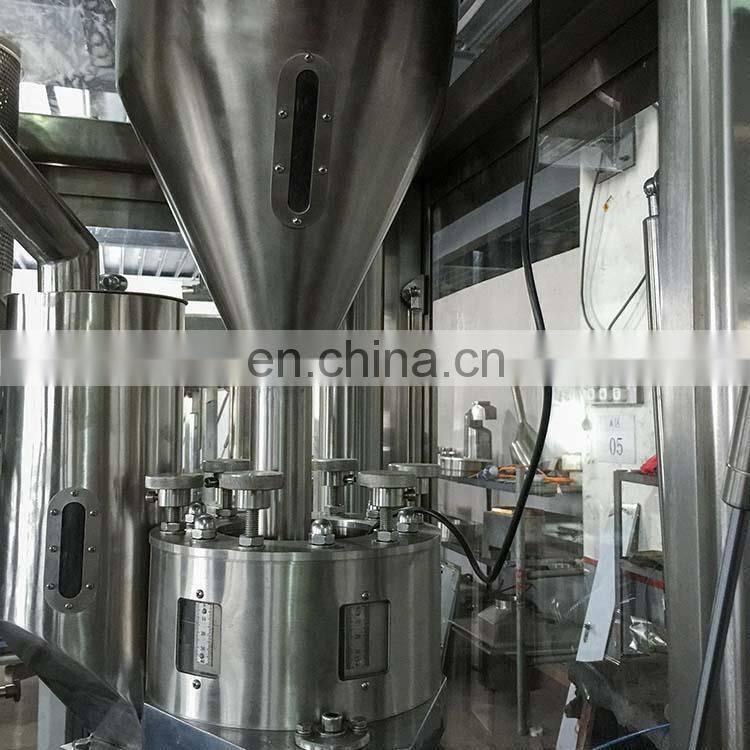

Powder Hopper
Adopt plane spring for filling powder, this type spring can afford TWO BILLION TIMES Pressing, but never changed overall
dimension. So it makes the weight of powder filling in an accuracy number.
dimension. So it makes the weight of powder filling in an accuracy number.
Capsule Hopper
The multi-bore dosing brings a precision dosage (it is controlled around ±0.75%); the good capsule applicability makes a higher
capsule qualified rate (≧99%).
capsule qualified rate (≧99%).

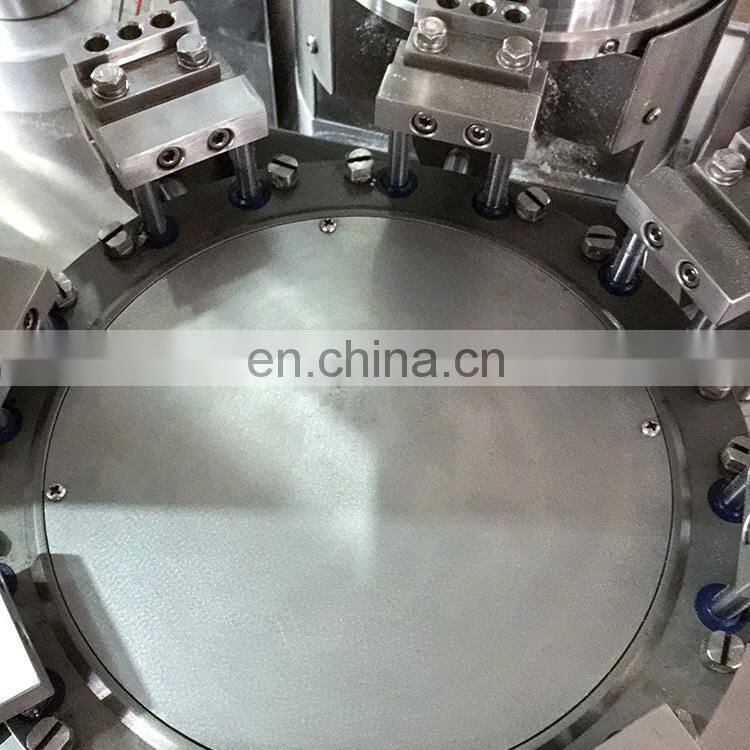

Filling Tray
The turntable framework has no splicing gap, good sealing, easy disassembly and maintenance, low operation noise and high
precision
precision

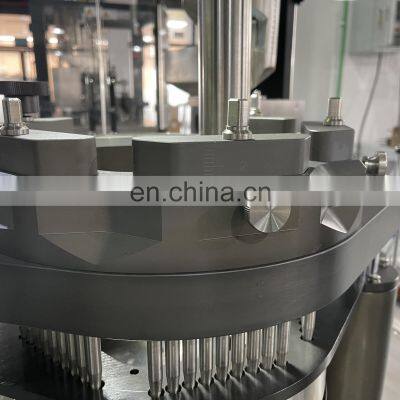

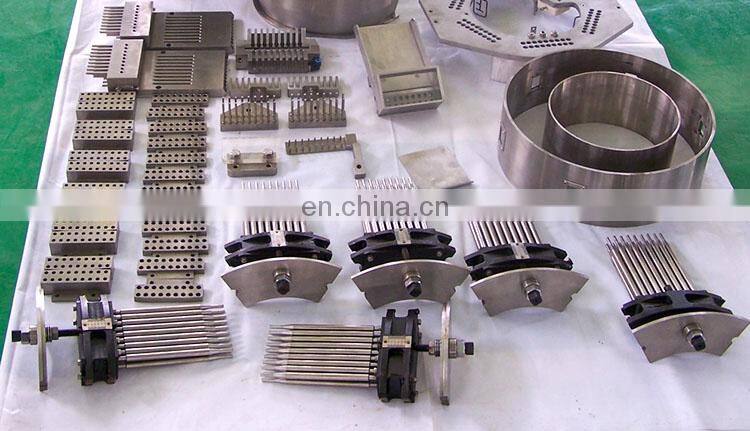

Parts Mould
The molds are polished, the surface is smooth, and the fluidity of materials is enhanced. All kinds of viscous materials do not
need to worry, so as to ensure that the machine is not blocked
need to worry, so as to ensure that the machine is not blocked
Machine Packing
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
Features
1. The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
2. It adopts enlarged Cam, LTPM CHINA has become the one who matches the cam of RU100 to Ru83, while it enhances the stability of the machines and extends the life of the machines to a great extent.
3. It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
4. Automatic Capsule Switch operated by Touch Screen avoid Dangerous Accident happens when open the switch by hand into the working station.
5. Our quality machine use Tanshing Cam box, in automatic capsule filling machine area Honest Business is the most important, Because Customers can’t see the mechanical parts inside. So our company can promise we use the real type but never “labeling type”.
6. Add the extra function of capsule control switch. (Control the capsule outside of the machine; it is more safely and quickly).
7. Add the click-moving control system, makes an easier operation and clearness.
More Products
Company Profie
Our Company
China Ruian City LeadTop Pharmaceutical Machinery Co., LTD (LTPM) is recognized as a major pharmaceutical equipment manufacturer and supplier. Our company is founded in Ruian, China, with a base of 18 years of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
