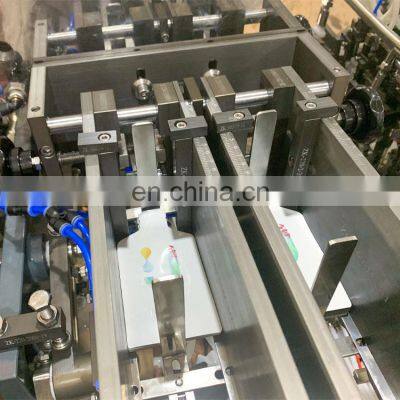

Automatic Small Nylon Triangle Tea Powder Leaf Bag Sachet Paper Filling Sealing Horizontal Packing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Fish Oil Soft Capsule Machine Soft Gel Pill Liquid Soft Capsule Filling MachineNegotiableMOQ: 1 -
Horizontal Special-Shaped Bag Jelly Fruit Vegetable Enzyme Beverage Bag Type Packaging MachineNegotiableMOQ: 1
-
Automatic Pharmaceutical Powder Hollow Hard Capsule Granule Filling MachineNegotiableMOQ: 1
-
Multi-Channel Automatic Capsule Tablet Effervescent Tablet Electronic Tablet Filling Counting MachineNegotiableMOQ: 1
-
Multi-Channel Automatic Electronic Ultra-Wide Channel Beef Balls Granulation Bottle Filling Machine Capsule Counting MachineNegotiableMOQ: 1

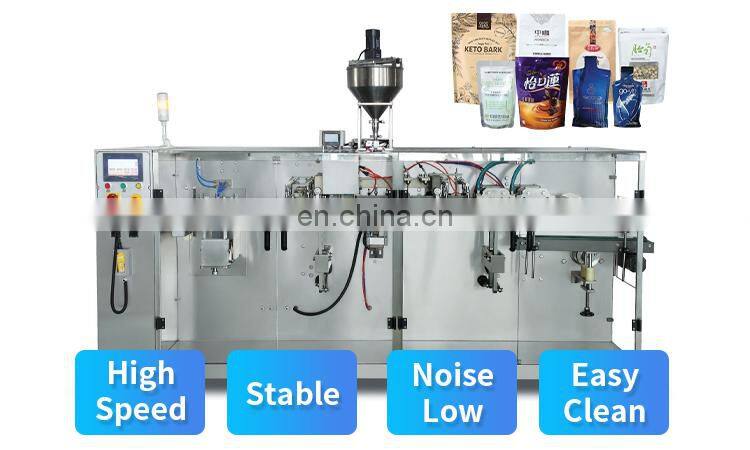

HorizonTop-series Horizontal Packaging Machine
HorizonTop-series Horizontal Packaging Machine is suitable for filling different products such as powder, granule, candy, tablets, liquid, viscous liquid, cream etc. It is applied to a wide range of packages, such as pre-made Pouch, stand up pouch, zipper pouch, spouted pouch, and shaped pouch etc.Up to 15kg can be filled
It can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery.
Full servo technology machine ,fast in packing, stable in operating, Low noise, Food grade 304 stainless steel, easy to clean, easy to maintain, durable machine with reasonable price.
Technical Parameters
Model |
HorizonTop--210 |
HorizonTop--250 |
HorizonTop--360 |
HorizonTop--500 |
Speed |
30-50 bags/min |
30-45 bags/min |
15-35 bags/min |
3-15 bags/min |
Accuracy |
± 1.5% |
± 1.5% |
± 1.5% |
± 1.5% |
Bag width |
55-200mm |
80-250mm |
120-350mm |
120-400mm |
Bag height |
100-280mm |
100-280mm |
100-280mm |
150-500mm |
Max packaging capacity |
1-5kg |
1-5kg |
1-5kg |
1-15kg |
Power |
4kw |
4kw |
4kw |
4kw |
Gas consumption |
0.6m3/min |
0.6m3/min |
0.6m3/min |
0.6m3/min |

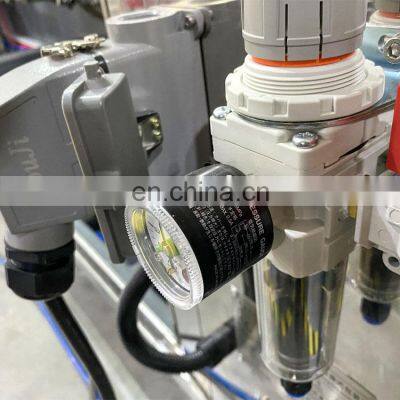

Air pressure value |
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
Weight |
1450kg |
1700kg |
2200kg |
800kg |
Size（mm） |
2900*1000*1390 |
3500*1000*1390 |
3900*1000*1390 |
2300*1000*1390 |
Warranty |
5 years |
5 years |
5 years |
5 years |
Hot Tip
All of our machines support customization, and installation of two filling heads at the same time, filling speed is faster. Send an inquiry for more information.
All of our machines support customization, and installation of two filling heads at the same time, filling speed is faster. Send an inquiry for more information.
Features
1.Horizontal single axis driven easy for maintenance & clean.
2.PLC+Touch screen for convenient opeartions.
3.If pouch not full open, no fill, no seal.

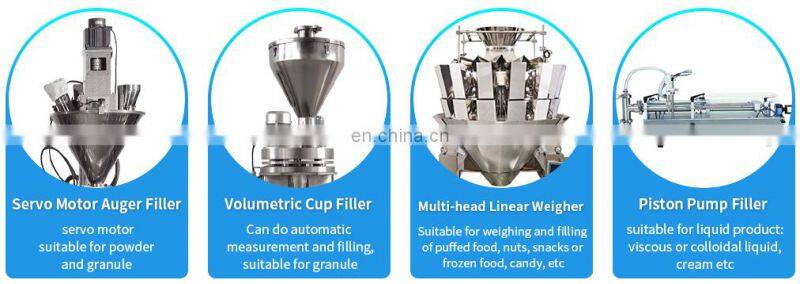

4.With combination scale, auger filler, pump filler for various product, accuracy weighing scale filler, combination accuracy weighing, collect hopper for increase speed.
5.Servo driven powder filling, dust collector for proof powder.
Product Details

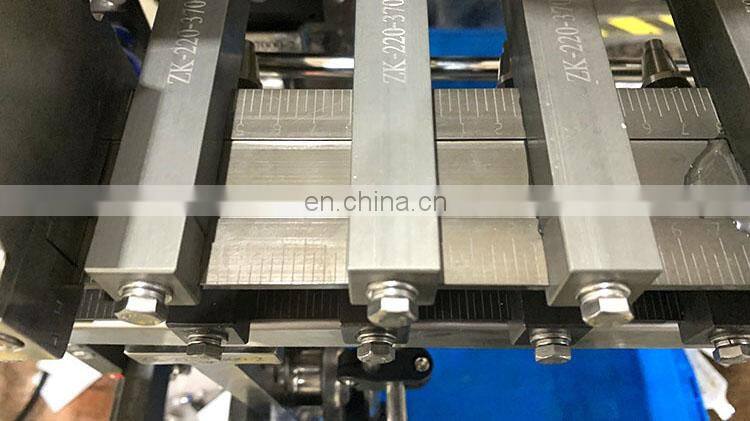

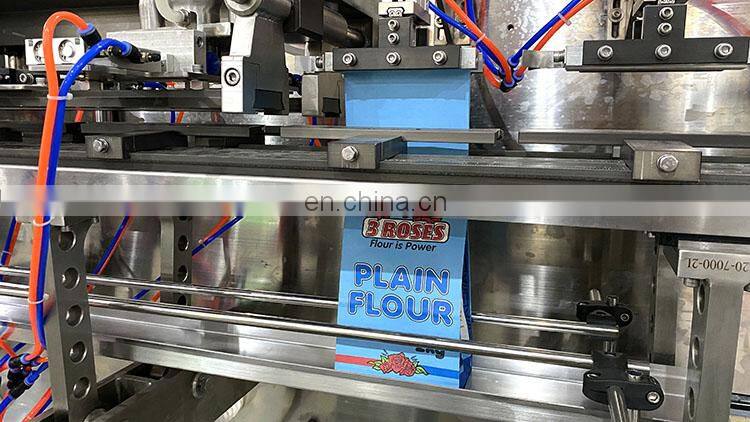

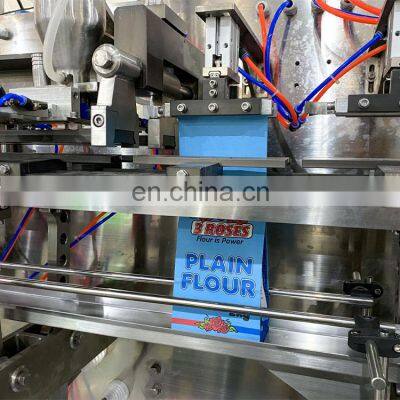

Scale
Each adjustment station has a scale, so that the size can be adjusted quickly when filling bags of different specifications.
Food grade 304 stainless steel and Pharmaceutical grade painting
The main parts are made of food grade 304 stainless steel, corrosion-resistant and rust free.
The painting of the whole rack reaches the drug grade.

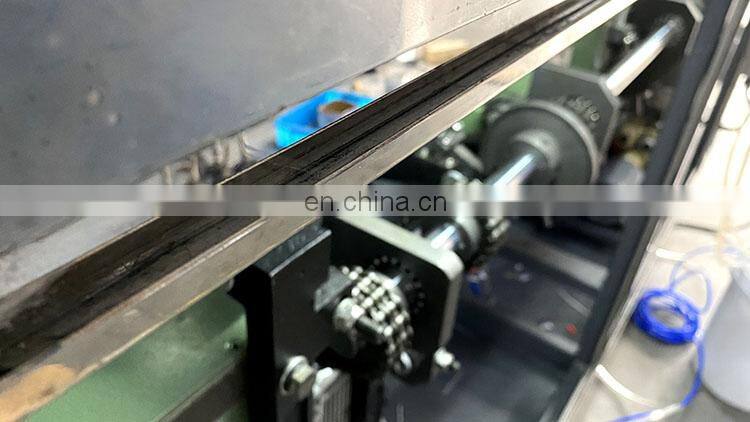

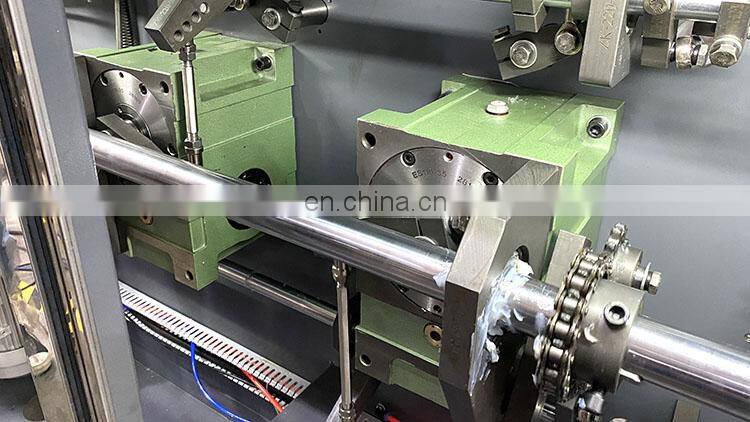

Dividing box
Indexing box running spindle, vibration only 3 microns, almost no vibration.
The noise is low when the machine is running at high speed.

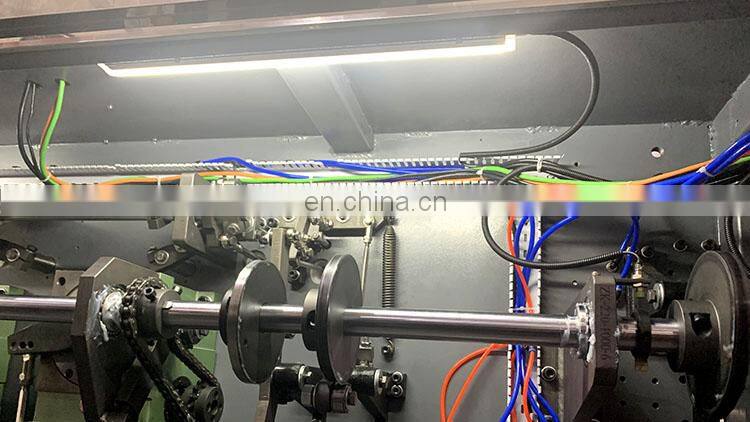

LED lights
There is an LED light on the back, so we can see it more clearly during maintenance.
Waterproof trough
There is a waterproof trough on the back, so we can wash the whole body directly with water.

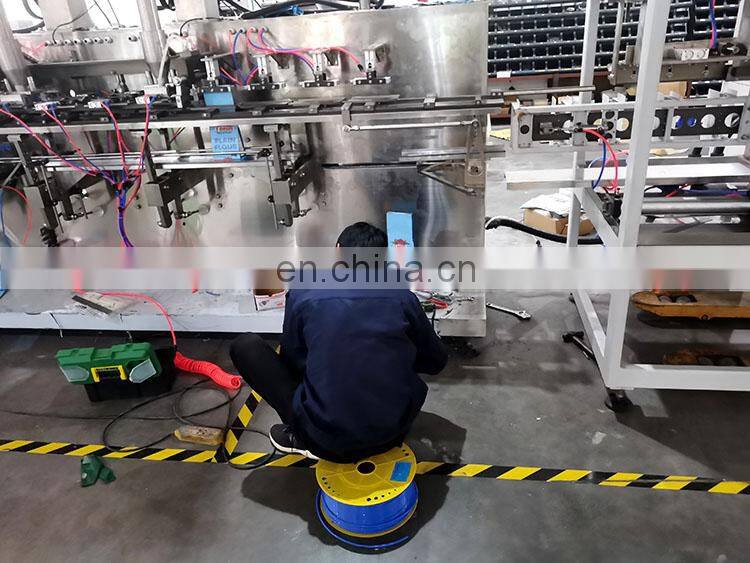

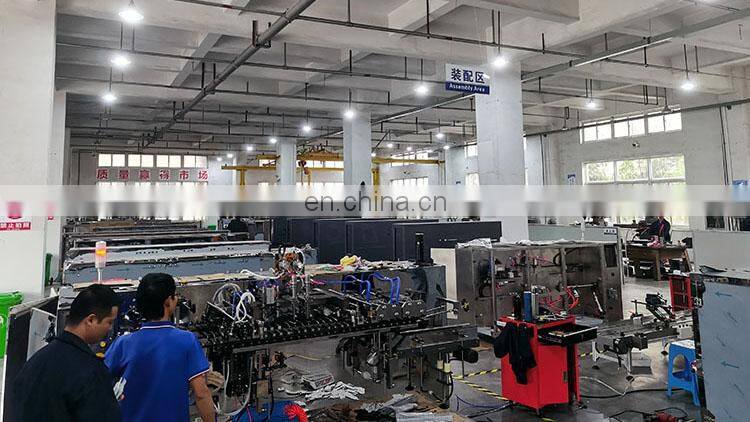

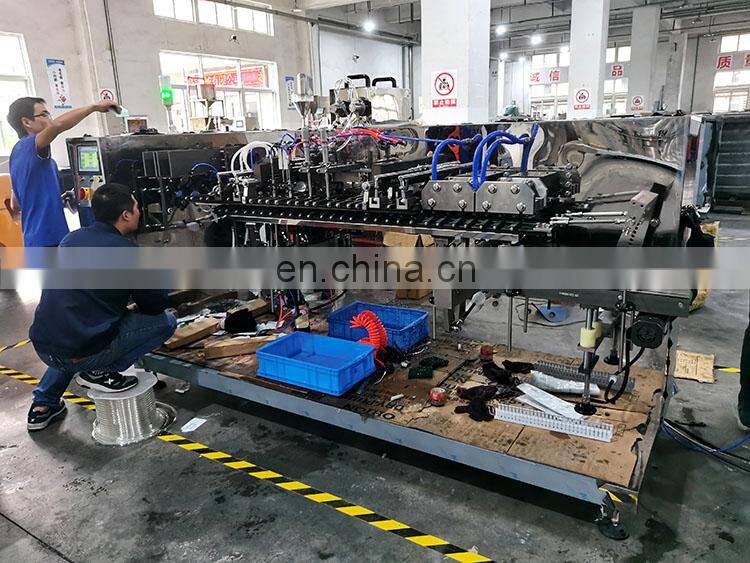

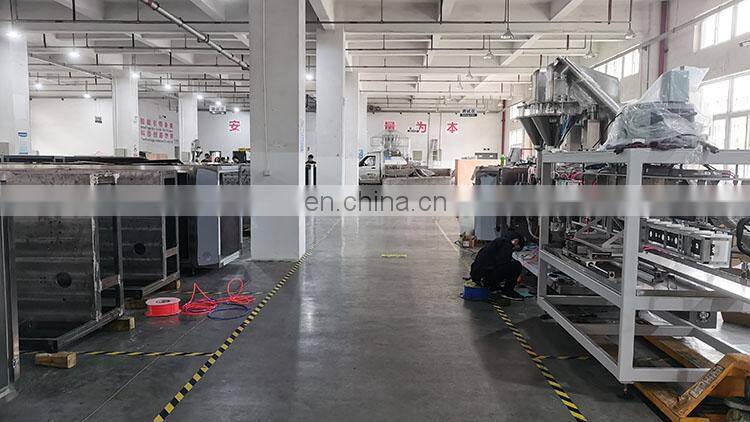

Processing Workshop
More Products
Company Profile
Q: How many different type of bags your machine can work with?
A: Four side seal Pouch, Three side seal pouch, back side seal pouch, Zipper Bag, Self Stand Up Pouch, Irregular Premade bags, etc.
Q: How many different product your machine can work with?
A: Our machine can work for all kinds of products that client want to pack into Premade Bags by changing Feeder. Such as, Liquid, Paste, Powder, Granular, Biscuits, Rice, pop corn, Sea food, cosmetic, etc.
Q: What we should do when we have different sizes of bags, do we need any change parts?
A: No need to buy any change parts. Before we ship the machine to client, we will commission the machine with all different product sample from client, then save the data as a receipt in PLC. When the client is going to use different sizes, just read out the data, then the machine will have the correct size to catch the bag.
Q: what is your annually production capacity for Rotary Packing Machine?
A: We ship More Than 20sets rotary packing machine every month, totally around 300sets per year. We are expanding our facility in 2020, aim for 500sets in 2021. Our clients include Pharmaceutical Factory, Food factory and Cosmetic factory.
Q: What is the warranty period for your machine?
A: 5 years free warranty.
