Automatic Meat Thermoforming Packaging Machine For Vacuum Packaging Of Sausage Snacks
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LTEC-24 Hot Sale Tablet Capsule Counting Machine Capsule With GMP StandardNegotiableMOQ: 1 -
Chewing Gum Pill Tablet Counting Filling MachineNegotiableMOQ: 1
-
DPP-Series Ampoule Aluminum Plastic Blister Packing MachineNegotiableMOQ: 1
-
DPP-Series China Supplier Ketchup Plastic Blister Packaging MachineNegotiableMOQ: 1
-
DPP-Series Automatic Condom Blister Packing Machine Price With CE CertificationNegotiableMOQ: 1
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Advantage
--- High production output
--- High production output
--- Reduce consumption of package material
--- Easy to operate
--- Save man power
--- Food more healthy
--- Totally customized
--- Totally customized
Products Description

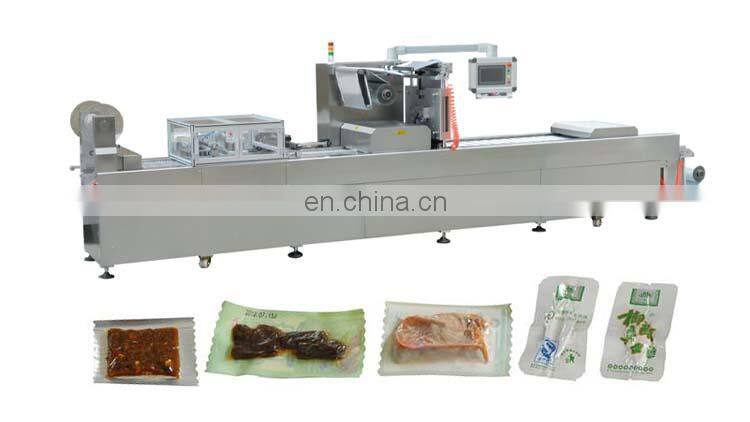

Full-automatic Thermoforming Packaging Line

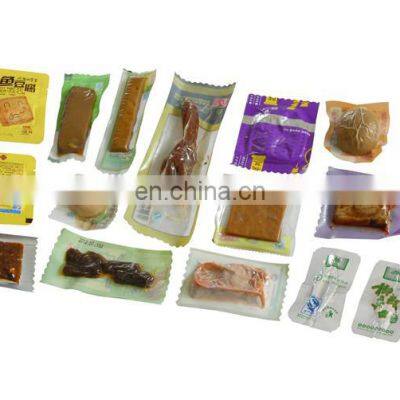

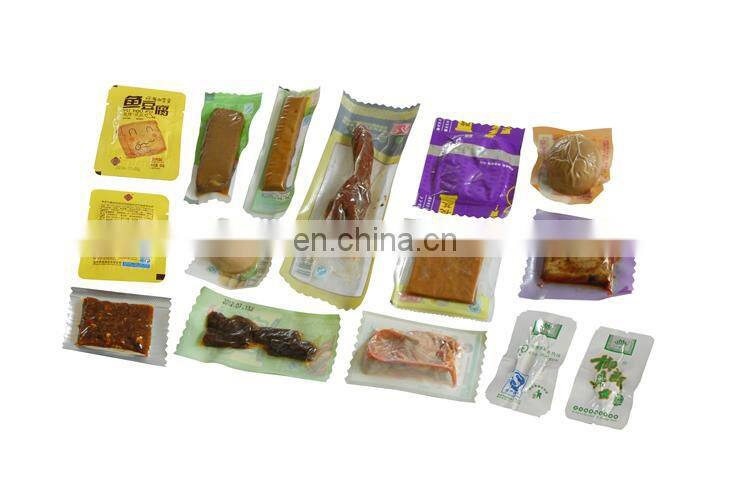

Suitable for various kinds of food, such as fish tofu,single piece of bean curd,double pieces of bean curd, areca-nut,spicy
food,meat,seafood,fruits and vegetables,pickles,chilled meat, and medicine products,hardware components,medical equipment etc.
food,meat,seafood,fruits and vegetables,pickles,chilled meat, and medicine products,hardware components,medical equipment etc.
Technical Parameters
Model | LTRC-420 | LTRC-520 | |
Width of Top Film | 400 | 500mm | |
Width of Bottom Film | 423 | 523mm | |
Vacuum Degree | ≤200Pa | ≤200Pa | |
Compressed Air | ≥0.6Mpa | ≥0.6Mpa | |
Capacity | 4-6 cycle/min | 4-6 cycle/min | |
Cooling Water | ≥0.15Mpa | ≥0.15Mpa | |
Voltage | 380V/50HZ | 380V/50HZ | |
Total Power | 14~20KW | 14~20KW | |
Dimension | 6850*1130*2000mm | 6850*1130*2000mm | |
Machine Weight | 2250kg | 3000kg | |
Warranty | 5 year | ||
Product Details

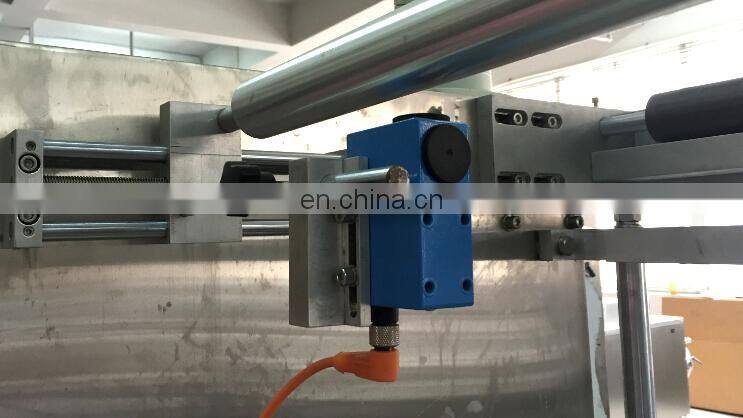

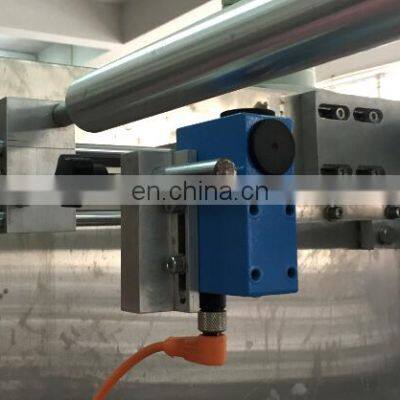

01. Photoelectric detection film
Photoelectric version use magnetic powder computer feedback automatic stretching, punctuation length can be controlled within
0.5mm, without adjustment, automatic calibration punctuation, the version time can be completed within 5 minutes, easy operation.
Equipped with (German Ske) light control, correction; equipped with PLC programs.
0.5mm, without adjustment, automatic calibration punctuation, the version time can be completed within 5 minutes, easy operation.
Equipped with (German Ske) light control, correction; equipped with PLC programs.
02. Upper film Positioning

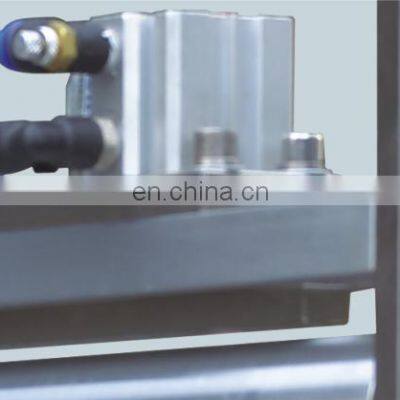

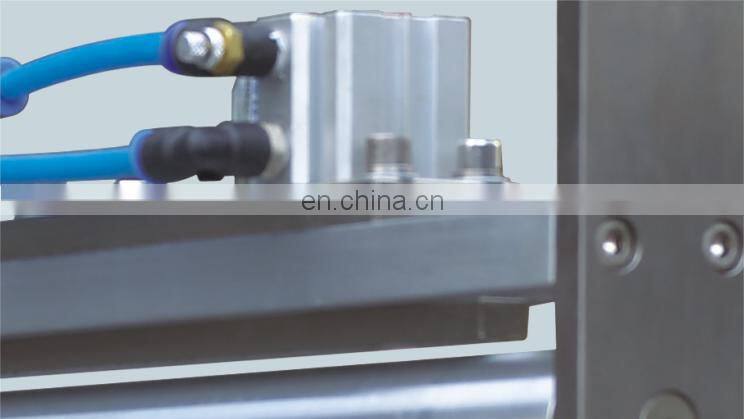

Use pneumatic left and right correction, to ensure that not shifting the location, sealing edge will not appear white line.

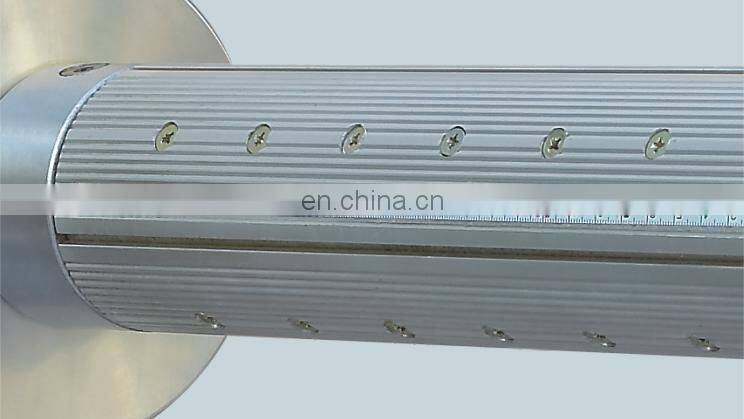

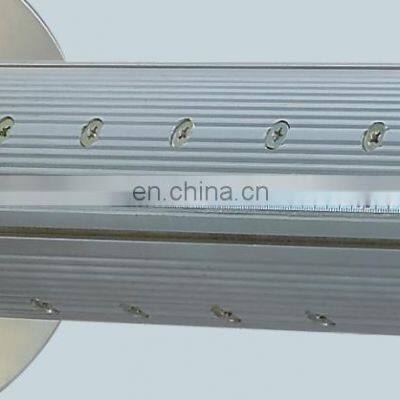

03. Inflatable film Shaft
04. Heat Sealing

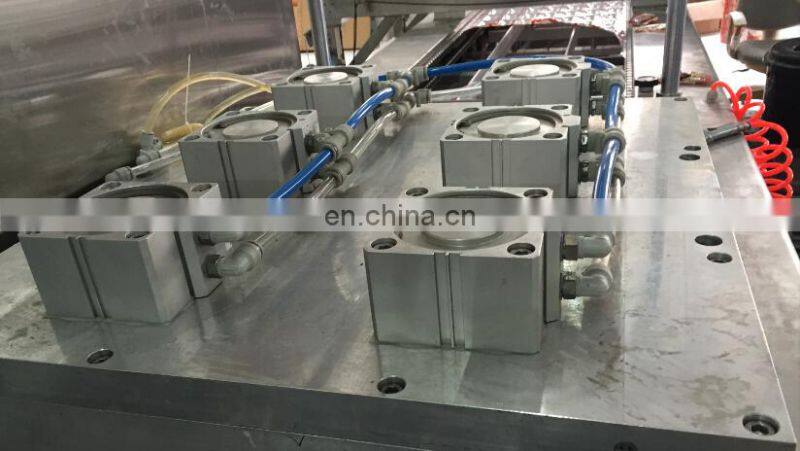

Use ∮ 100mm cylinder to push the four-way lever swing arm, drive forming, heat sealing device.
Increase the intensity for making the mold steady in up and down position, balance in left and right position.
05. Moving printing Device
06. Entirety Silica Gel Heat Sealing
Heat sealing cavity use high-quality alloy aluminum, dual-channel vacuum, high vacuum strength and degree. Use ∮ 100mm cylinder to push the seal, make sealing clear and solid. Equipped with imported whole silicone, small size, strength, high temperature.
Features
1. Japan Yaskawa servo motor, HMI, PLC control etc. high speed and high precision.
2.Photoelectric tracking system, ensure alignment position.
3.Easy to change the mold, suit for several size products, and the mold with cooling system.
4.Coding system,Ink jet printer etc for option.
5.Vacuum packaging, or Nitrogen filling or mixed gas packaging.
6.German imported vacuum pump,high vacuum degree, stable, durable and reliable
7.Imported open-ended chain, servo motor drive chain, suit for kind of Soft film, semi-hard film and hard film
8.Automatic wasted film recycling system
9.Advanced cutting, slitting systems, and easy to change.
More Products
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bagpackaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
- LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
How to save packing material on Blister Packing Machine:
Q:What is difference between PLC Control and Real PLC Control?
A:PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.
Q:How to change mould (Changing Parts)?
A:Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.
Q:When the machine stops, the mould is still hot; will it heat PVC and destroy Aluminum?
A:Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.
Q:What is the Step Motor using for?
A:We must know one thing, if you want the machine run and the material goes ahead. There must be a motor for towing. Normally saying, there are two types motor for towing the material. One is Pneumatic Clip (Air Clip), but when the machine stop the clip will loose and materials go back, you need to adjust the machine again when restart. So we adopt Step Motor, It will be never loose. And it makes the towing length unlimited if your forming mould is long enough.
Q:The machine always run automatically, but when it runs in a wrong length, what should we do?
A:According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.
Q:If the machine broken in a problem we can’t work out, what should I do?
A:At first, we have will send a video how to solve.
Second, We have six Technicians get Passport ready to travel around the world to adjust the machine for our customers.
Q:What is difference between PLC Control and Real PLC Control?
A:PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.
Q:How to change mould (Changing Parts)?
A:Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.
Q:When the machine stops, the mould is still hot; will it heat PVC and destroy Aluminum?
A:Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.
Q:What is the Step Motor using for?
A:We must know one thing, if you want the machine run and the material goes ahead. There must be a motor for towing. Normally saying, there are two types motor for towing the material. One is Pneumatic Clip (Air Clip), but when the machine stop the clip will loose and materials go back, you need to adjust the machine again when restart. So we adopt Step Motor, It will be never loose. And it makes the towing length unlimited if your forming mould is long enough.
Q:The machine always run automatically, but when it runs in a wrong length, what should we do?
A:According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.
Q:If the machine broken in a problem we can’t work out, what should I do?
A:At first, we have will send a video how to solve.
Second, We have six Technicians get Passport ready to travel around the world to adjust the machine for our customers.
