Semi Automatic Paste Liquor Honey Juice Beverage Liquid Food Soy Sauce Quantitative Can Filling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Mouthwash Makeup Remover Edible Oil Shampoo Liquid Filling MachineNegotiableMOQ: 1 -
Semi-Automatic Pneumatic Liquor Beverage Laundry Liquid Quantitative Dispensing Edible Oil Liquid Filling MachineNegotiableMOQ: 1
-
Automatic Skin Care Products Aluminum Plastic Tube Hand Cream Cleanser Gel Toothpaste Tube Filling And Sealing MachineNegotiableMOQ: 1
-
Automatic Toothpaste Hand Cream Paste Heat Sealing Tail Marking Integrated Hose Tube Filling MachineNegotiableMOQ: 1
-
Five-Year Warranty Automatic Cosmetic Skin Care Products Facial Cleanser Toothpaste Tube Filling And Sealing MachineNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.

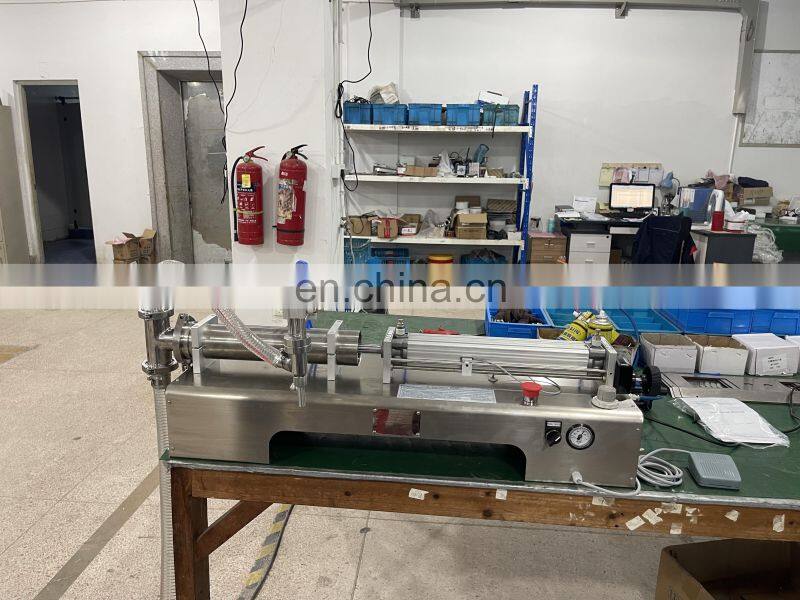

SEM-P Semi-automatic paste-liquid dual-purpose filling machine
SEM-P Semi-automatic Paste-Liquid Dual-Purpose Filling Machine is a semi-automatic quantitative filling machine for paste and liquid.It is suitable for quantitative filling of liquid, paste and other substances in chemical, food daily chemical, pharmaceutical,
pasticide, cosmetics lubricant and other industries. Such as Honey, Chili Sauce, Tomato Sauce, Toothpaste, Glass Cenent, Oil,Juice, Soda, Milk, Water, etc.
Technical Parameters

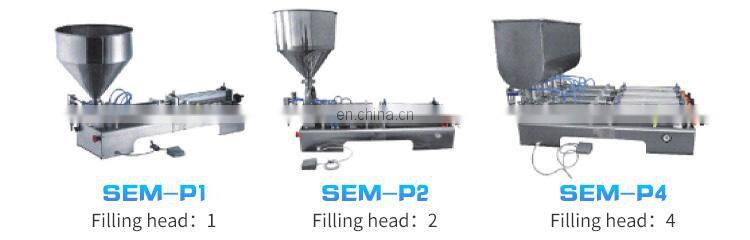

Model | SEM-P1 | SEM-P2 | SEM-P4 | ||
Filling head | 1 | 2 | 4 | ||
Output Max | 40 bottles/min | 80 bottles/min | 160 bottles/min | ||
Filling accuracy | ±1% | ||||
Filling range | 5-100ml, 23-300ml, 50-500ml, 100-1000ml, 300-2000ml, 500-3000ml, 1000-5000ml | ||||
Hopper | 30L | 50L | 100L | ||
Power supply | 220/110V 50/60HZ | ||||
Air pressure | 0.6-0.8mpa | ||||
Power | 50W | 100W | 200W | ||
Dimensions | 1310*380*380mm | 1310*550*380mm | 1310*1010*420mm | ||
Weight | 35kg | 55kg | 90kg | ||
Product Details
-01
The high standrd Adopt Japan SMC pneumatic components and excellent imported camponents.
-02
Material contact parts can be customized 316Lstainless steel material, so as to obtain higher corrosion resistance performance and
GMP requirements.
GMP requirements.
-03
The piston can be selected with PTFE material(without 0-ring), so as toobtain stronger wear resistance and higher corrosion
resistance.
resistance.
-04
Also can be chosen fully pneumatic model, suitable for explosion-proof requirement or wet envirenments.
-05
It is easy to disassemble, assemble and clean, and can be operated auto manually funcition. It can be installed on vertical
packaging machine. horizontal machine and stretching film packaging machine and filling lines.
packaging machine. horizontal machine and stretching film packaging machine and filling lines.
-06
Unique quiet work design, no trouble of air "click click" sound , beautifying the working environment.
More Products
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Warm hint:
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Q1: How many different liquid filling machine you have?
Q1: How many different liquid filling machine you have?
A: according to Machine filling style, we have linear type and Rotary Type.
Q2: When did your factory start manufacturing liquid filling machine?
A: Since Year 2005 we had started manufacturing Liquid
Filling Line. We are focused on Pharmaceutical Field, Food field and Cosmetics Field. Our Clients includes Japanese Sysmex, US Southern Pharma, Qarshie Industry, Abbott Group, Victoria's Secret, etc.
Filling Line. We are focused on Pharmaceutical Field, Food field and Cosmetics Field. Our Clients includes Japanese Sysmex, US Southern Pharma, Qarshie Industry, Abbott Group, Victoria's Secret, etc.
Q3: Does one liquid filling machine can work for all kinds viscosity of liquid or paste?
A: Theoretically yes, by changing parts and filling pump we can achieve this. But normally this option is only recommended for our client who is doing R&D, but not production purpose. So we suggest client to use specific pump for specific material for achieving higher filling accuracy.
Q4: Why there are so many liquid filler looks same, but in huge difference on price?
A: Because different manufacturers are using different method to manufacture the machine which will effect
the filling accuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may use Pneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.
the filling accuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may use Pneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.
Q5: We have big filling range for our bottle, from 100-2000ml, can it work on the same machine?
A: Yes, these filling range is absolutely ok for our either Linear type machine or rotary type machine, we can easily achieve.
Q6: How many years for warranty?
A: all of our machines comes with 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A:Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
