Five-Year Warranty Automatic Health Product Maca Disinfectant Liquid Filling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Certified Automatic Toilet Cleaning Liquid Detergent Daily Chemical Liquid Filling MachineNegotiableMOQ: 1 -
CE Certified Automatic Honey Syrup Viscous Peanut Butter Chili Sauce Liquid Filling MachineNegotiableMOQ: 1
-
Automatic 4-Head 6-Head Red Wine Liquid Filling And Capping MachineNegotiableMOQ: 1
-
Automatic Glass Water Liquor Edible Oil Shampoo Oral Liquid Mouthwash Liquid Filling MachineNegotiableMOQ: 1
-
Automatic In-Line Ketchup Shampoo Shower Gel Filling And Capping Machine Production LineNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.

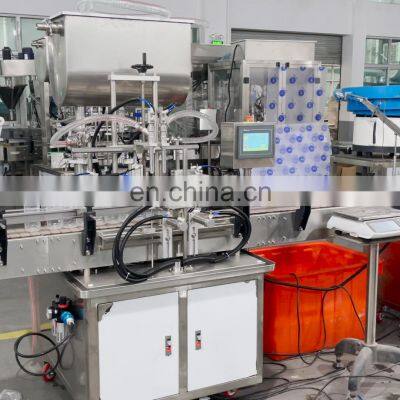

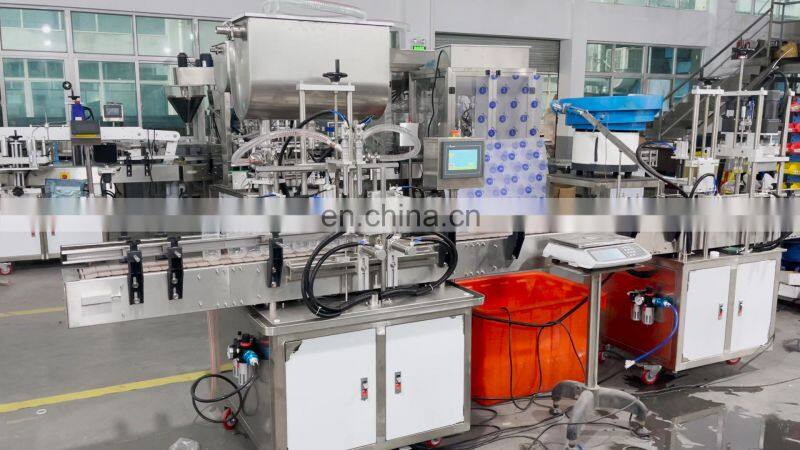

LTXG-Eco Series Automatic Pneumatic Liquid Filling Capping Machine
LTXG-Eco Series Liquid Filling Capping Machine is specially designed and manufactured for small scale liquid filling manufacturing factory. This machine is complete Pneumatic Filling System with simple and easy adjustment. It is widely used in Food and cosmetic and agriculture industry for water, waterlike liquid, cream, oil and ointment filling.
Note: Different Material May requires different filling Pump, please tell before you order the machine.
Filling liquid: water, beverage, sauce, cream, paste, oil, etc
Applicable Bottle Shape: Round, Flat, Oval, Irregular, Square, Jar, Can, etc.
Bottle Material: HDPE, Aluminum, Plastic, Glass, etc.
Features
1.Pneumatic Filling System: Simple and easy clean .
2.All Material contact parts are stainless steel 304. SS316L is optional.
3.Touch Screen with PLC System .
4.Wide Filling range:50-5000 ml .
5.Low cost with high production capacity.
3.Touch Screen with PLC System .
4.Wide Filling range:50-5000 ml .
5.Low cost with high production capacity.
Technical Parameters
Model Name | LTXG-2Eco | LTXG-4Eco | LTXG-8Eco | LTXG-12Eco | LTXG-16Eco | ||||
Filling Nozzle | 2 | 4 | 8 | 12 | 16 | ||||
Production Capacity | 20 | 30 | 50 | 60 | 70 | ||||
Applicable Filling Material | Cream, Ointment, Water, Juice, Water-Like Liquid, Oil, Paste, etc. ***Note: Different Material May requires different filling Pump, please tell before you order the machine | ||||||||
Filling Accuracy | 200ml: +/-1%, 200-5000ml: +/-0.5% | ||||||||
Filling Range | 50-5000ml | ||||||||
Power Supply (without heating) | 1Kw | 2kw | 2.5kw | 3kw | 5kw | ||||
Power Supply | 380v 50hz Three phase | ||||||||
Air Pressure | 0.6Mpa | ||||||||
Applicable Bottle Shape | Round, Flat, Oval, Irregular, Square, Jar, Can, etc. | ||||||||
Bottle Material | HDPE, Aluminum, Plastic, Glass, etc. | ||||||||
Dimension (mm) | 2000*900*1750 | 2000*1000*1950 | 3500*1100*1950 | 4500*1100*1950 | 5000*1100*1950 | ||||
Weight | 200kg | 400kg | 600kg | 800kg | 1000kg | ||||
Product Details

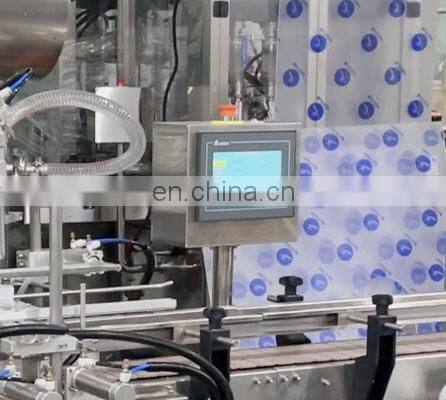

-01
With touch screen control panel, it is more convenient to adjust different kinds of parameter.The visual working data makes the
adjustment more accurate.
adjustment more accurate.

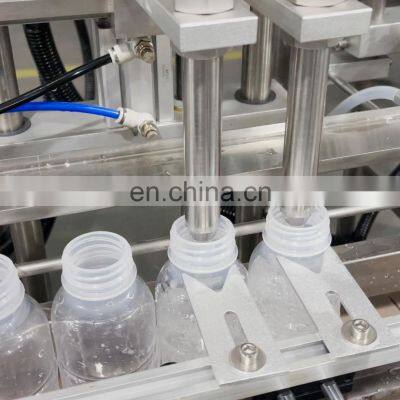

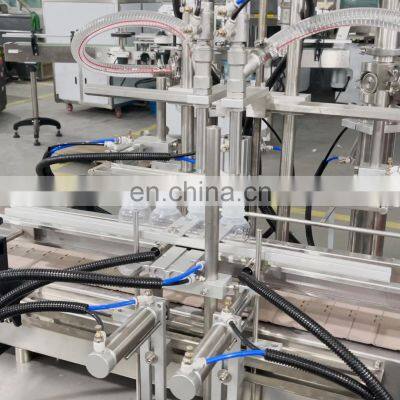

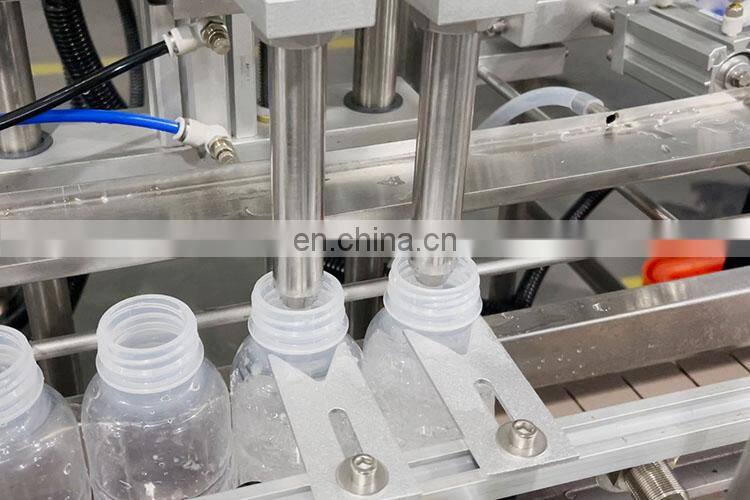

-02
1. Filling head: 2,4,6,8,10,12 (Optional)
2. Filling head diameter :6 mm, 8 mm, 10 mm, 12 mm,14 mm, 20 mm(other size can be customized)
3. Anti-drip filling nozzle (optional)

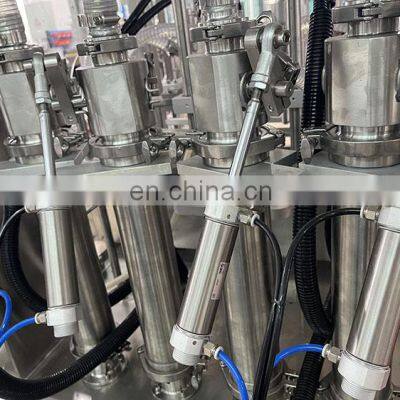

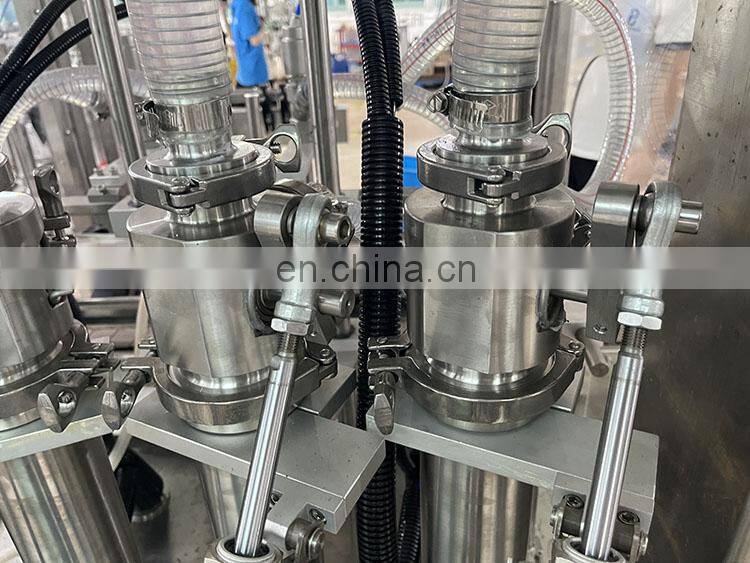

-03
1.All Material contact parts are stainless steel 304. SS316L is optional.
2.Pneumatic Filling System: Simple and easy clean.
-04
The filling machine can be connected with othermachines to form a filling production line, suchas capping machine, labeling
machine, bottlefeeder or bottle collector, etc
machine, bottlefeeder or bottle collector, etc
More Products
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Warm hint:
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Q1: How many different liquid filling machine you have?
Q1: How many different liquid filling machine you have?
A: according to Machine filling style, we have linear type and Rotary Type.
Q2: When did your factory start manufacturing liquid filling machine?
A: Since Year 2005 we had started manufacturing Liquid
Filling Line. We are focused on Pharmaceutical Field, Food field and Cosmetics Field. Our Clients includes Japanese Sysmex, US Southern Pharma, Qarshie Industry, Abbott Group, Victoria's Secret, etc.
Filling Line. We are focused on Pharmaceutical Field, Food field and Cosmetics Field. Our Clients includes Japanese Sysmex, US Southern Pharma, Qarshie Industry, Abbott Group, Victoria's Secret, etc.
Q3: Does one liquid filling machine can work for all kinds viscosity of liquid or paste?
A: Theoretically yes, by changing parts and filling pump we can achieve this. But normally this option is only recommended for our client who is doing R&D, but not production purpose. So we suggest client to use specific pump for specific material for achieving higher filling accuracy.
Q4: Why there are so many liquid filler looks same, but in huge difference on price?
A: Because different manufacturers are using different method to manufacture the machine which will effect
the filling accuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may use Pneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.
the filling accuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may use Pneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.
Q5: We have big filling range for our bottle, from 100-2000ml, can it work on the same machine?
A: Yes, these filling range is absolutely ok for our either Linear type machine or rotary type machine, we can easily achieve.
Q6: How many years for warranty?
A: all of our machines comes with 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A:Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
