Product Description
Water nut type sugar coating machine is mainly used to press shaped slice, pill and the coating of granules in pharmaceutical industry, and also used for candy manufacturing or coating in foodstuff industry. Sugarcoated tablets after polishing coating have polished surface, which can prevent oxidation, damping or volatilization, in addition, it can envelop bad smell and enable the drug to be conveniently identified and slow dissolution in the intestines and stomach.
Technical Parameters
Model |
LTBY-1000 |
LTBY-800 |
LTBY-400 |
||
Boiler diameter mm |
1000 |
800 |
400 |
||
Production capacity (Kg/time) |
50~70 |
30~50 |
2-5 |
||
Clockwise angle α (adjustable) |
15˚~45˚ |
15˚~45˚ |
15˚~45˚ |
||
Boiler rotating speed |
28 |
32 |
46 |
||
Main motor |
1.1KW |
750W |
370W |
||
Fan motor |
250W |
40W |
|||
Electric oven wire power (Kw) |
1×2 |
1×2 |
1.5 |
||
Hot air outlet temperature(℃) |
50~60 |
||||
Machine weight (kg) |
250 |
230 |
120 |
||
Product Details

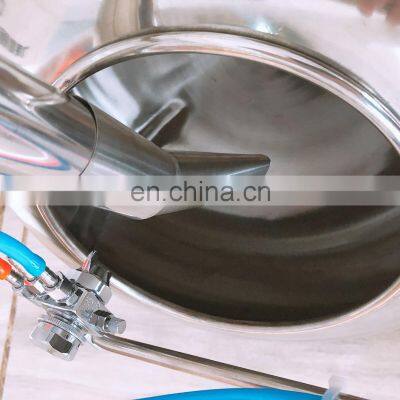

Coating Pan:
Stainless Steel 304 Material,Water Chestnut Style Coating Pan.
Internal Heating:
Stainless Steel 304 Material,Water Chestnut Style Coating Pan.
External Heating:
The Device Provides Heat By Heat Transfer Through Outside,To Keep The Main Working Area Steady Temperature.

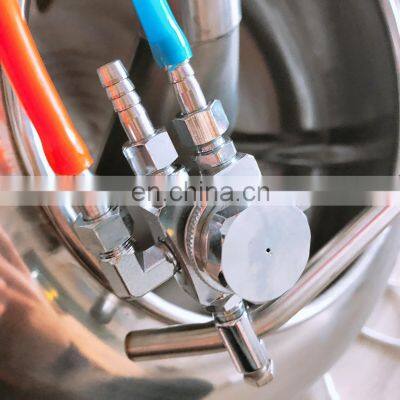

Separate Sprayer:（Optional）
The Bucket Is Used To Storage The Coating Liquid.Than The Device Atomize The Liquid,And Spray It Evenly To The Raw Material.
Sensor:
Equipped With Temperature Sensor, Which Is Convenient To Monitor The Temperature Of The Coating Pan.
Wide Application
Widely Used in-Food Industry
With filling
Chocolate coat
Color film coat
Widely Used in-Pharmaceutical Industry
Tablets
Pills
Seed Coating in Agriculture Industry
The Final Product Depend On The Formula And Handicraft.
