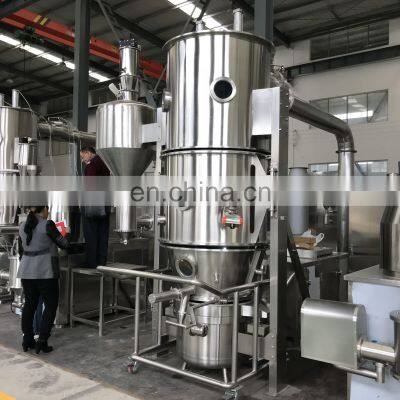

FL-Series Factory Supply High Performance Vertical Fluid Bed Dryer And Coater Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance Vertical Glucose Egg Milk Powder Fluid Bed Coating MachineNegotiableMOQ: 1 -
High Performance Vertical Spray Cheese Protein Powder Desiccated Coconut Fluid Bed Coating Drying MachineNegotiableMOQ: 1
-
FL-Series Vertical Milk Juice Powder Pharmacy Granules Fluid Bed Dryer Coating MachineNegotiableMOQ: 1
-
Factory Supply High Performance Vertical Ganoderma Ginkgo Curcumin Powder Drug Fluid Bed PelletizerNegotiableMOQ: 1
-
High Efficient ZP-Series Rotary Candy Pill Tablet Press Making MachineNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information, please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales
manager can contact you quickly.
Product Description
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the
same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains
adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out
continuously. Finally it forms ideal, uniform and porous granules.
same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains
adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out
continuously. Finally it forms ideal, uniform and porous granules.
Technical Parameter
Model |
200 |
Volume (L) |
670 |
Amount to be treated (kg/per time) |
100/300 |
Power of fan (kw) |
30 |
Consume of steam 0.4MPa(kg/h) |
282 |
Consume of compressed air (m3/min) |
1.1 |
Noise,dB (A) |
(fan is installed separately) ≤75 |
Main machine height (m) |
2.34×1.7×3.8 |
Product Details
By Using Powder Granulation,
To Improve The Liquidity And Thinner Dust.
To Adopt Antistatic Filtering Mediums,
To Ensure Safe Operation.
Caking Agent Atomizer Adopts Multi-Fluid Spray Gun To Maintain Uniform Spray Particles An To Increase The Rate Of Qualified Products Greatly.
No Dead-Corner Of Equipment; It Is Easy And
Rapid Of Feeding Or Discharging Materials And Clean Of Washing To Satisfy The GMP Standard.
Features
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Final Product
Customer Acceptance
Related Products
Company Profile
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
