Low Price FG Vertical Fluidized Bed Dryer for Milk Powder

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

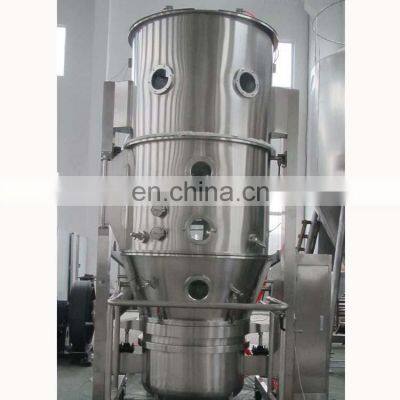

Low Price FG Vertical Fluidized Bed Dryer for milk powder

1. The fluidized bed has a circular structure to avoid dead ends; 2. The equipment has a wide processing range and can adapt to different materials, and the drying effect is remarkable; 3. It has a wider fluidization range than the traditional horizontal XF boiling dryer; 4. can handle some particles that are too wet, sticky or widely distributed in the particle size range; 5. The equipment stirring device in the bed avoids the agglomeration formed by the agglomeration and drying process of the wet materials; 6. can handle materials with low temperature, but high final moisture requirements 7. The whole equipment is easy to operate, easy to disassemble, easy to clean, and meets the requirements of “GMP”; 8. The feeding method adopts the automatic suction mode to reduce the trouble of manual feeding; 9. The material is discharged by auger, which is convenient for operation and reduces the artificial strength. 10. Compared with the traditional two-stage CPE drying, the round bottom stirring fluidized bed can meet the requirements as long as one equipment: A. Save the floor area; B. Saving investment cost and manual operation cost of equipment; C. Reduced exhaust emissions;

Specification

spec item			unit	3	5	30	60	120	200
container of raw material	dim	mm	300	400	700	1000	1200	1400
container of raw material		volume	L	12	22	100	220	420	670
production capacity	Min	kg/batch	1.5	4	15	30	80	100
production capacity		Max	kg/batch	4	6	36	72	140	240
consume of steam			kg/batch	12	23	70	140	211	282
amount of compressed air			m3/min	0.3	0.3	0.3	0.6	0.6	0.9
power of fan			kw	2.2	4	5.5	11	18.5	22
temperature			°c	Adjustable from ambient to 120
collection rate			%	>99
time of operation			min	15~30(depends on material)
content of final moisture			%	~0.2( depends on material)
noise			dB	75
height of main machine			mm	2100	2300	2500	3000	3300	3800

Packing & Delivery

Company Profile

Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pharmaceuticals, chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country. Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products. Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.

FAQ

Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
