LPG-3000 High Speed Centrifugal Atomizer Mechanical Atomizer for Spray Dryer

LPG-3000 High Speed Centrifugal Atomizer Mechanical Atomizer for Spray Dryer photo-1

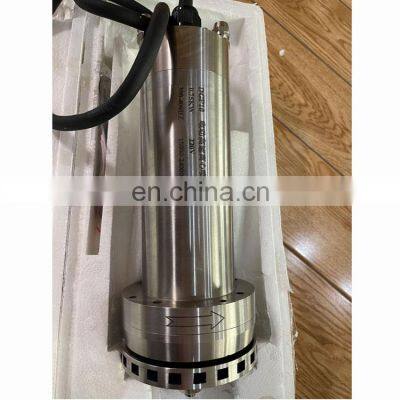

LPG-3000 High Speed Centrifugal Atomizer Mechanical Atomizer for Spray Dryer photo-2
LPG-3000 High Speed Centrifugal Atomizer Mechanical Atomizer for Spray Dryer photo-3
LPG-3000 High Speed Centrifugal Atomizer Mechanical Atomizer for Spray Dryer photo-4

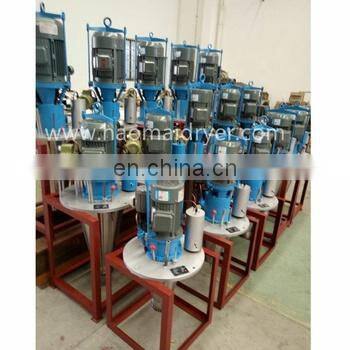

LPG-3000 High Speed Centrifugal Atomizer Mechanical Atomizer for Spray Dryer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2008
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
FEATURES
The atomizer is equipped with oil heat exchanger and oil filter. Oil pressure transmitter, oil temperature transmitter, oil flow switch, oil level switch and spindle vibration measurement system can be configured according to the customer’s needs, so that the equipment can work continuously for a long time under harsh conditions.
TECHNICAL PARAMETER OF LPG-3000
ATOMIZER Feeding Capacity: 2000-3000kg Motor Power: 22kw Oil Pump Power: 0.37kw Cooling Pump Power: 0.25kw Oil Pressure Transmitter: 4-20MA, 0-16MPA Oil Temperature Transmitter: 0-100℃ Rotary Speed: 14000-16000rpm/min
Specification
Model
Feeding Capacity    ( KG / H)
Motor power(KW)
Oil Pump Power  (KW)
Rotary Speed (rpm/min)
Diameter of Atomizing Disk (MM)
LPG-5
5-10
N/A
N/A
28000
50
LPG-25
25-50
1.5
0.37
25000
80
LPG-50
50-100
2.2
0.37
18300
120
LPG-100
100-150
2.2
0.37
18300
120
LPG-150
150-300
4
0.37
15500
150
LPG-300
300-500
5.5
0.37
15500
150
LPG-500
500-1000
7.5
0.37
15000
150
LPG-1000
1000-2000
11
0.37
13500
180
LPG-2000
2000-3000
11/15/22
0.37x2
13500
180
LPG-3000
3000-5000
37/45/55
0.37x2
11000
210/220
PS: We provide customized design models according to the customers request. We can adjust theparameters such as rotary speed, size and quantity of atomizing disk, power voltage, and et
