Best Sale Xsg Series High-speed Spin Flash Drier Glyphosate for Pharmaceutical Industry
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2008
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Sale Xsg Series High-speed Cassava Starch Spin Flash Dryer for Pharmaceutical IndustryNegotiableMOQ: 1 -
Best Sale High Efficient Chemical Industrial High Performance Flash Dryer Xsg Spin DryerNegotiableMOQ: 1
-
Best Sale Customized Xsg Series High-speed Copper Sulfate Oxide Spin Flash Dryer for Pharmaceutical IndustryNegotiableMOQ: 1
-
Best Sale Revolving Spin Flash Dryer Machine for Copper SulphateNegotiableMOQ: 1
-
Low Price XSG/XZG High Efficiency Airflow Type Spin Flash Dryer/Flash Dryer for DSD AcidNegotiableMOQ: 1
Product Description
DESCRIPTION
XSG/XZG Series Spin Flash Dryer is continuous drying equipment specially designed for shaped cake, cream paste, and paste slurry materials. The clean heat medium goes into the drying room from the tangent direction and creates a strong rotary vortex air current when it’s in motion with the stirrer. The wet material is added to the drying room in a fixed quantity, and it will be crushed and dry under high speed stirring action. The top of the drying room has particle size classification, the big particles will be stopped by the classifier and the fine powder will be discharged from the center of the ring and collected by the cyclone separator. The big particles will return to the drying room and continue to be crushed and dry.
XSG/XZG Series Spin Flash Dryer is continuous drying equipment specially designed for shaped cake, cream paste, and paste slurry materials. The clean heat medium goes into the drying room from the tangent direction and creates a strong rotary vortex air current when it’s in motion with the stirrer. The wet material is added to the drying room in a fixed quantity, and it will be crushed and dry under high speed stirring action. The top of the drying room has particle size classification, the big particles will be stopped by the classifier and the fine powder will be discharged from the center of the ring and collected by the cyclone separator. The big particles will return to the drying room and continue to be crushed and dry.
WORKING PRINCIPLE
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind
field is formed. The paste state materials enter into the drier through the screw feeder. Under the powerful function of the
stirring vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force.
The cake state materials will be smashed and contact the hot air fully and the materials are heated and dried. The dehydrated materials will go up with the hot-air flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the center of the machine and the material will be collected by cyclone separator of dust collector. The wet or big particles will be swing towards to the wall by the centrifugal force function and the materials will be crushed again after fall down to the bottom.
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind
field is formed. The paste state materials enter into the drier through the screw feeder. Under the powerful function of the
stirring vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force.
The cake state materials will be smashed and contact the hot air fully and the materials are heated and dried. The dehydrated materials will go up with the hot-air flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the center of the machine and the material will be collected by cyclone separator of dust collector. The wet or big particles will be swing towards to the wall by the centrifugal force function and the materials will be crushed again after fall down to the bottom.
FEATURES
(1) The raw material is processed by cutting, shearing, blowing, floating, and rotating, then become granulated shape and separated greatly; the relative velocity between solid phase and gas phase is great, this strengthens the process of heating exchange.
(2) Design with compact structure and required small occupied area, and the machine is easy to control and maintain.
(3) The hot air enters into the bottom of machine and creates strong rotating airflow; it can wash out material that sticking on the inside surface.
(4) The high temperature area is at the bottom of the machine, the heat sensitive raw material will not directly contact with heating surface. As a result, carbonization and color change problems can be solved.
(5) The dryer is running under negative or micro negative pressure, there is no need other crushing machine to crush raw material,and the circumstance pollution will not occur.
(6) A segmenting ring and a rotational flow piece are equipped in the upper drying room in order to control granulated size and final moisture to satisfy required moisture containing rate and granulation.
Technical Parameters
XSG series Model High speed Rotary Flash Dryer For Soybean Protein has a wide application scope, it can be used for drying in fire retardant, molecular sieve, rubber and plastic assistance, pesticide, pigment, dyestuff, fine chemicals, feedstuff, pharmaceutical and part intermediate industries.
Model Item |
XSG-2 |
XSG-4 |
XSG-6 |
XSG-8 |
XSG-10 |
XSG-12 |
XSG-16 |
XSG-20 |
Tower Diameter (mm) |
200 |
400 |
600 |
800 |
1000 |
1200 |
1600 |
2000 |
Air Volume (M3/h) |
350-500 |
1150-2000 |
2450-4500 |
4450-7550 |
7000-12500 |
10000-20000 |
18000-36000 |
28200-56500 |
Water Evaporation (kg/h) |
12-17 |
40-70 |
80-150 |
150-250 |
230-425 |
300-600 |
600-1000 |
1000-1500 |
Total Power (kw) |
10 |
20 |
40 |
65 |
85 |
105 |
150 |
230 |
Max. Equipment Height (m) |
4.0 |
4.8 |
5.8 |
6.5 |
7.1 |
7.8 |
8.8 |
10.1 |
Occupied Area (m2) |
15 |
20 |
28 |
35 |
40 |
52 |
80 |
150 |

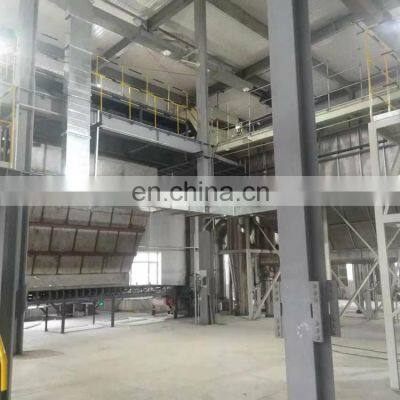

Installation Picture
About HAOMAI
Team&Certifications
Packing & Delivery
FAQ
Q: Where is your factory?
A: We are located in Changzhou City which about 150km away from Shanghai.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: What is the payment term?
A: Our regular payment term is: 30% TT in advance, 70% TT before shipment.
Q: Does your price include freight?
A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
