Chinese factory YPG Pressure spray dryer for fresh milk/ coconut milk/concentrated milk/dried skimmed milk/whole milk
Descriptions:
The material is sprayed into fine mist by nozzle on the top of tower. Follow the heat wind, the material is dried. The machine's characteristic is high collection rate, no stick onto the wall, energy saving, high efficiency, especially applicable for heat sensitive material. It's widely used in food, dyestuff, chemical industry and so on.
Applications:
Food Industry:Fatty milk powder, protein, cocoa milk powder, substitute milk powder ,egg white (yolk), food and plant ,oats ,chicken juice, coffee ,instant dissoluble tea ,seasoning meat ,protein ,soybean ,peanut protein , hydrolysate and so forth .Sugar ,corn syrup ,corn starch ,glucose .pectin ,malt sugar , sorbic acid potassium and etc.
Medicine: Traditional Chinese medicine extract, ointment, yeast, vitamin, antibiotic, amylase ,lipase and etc .
Plastics and resin : AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chloroprene and etc.
Detergent :common washing powder ,advanced washing powder ,soap powder ,soda ash ,emulsifier ,brightening agent ,orthophosphoric acid and etc.
Chemical industry :Sodium fluoride (potassium ), alkaline dyestuff and pigment ,dyestuff intermediate, Mn3O4, compound fertilizer ,formic silica acid ,catalyst, sulphuric acid agent ,amino acid ,white carbon and so on .
Ceramic: aluminium oxide, ceramic tile material, magnesium oxide, talcum and so on .
Other: Calmogastrin, hime chloride, stearic acid agent and the cooling spray.
Technical parameters:
|
Spec |
50 |
100 |
150 |
200 |
300 |
500 |
1000 |
|||||
|
Water evaporation capacity Kg/h |
50 |
100 |
150 |
200 |
300 |
500 |
1000 |
|||||
|
Overall dimension mm |
1600×8900 |
2000×11500 |
2400×13500 |
2800×14800 |
3200×15400 |
3800×18800 |
4600×22500 |
|||||
|
High-pressure pump pressure Mpa |
2-10 |
|||||||||||
|
Power Kw |
8.5 |
14 |
22 |
24 |
30 |
82 |
30 |
|||||
|
Inlet air temperature ℃ |
300-350 |
|||||||||||
|
Product water contents % |
less than 5 percent, and 5 percent can be achieved. |
|||||||||||
|
Collection rate % |
>97 |
|||||||||||
|
Electric heater Kw |
75 |
120 |
150 |
When the temperature is lower then 200, the parameters should be calculated according to the practical condition. |
||||||||
|
Electricity + steam Mpa+Kw |
0.5+54 |
0.6+90 |
0.6+108 |
|||||||||
|
Hot air furnace Kcal/h |
100000 |
150000 |
200000 |
300000 |
400000 |
500000 |
1200000 |
|||||

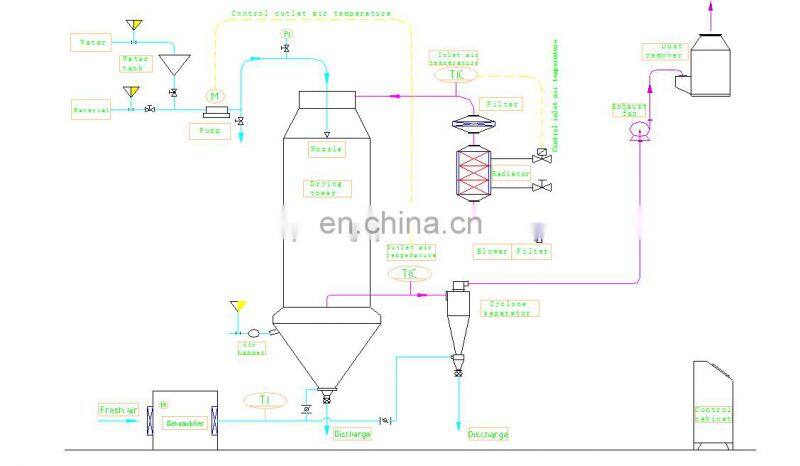

Flow chart
| Product Keywords |
Fresh Milk Spray Dryer, lab spray dryer, lab spray dryer for fresh milk, whole milk, coconut milk/concentrated milk/concentrated milk |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our service:
Our 24hr-online
WeChat/WhatsApp: +86-13915098637
Skype: merrymiao37
