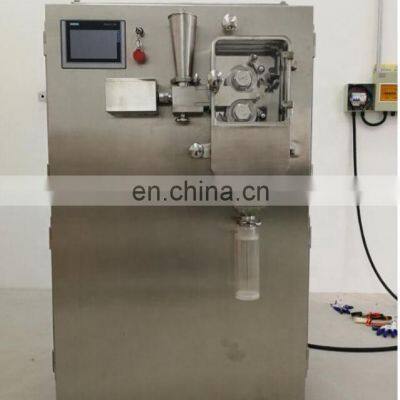

Lab machine LGS-5 Roller Compactor for Petrochemical

Chinese factory powder granulator feed dry granulator

Lab machine LGS-5 Roller Compactor/Dry Granulator for metal powder/bioengineering/minerals/ coal

I. Product introduction

General description of Roller Compactor/Dry Granulator

Roller Compactor is also called Dry Granulator. It is a new high efficient type granulating equipment that can make powder to granules directly, and the working process does not need adding water, stirring or drying. It is widely used in pharmaceutical, chemical and food industry. It has a lot of advantages, so it in widely used in all kinds of industries for treating active materials, especially suitable for heat-sensitive drugs.

LG-40 is production model equipment, and is favored by customers.

Working principle of Roller Compactor/Dry Granulator

The mixed powder material is charged into the hopper by special feeding device (Pneumatic or mechanical), and then transferred to the pressure chamber by screw conveyor. In the pressure chamber material is compacted to high density lamina by two high pressure rollers, then the lamina is cut into pieces by cutting system. Finally two degrees milling system will make the pieces to granules with needed size. The granulating process is finished.

Features of the equipment of Roller Compactor/Dry Granulator

1. Material is formed by mechanical compactor, its chemical properties will not be destroyed, and effective content will not be reduced.

2. Low energy consumption and high productivity. The granulation rate can be 85% for 8~60 mesh granules.

3. Structure is simple and fastening part is less. It is convenient to install and disassembly the equipment. The disassembling time is less than 8min, and installation time is less than 8min.

4. Sealing efficiency is good and there is no leakage. So it can ensure the safety of operator and drugs.

5. When the machine is shut down, the automatic water-return function can avoid the leakage of cooling water when disassembling the equipment.

6. The surface of roller can be checker type, straight type and plain type. They can meet the requirements of treating materials with different properties.

7. The control system and main machine is in one body, and it is convenient for installation and commissioning.

8. The gap of rollers is adjustable. So the density of lamina is even.

9. There is hydraulic system, so the hardness and density of granules are adjustable.

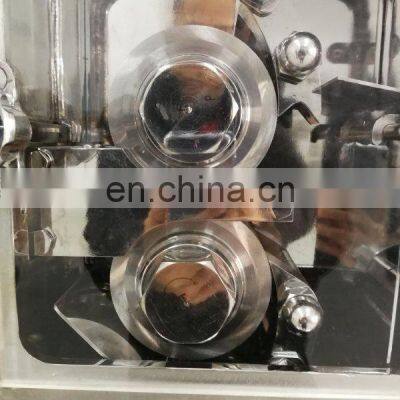

10. Two rollers and installed up and bottom type, this structure can eliminate the effect of gravity to material. So the uniformity of material before compacting can be ensured.

II. Equipment parameters of Roller Compactor/Dry Granulator
