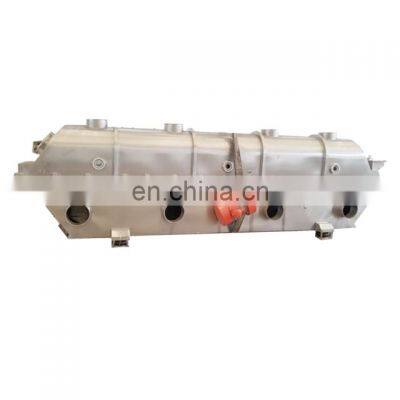

China Manufactory Fluidized Bed Dryer Fluid Bed Drier for Black Tea photo-2
China Manufactory Fluidized Bed Dryer Fluid Bed Drier for Black Tea photo-3

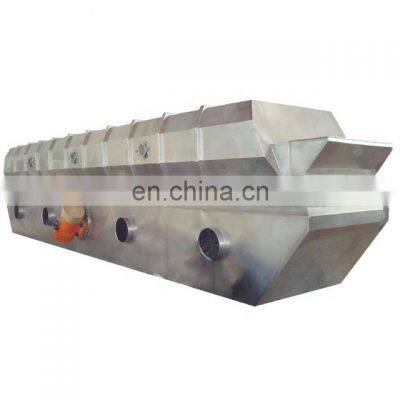

China Manufactory Fluidized Bed Dryer Fluid Bed Drier for Black Tea photo-4

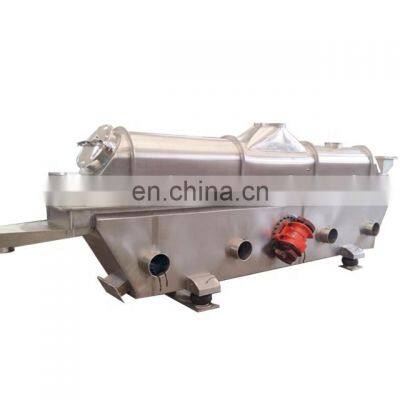

China Manufactory Fluidized Bed Dryer Fluid Bed Drier for Black Tea photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Changzhou Jiacheng Drying Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

China Manufactory fluidized bed dryer fluid bed drier

ZLG Vibrating Fluid Bed Dryer for salt/ black tea/washing powder

I. Features of ZLG vibrating Fluid Bed Dryer for salt

Quick-open structure will be adopted in it, the upper bed can be moved easily and it is convenient for cleaning.

The bed board was made with laser punching technology, it effectively avoid deformation by common punching technology.

The lower bed is supported by stainless steel seamless tube. It’s more strong.

 Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%.

The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability. The thickness and moving speed in the machine and the amplitude change speed of the material can be steeples regulated.
It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape.
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keeps the environment clean.

II. Work principle of ZLG vibrating Fluid Bed Dryer for salt

 Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchanging with damp raw material. Then the damp air is exhausted out through cyclone separator and duster, and the dry raw material is discharged through discharge outlet.

III. Application of ZLG vibrating Fluid Bed Dryer for salt

1. Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on.
2. Foodstuff and construction material industries: distiller's grains, monosodium, edible sugar, edible salt, mine residue, bean, seeds and so on.
3. Also can be used for material cooling, humidification etc.

IV. Technical parameters of vibrating Fluid Bed Dryer for salt

Type

Fluidized-bed

(M2)

Inlet air temperature(°C)

Outlet air temperature (°C)

Evaporate capacity
(kg/h)

Vibration motor



Type

Power (kw)



ZLG3×0.30

0.9

70-140

40-70

20-35

ZDS31-6

0.8×2

ZLG4.5×0.30

1.35

70-140

40-70

35-50

ZDS31-6

0.8×2



ZLG4.5×0.45

2.025

70-140

40-70

50-70

ZDS32-6

1.1×2

ZLG4.5×0.60

2.7

70-140

40-70

70-90

ZDS32-6

1.1×2

ZLG6×0.45

2.7

70-140

40-70

80-100

ZDS41-6

1.5×2

ZLG6×0.60

3.6

70-140

40-70

100-130

ZDS41-6

1.5×2

ZLG6×0.75

4.5

70-140

40-70

120-140

ZDS42-6

2.2×2

ZLG6×0.9

5.4

70-140

40-70

140-170

ZDS42-6

2.2×2

ZLG7.5×0.6

4.5

70-140

40-70

130-150

ZDS42-6

2.2×2

ZLG7.5×0.75

5.625

70-140

40-70

150-180

ZDS51-6

3.0×2

ZLG7.5×0.9

6.75

70-140

40-70

160-210

ZDS51-6

3.0×2

ZLG7.5×1.2

9

70-140

40-70

200-260

ZDS51

3.0×2
