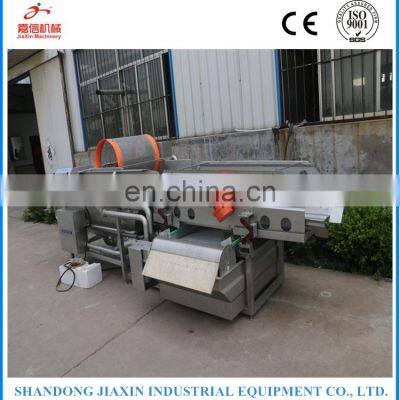

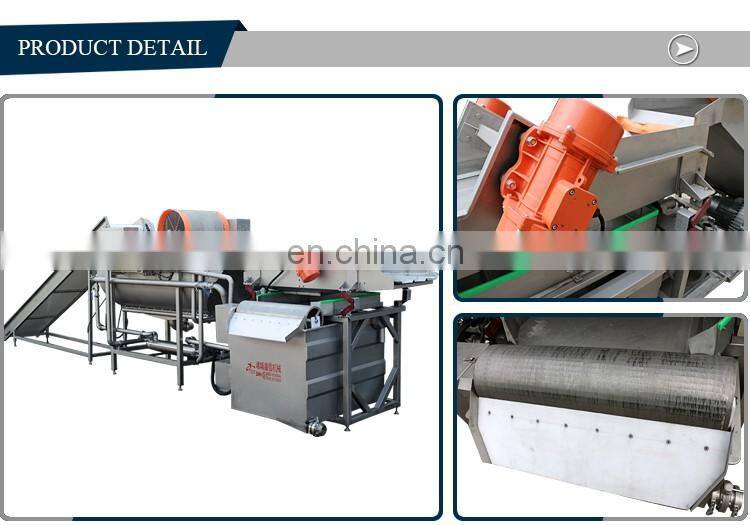

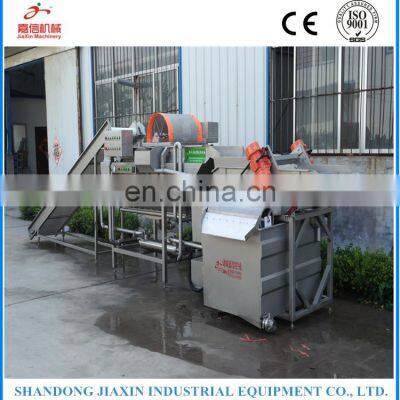

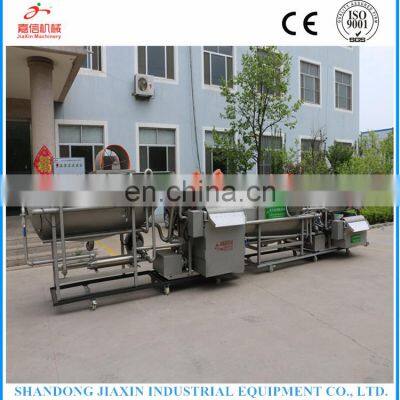

Horizontal Vortex spiral washing machine used to wash small scale industrie machine washer for taro/vegetable washing machine
Name |
Parameter |
Dimension |
4200×800mm (Diameter) |
Total power |
9.67kw |
Water consumption |
0.4MT/h |
Material |
2.5mm food grade 304 stainless steel |
Stainless steel centrifugal water pump |
2 sets 3kw/set |
Vortex pump |
2.2kw |
Vibration motor |
2sets 0.16kw/set |
Slag discharge motor |
0.37kw |
Drum motor |
0.18kw |
Ozone generator |
0.6kw |
Small water tank |
2mm food grade 304 stainless steel |
Vibration sieve plate |
Thickness: 2mm Hole Size: 3mm Material: food grade 304 stainless steel |
Vibration buffer block |
Imported from Switzerland |
Bracket |
50×50×2mm food grade 304 stainless steel |
Equipment Introduction
First time horizontal vortex rough wash plus first time vibration to remove water wash to eliminate huddle phenomenon when washing vegetables without cutting by using traditional vortex spiral washing machine. High pressure bubble can separate the huddle vegetables efficiently to settle the problem that pure vortex washing machine can only wash materials which have be cut.
Note: Can Be Customized
Application
Horizontal vortex spiral washing machine is mainly used to wash leafy, rhizome vegetables and pickled fruit&vegetables such as Chinese cabbage, lettuce, spinach and pickled radish etc.
Characteristics
1) Ozone sterilization system can remove the residual pesticide and toxicity of detergent residues. Self-help filling water, without manual work.
2) Water level regulation, impurity concentration recovery device
3) Fast loading type roller device to remove impurity and insect: roller separates the impurity and insect from water surface then exhaust them through discharge port.
4)Automatic discharge system: Automatic continuous filtration, Automatically collect impurities, Realize water recycling utilization
5) High pressure bubble equipment: bubble washing system is installed in the body of the washing machine through pipe bracket, generate bubble in the water, add oxygen content in the water to maintain freshness of vegetables.
6) Vibration draining device: transmit light and heavy materials through adjust vibration frequency. Using low noise imported shock absorber block.
1. We have ISO 9001 certified and resonable price.
2. Test equipment before delivery.
3. We will respond to customers’ problems within 24 hours.
Our products are well sold both in domestic and abroad market. By now we have various kinds of machinery producing equipment, can meet different customers’ requirements. We have passed ISO9001 and CE certification. We have self-managerial import&export authority. We can also design, customize&install project on the spot. To adapt the development and market need, we establish top-ranking modern production base and sales network covered global market. Our clients are coming from all over the world.
