Simple Maintenance Good Quality Fertilizer Granules Making Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Speed Wet Type Powder Mixer Granulator Machine for Sale
-
Long Service Life Food Chemical Wet Granulating Machine With Online Support
-
Reliable Quality Rapid Powder Mixing Granulator Machine Professional Manufacturer
-
Competitive Price Wet Type Mixing Granulating Machine With One Year Warranty
-
Nice Price Rapid Pharmaceutical Powder Mixing Granulator Machine
-
High Safety Level High Speed Wax Food Wet Granules Making Machine
Product Description
Recommend Products
Products Description

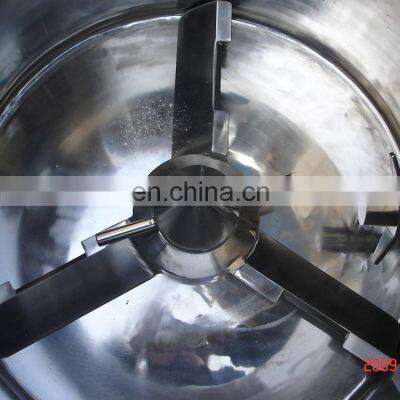

Equipment for injecting powdery binder and wet granules in the fields of medicine, food, chemical industry, etc.The powder material and the binder are fully mixed from the bottom mixed slurry in a cylindrical container to form a wet soft material, and then cut into uniform wet particles by the side-mounted high speed crushing slurry.
Model | SED-600SZ-B |
Volume | 600L |
Capacity | 300 kg/batch |
Blending speed | 80/120 rpm |
Blending power | 18.5/22 KW |
Cutting power | 9/11KW |
Cutting speed | 1440/2900 rpm |
Working time | 8-15 min |
Particle size | 20-80 mesh |
Overall Size | 2600*2250*2050mm |
Weight | 1750kg |
Feature
1. This machine adopts a horizontal cylinder structure with reasonable structure.
2. The drive shaft is air-filled and sealed and can be switched to water during cleaning.
3. Fluidized granulation, the granulation is approximately spherical, and the fluidity is good. Compared with the traditional process, the adhesive is reduced by 25%, and the drying time is shortened.
4. Each batch of dry mixing is 2 minutes, granulation is 1-4 minutes, and the work efficiency is increased by 4-5 times compared with the traditional process.
5. Completed in the same closed container, dry mixing-wet mixing-granulation, the process is reduced, in line with GMP specifications.
6. The entire operation has strict safety protection measures.
Main configuration
No | ITEM | SPECIFICATION | Qty. | SUPPLIER |
1 | Rack sealing plate | SUS304*1.5mm | Zhangpu | |
2 | Mixer cylinder | SUS304*8mm | 1 | Zhangpu |
3 | Mixer motor | 22Kw | 1 | Zhejiang |
4 | Mixer inverter | 22Kw | 1 | Delta |
5 | Granulator motor | 11Kw | 1 | Zhejiang |
6 | Cutting inverter | 11Kw | 1 | Delta |
7 | Mixer reducer | KF97 | 1 | Zhejiang |
8 | Spindle | 45# quenching and tempering | 1 | Self-made |
9 | Granulator shaft | 45# quenching and tempering | 1 | Self-made |
10 | Mixer paddle | SS304 | 1 | Self-made |
11 | Bearing | 6020/6214 | Each 2 | HRB |
12 | Open cover cylinder | 100*300 | 1 | Shanghai |
13 | Discharge cylinder | 63*270 | 1 | Shanghai |
14 | O-ring seal | Each 1 | Wuxi | |
15 | Skeleton oil seal | Wuxi | ||
16 | Electrical appliances | CHNT |
