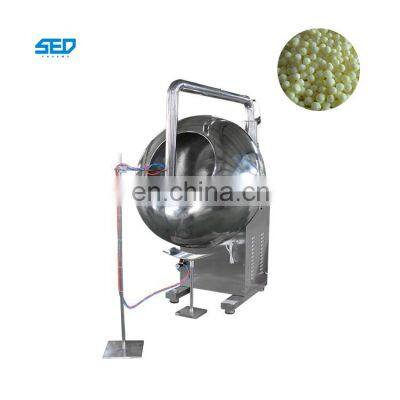

Automatic Pharmaceutical Tablet Film Coating Machines 50 - 80 kg / Time
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
30-50kg/time Automatic Chocolate Peanut Coating Machine for Food Industry
-
Wide Range of Application Peanut Chocolate Pill Coating Pan Machine
-
6-15 kg / Batch Simple Structure Automatic Candy Sugar Coating Pan Machine
-
6-15 kg / Batch Multi-functional Peanut Chocolate Sugar Coating Pan Machine
-
6-15 kg / Batch High Quality Pharmaceutical Tablet Sugar Coating Machines
-
300mm Pot Diameter Simple Chocolate Nuts Peanut Sugar Candy Coating Pan Machine
Product Description
Recommend Products
Products Description
This machine is suitable for the sugar coating, polishing and rolling of Chinese and Western tablets, pills, pellets, small pills, water pills, dropping pills and granules in pharmaceutical, chemical, food, research institutes and hospitals. It can also be used for the trial production of new drugs in scientific research institutions.
Working Principle:
Through the pot body, the tablets roll, slide and rub in the pot, so that the coated powder is evenly distributed on all Tablets. The air outlet pipe of the attached electric blower can extend into the pan for heating. At the same time, the blower passes hot air to the inner layer of the pot to remove the water on the surface of the tablets, so as to obtain the stiff sugar coated tablets.
Model | SED-JB300 | SED-JB400 | SED-JB600 | SED-JB800 | SED-JB1000 |
Dia. of Pan (mm) | 300 | 400 | 600 | 800 | 1000 |
Capacity (kg/time) | 1-4 | 2-6 | 6-15 | 30-50 | 50-80 |
Rotary speed of pan (rpm) | 46 | 46 | 40 | 32 | 32 |
Power of motor (kW) | 0.12 | 0.12 | 0.75 | 1.1 | 1.1 |
Power of fan (kW) | 0.06 | 0.06 | 0.1 | 0.2 | 0.2 |
Power of internal heating (kW) | 0.5 | 0.5 | 0.85 | 0.9 | 1 |
Total power (kW) | 0.66 | 0.68 | 1.7 | 2.2 | 2.3 |
Outline size (mm) | 560*300*850 | 560*400*850 | 780*600*1360 | 1150*800*1550 | 1150*1100*1600 |
Weight (kg) | 30 | 35 | 115 | 230 | 240 |
