Touch Screen Control Automatic Rotary 31 Stations Tablet Press Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
60000 Pcs / h Rotary Type Powder Calcium Tablet Press Machine With One Year WarrantyNegotiableMOQ: 1 -
Widely Used Automatic 31 Stations Rotary Powder Candy Tablet Press MachineNegotiableMOQ: 1
-
Wholesale Automatic Pill Press Milk Tablet Press Machine With Online SupportNegotiableMOQ: 1
-
Low Cost Easy Operation High Speed Rotary Calcium Tablet Press MachineNegotiableMOQ: 1
-
High Safety Level 60000 Pcs / h Automatic Rotary Dishwasher Tablet Pill Press MachineNegotiableMOQ: 1
Recommend Products
Products Description
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.
Model | ZPT420-31D |
Punch quantity(sets) | 31 |
Max. tablet pressure(kn) | 100 |
Max. tablet diameter(mm) | 20 |
Max.Depth of Fill(mm) | 15 |
Max.Thickness of Tablet(mm) | 6 |
Turret Speed(r/min) | 35 |
Production Capacity(pc/h) | 60000 |
Motor power(kw) | 5.5 |
Overall Size(mm) | 1240*980*1650 |
Net Weight(kg) | 1950 |

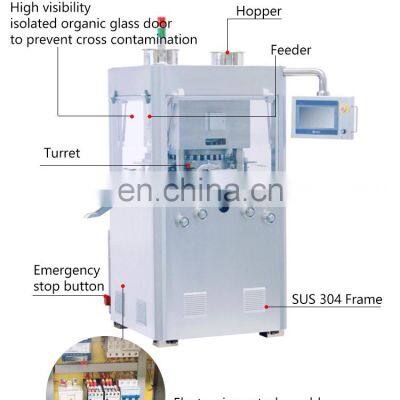

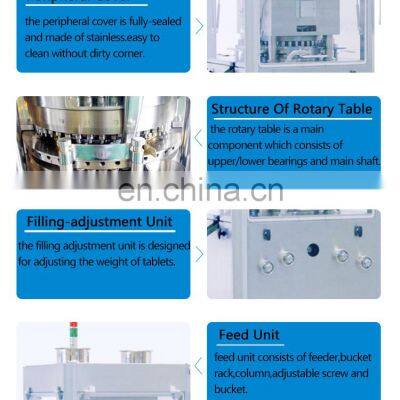

Details Images
Feature
1. Peripheral casing is closed form which is made of all stainless steel , internal mesa adopt stainless steel material, it can keep the surface glossy and prevent cross contamination and meet GMP requirement.
2. With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
3. With dust seal ring on punches, avoid powder leakage from turret table.
4. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
5. It is equipped with overload protection device, when pressure overload, it can stop automatically.
6. Improved thicker upper pressing wheel to increase pressure 100kn to 120kn for stable production.
7. Being the leader in trying to use semi-automatic lubrication device and the top of rotary table is equipped organic glass dust prevention device.
8.Mould length from 115 to 113.6mm, improve abrasion resistance and guidance quality.
9. It is equipped with powder absorbing device , can absorb indoor dust .
10. Wearing parts like orbit, feeder, hopper, drive worm, powder taking equipment and it has general structure with ZP33 type product, it is helpful for standardization, generalization and seriation.
Product packaging
