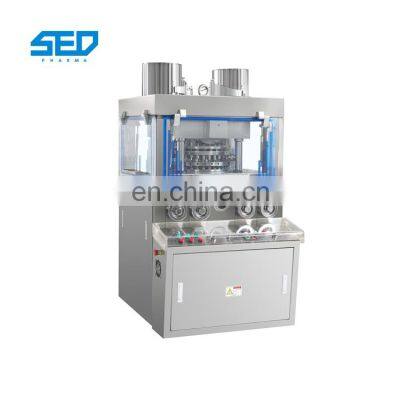

Multi Station Dishwasher Tablet Press Compression Machine 125000pcs/h
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Candy Milk Calcium Tablet Press For Granular Raw MaterialNegotiableMOQ: 1 -
Medicine Tablet Detergent Tablet Press Machine For Pharmaceutical Chemical Food IndustriesNegotiableMOQ: 1
-
Chinese Supplier Low Cost Rotary Square Tablet Press MachineNegotiableMOQ: 1
-
Chinese Supplier Automatic Rotary Plant Medicine Tablet Pill Press MachineNegotiableMOQ: 1
-
Professional 8 Station Automatic Foodstuff Rotary Tablet Press Machine For Small BusinessNegotiableMOQ: 1
Recommend Products
Products Description

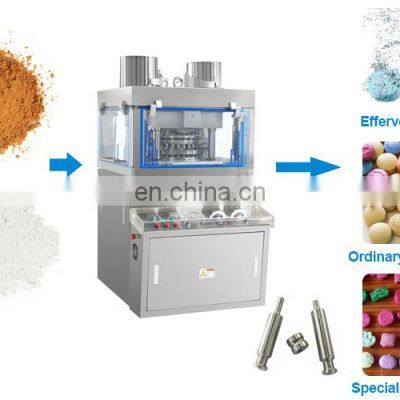

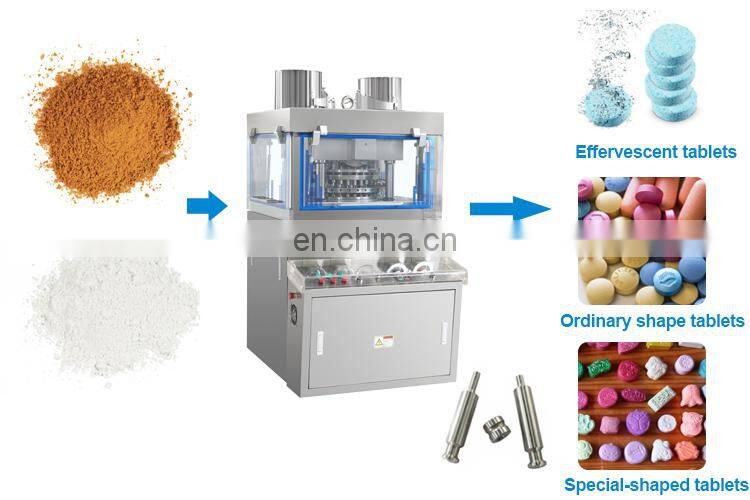

This machine is a double press type multi-functional automatic rotary continuous tablet pressing machine, which presses granular raw materials into tablets. It is mainly used in the production of pharmaceutical industry, as well as chemical, food, electronics and other industrial departments. According to customer requirements, it can press special-shaped pieces, double-layer pieces, ring pieces and so on.
Model | ZPW29 | ZPW31 |
Punch quantity(sets) | 29 | 32 |
Max. tablet pressure(kn) | 80 | 80 |
Max. tablet diameter(mm) | 24 | 22 |
Max.Depth of Fill(mm) | 15 | 15 |
Max.Thickness of Tablet(mm) | 6 | 6 |
Turret Speed(r/min) | 14-36 | 14-36 |
Production Capacity(pc/h) | 125000 | 135000 |
Motor power(kw) | 3-5.5 | 3-5.5 |
Overall Size(mm) | 1230*950*1670 | 1230*950*1670 |
Net Weight(kg) | 1700 | 1700 |

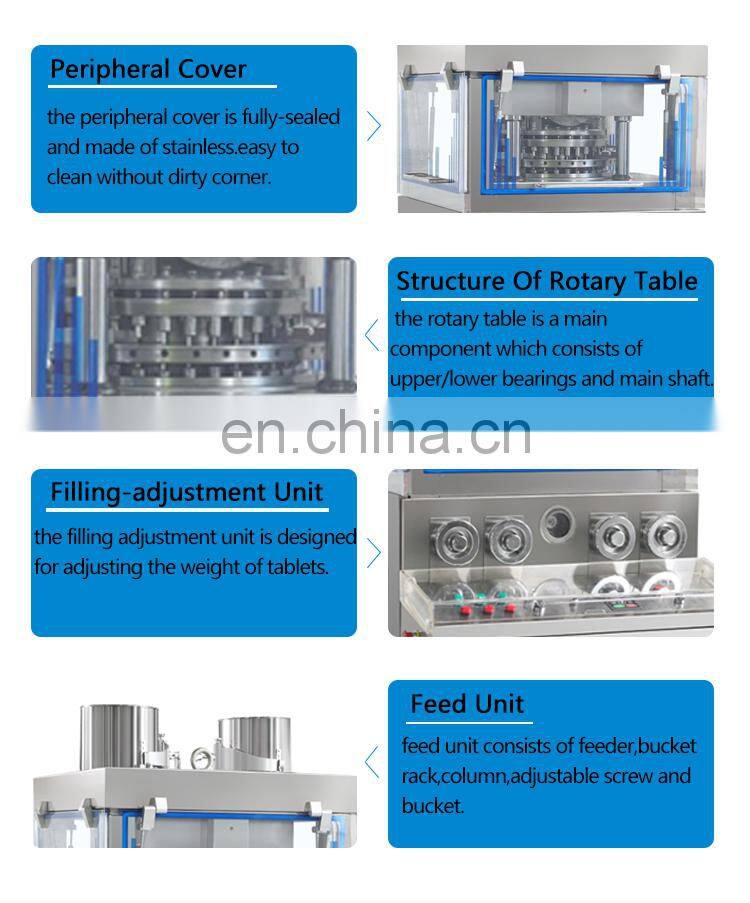

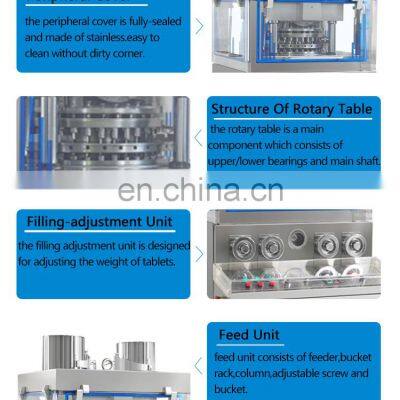

Details Images
Feature

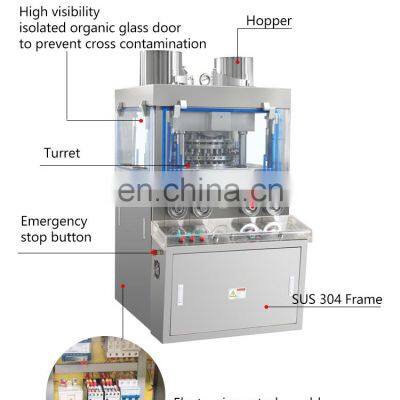

1. The outer cover is fully enclosed, made of stainless steel, and the inner table top is made of stainless steel, which can maintain the surface luster and prevent cross pollution, in line with GMP.
2. The mechanical operation can be clearly seen with a transparent protective cover. It can be fully opened for easy cleaning and maintenance.
3. The speed is stepless speed regulation, which can be adjusted arbitrarily.
4. Convenient operation, stable rotation, safety and accuracy. Implement mechatronics and adopt touch screen PLC control and operation.
5. The transmission system is sealed in the oil tank below the machine body. It is an independent component safely separated from each other, which will not pollute each other. In addition, the transmission shaft will penetrate into the lubricating oil pool, get sufficient lubrication, and reduce noise and wear.
2. The mechanical operation can be clearly seen with a transparent protective cover. It can be fully opened for easy cleaning and maintenance.
3. The speed is stepless speed regulation, which can be adjusted arbitrarily.
4. Convenient operation, stable rotation, safety and accuracy. Implement mechatronics and adopt touch screen PLC control and operation.
5. The transmission system is sealed in the oil tank below the machine body. It is an independent component safely separated from each other, which will not pollute each other. In addition, the transmission shaft will penetrate into the lubricating oil pool, get sufficient lubrication, and reduce noise and wear.
6. The mechanical dust suction device can absorb the dust flying in the suppression room.
7. When pressing double-layer sheets, the output is halved.
