Wide Range of Application Sugar Butter PVC Blister Package Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Speed Pharmaceutical Automatic Capsule Blister Packaging Machine
-
Automatic Capsule Jelly Blister Forming Packaging Machine With Video Technical
-
Long Service Life Small Perfume PVCBlister Packaging Machine
-
Professional Automatic Plastic Shell Capsule Blister Blister Packing Machine
-
Multi-functional Electric Jam Honey Butter Blister Packing Machine for Sale
-
High Speed Pill Hot Forming Blister Packing Machine With Easy Operation
Product Description
Recommend Products
Products Description
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.

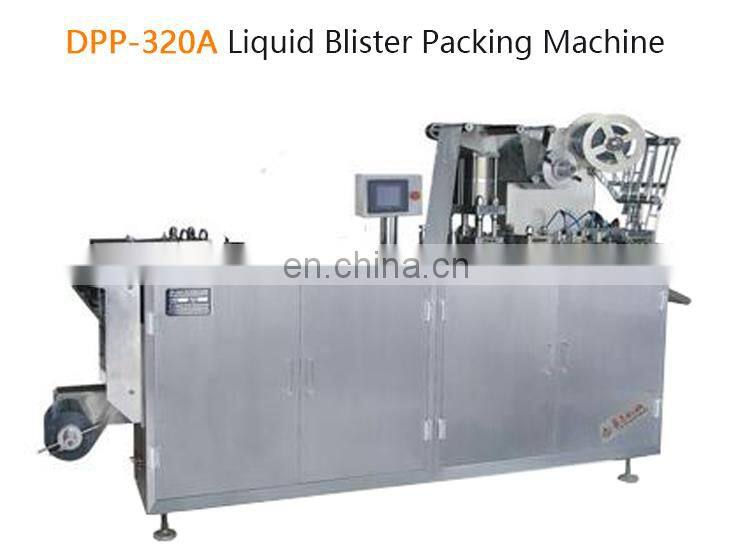

Product Name | DPP-320A Automatic Blister Packing Machine | ||||||
Blanking frequency (sheets): | 15-20 | ||||||
Sheet's quantity of one blanking (sheets): | 8(depend on your size) | ||||||
Capacity (sheets/hour): | 8cupps*20cutting*60minutes=9600cups/hour | ||||||
Adjustable scope of feed travel: (mm) | 10-160 | ||||||
Max Forming area and depth (mm) PVC (For medicine): | 340×160×65 | ||||||
Capacity of air compressor(m3/min): | ≥0.36 | ||||||
Power supply (KW): | 380V 50HZ 5.5KW (it can be required by customers) | ||||||
Wrapper specification (mm): | PVC for medicine 340× (0.15-0.5) PTP Aluminum film 340× (0.02-0.035) | ||||||
Weight (kg): | 2200Kg | ||||||
Working Principle
1. Forming: our machine use pre-heating the PVC, then adopt Electronic Valve for forming.
2. Feeding: According to your Image, I can see there are Chocolate and biscuit in one blister, So we use Chocolate Feeder to feed the chocolate into blisters automatically. And you only need to feed the biscuit into the blister by manual.
3. Sealing: After the feeding, our machine will seal the blister automatically, PVC sealed with Aluminum or PE, or PET, or other material you want.
4. Cutting: At the end of the machine there is a cutting mould, cut the blister into pieces.
5. Capacity: with the Chocolate Feeder and Manually filling biscuit, our machine can run in 30 cutting/minute. It means our machine can produce 30 blisters in one minute.
2. Feeding: According to your Image, I can see there are Chocolate and biscuit in one blister, So we use Chocolate Feeder to feed the chocolate into blisters automatically. And you only need to feed the biscuit into the blister by manual.
3. Sealing: After the feeding, our machine will seal the blister automatically, PVC sealed with Aluminum or PE, or PET, or other material you want.
4. Cutting: At the end of the machine there is a cutting mould, cut the blister into pieces.
5. Capacity: with the Chocolate Feeder and Manually filling biscuit, our machine can run in 30 cutting/minute. It means our machine can produce 30 blisters in one minute.
1.Travel scope can be adjusted.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Manipulator grip to tow wrapper, straight to-and-fro running. Synchronize accurately. (Stepping motor can be chose to drive and tow wrapper)
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Manipulator grip to tow wrapper, straight to-and-fro running. Synchronize accurately. (Stepping motor can be chose to drive and tow wrapper)
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Details Images
Plastic preheating and unwind
Plastic blister forming station

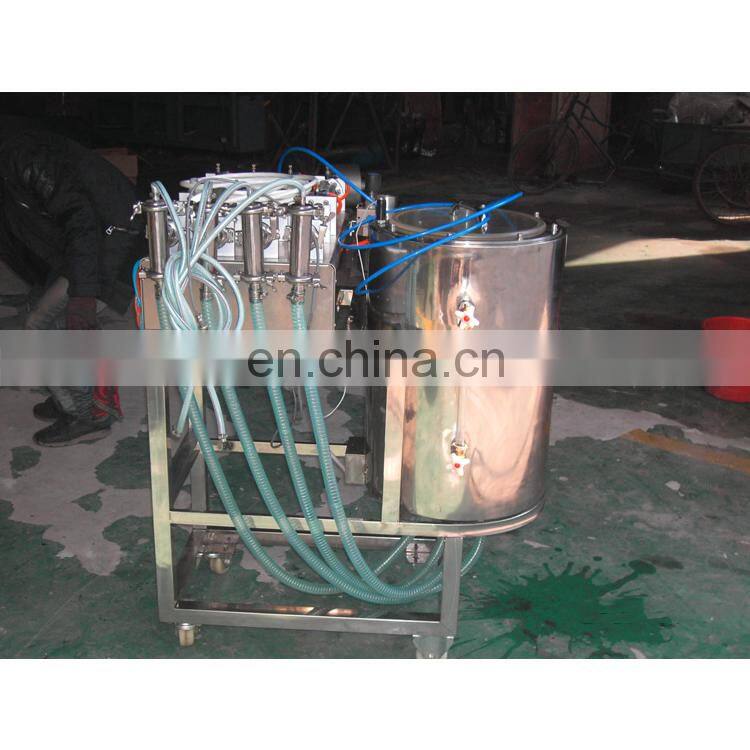

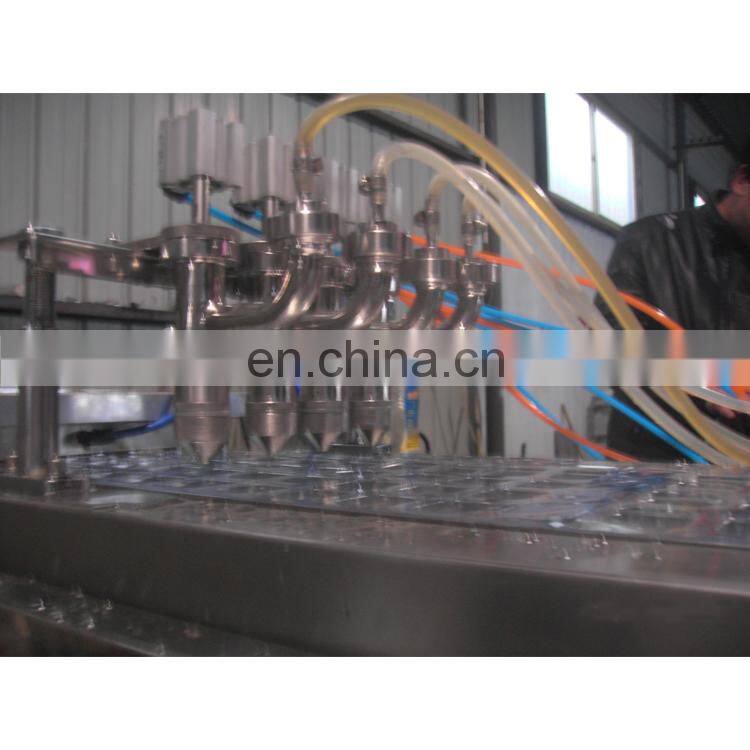

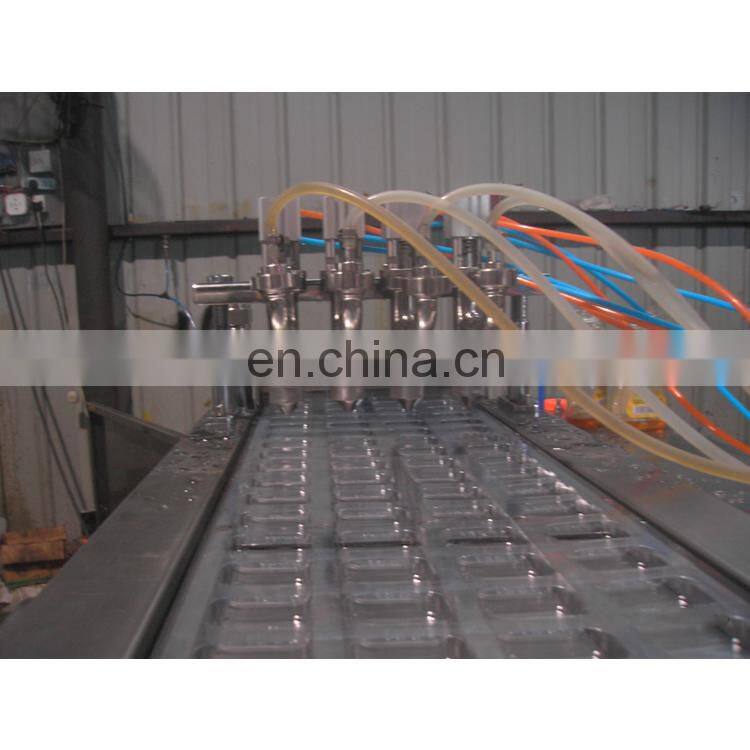

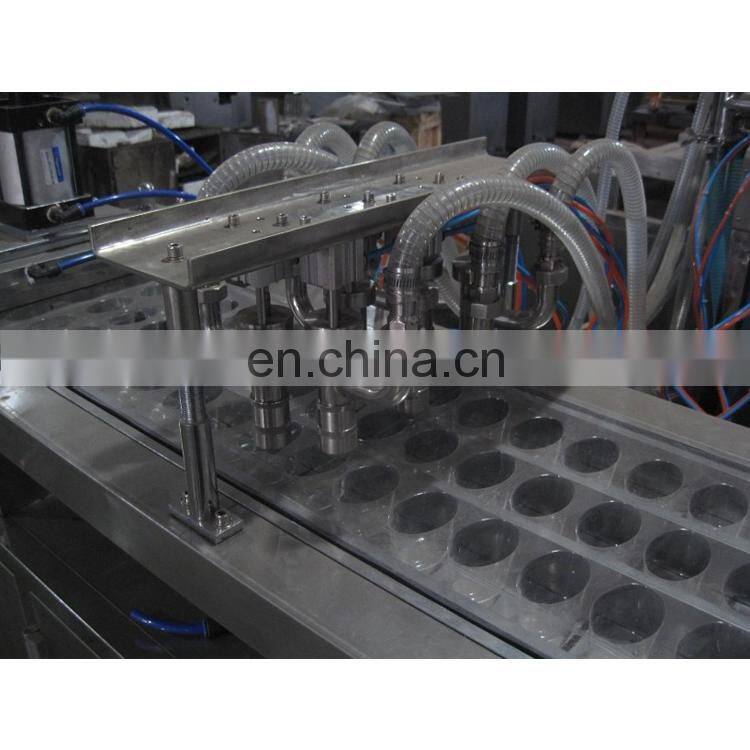

Liquid feeder
Aluminum and plastic sealing station
Step motor for towing material
Aluminum plastic blister cutting station
Electronic box and color point sensor

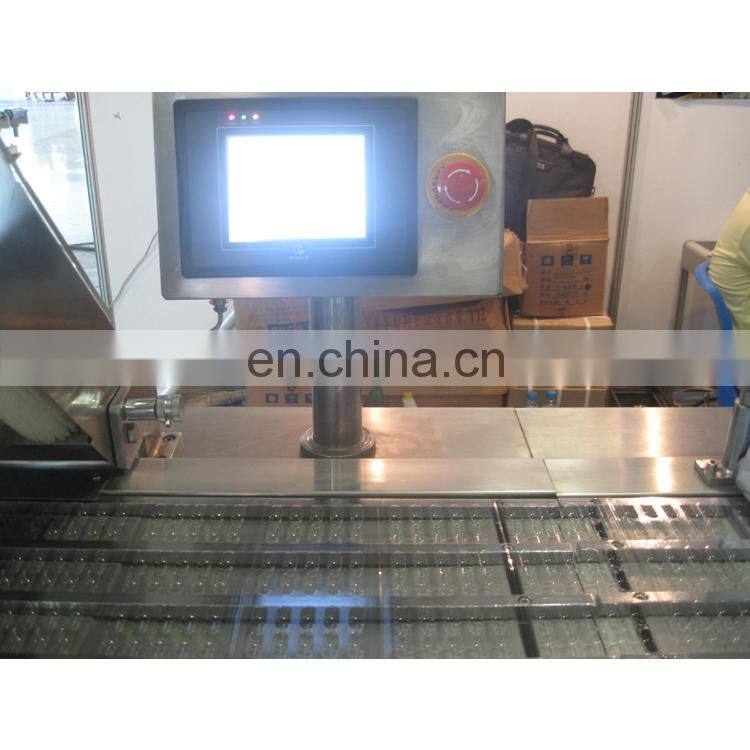

Touch screen and feeding pump
