High Frequency Tooth Brush Thermoforming Alu PVC Blister Packing Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Hot Selling Automatic Pharmaceutical Syringe Plastic Blister Packing Machine
-
Reliable Quality Automatic Blister Forming Packing Machine for Syringe Toothbrush
-
High Safety Level Automatic Candy Chocolate Alu-PVC Blister Package Machine
-
Wide Range of Application Automatic Pharmacy Syringe Pill Bee Honey Blister Packaging Machines
-
Simple Maintenance Pharmaceutical Medicine Capsule Blister Packing Machine
-
Multi-functional Medical Vitamin Capsule Toothbrush Blister Packaging Machine
Product Description
Recommend Products
Products Description
The machine is assembled with three parts and can be packed and transported separately. Under control of PLC, the machine can complete separately all procedures including warm-up, blister forming, automatic feeding, heat sealing and synchronous adjustment of Aluminum-Plastic strip, empty-detecting, hard Aluminum forming, second heat sealing, batch number printing, blanking and scrap-collecting, etc.
The machine is suitable for blister packing with Aluminum-Plastic, Aluminum-Aluminum and Aluminum-Plastic-Aluminum.
The machine is suitable for blister packing with Aluminum-Plastic, Aluminum-Aluminum and Aluminum-Plastic-Aluminum.

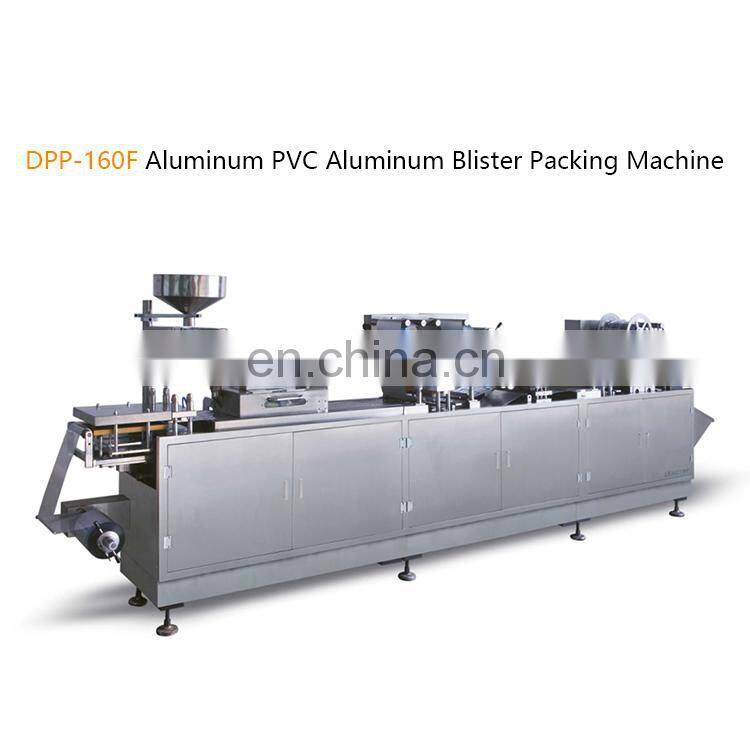

Model: | DPP-160F |
Punch Speed: | 10-35time/min |
Max. Shape Area: | 160*110mm |
Travel Range: | 10-150mm |
Compressed Air: | 0.4MPA-0.6MPA |
Power: | 380V 50Hz 4Kw |
Wrapper Specification: | PTP:(0.02-0.035)*160mm Composite Aluminum film: (0.11-0.15)*160mm PVC: (0.15-0.5)*160mm |
Overall dimensions (mm): | 3800×680×1400 |
Weight (kg): | 1500Kg |
1.Travel scope can be adjusted.
2.Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.
3.The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
5.Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
6.Servomotor drive wheel to grip and tow wrapper, synchronize accurately.And it will be not waste of time and material for adjusting when restart the machine.
7.The machine equipped Camera Cell for sensor, make the length in anaccurate number.
8.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
2.Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.
3.The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
5.Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
6.Servomotor drive wheel to grip and tow wrapper, synchronize accurately.And it will be not waste of time and material for adjusting when restart the machine.
7.The machine equipped Camera Cell for sensor, make the length in anaccurate number.
8.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Details Images
Servo Motor

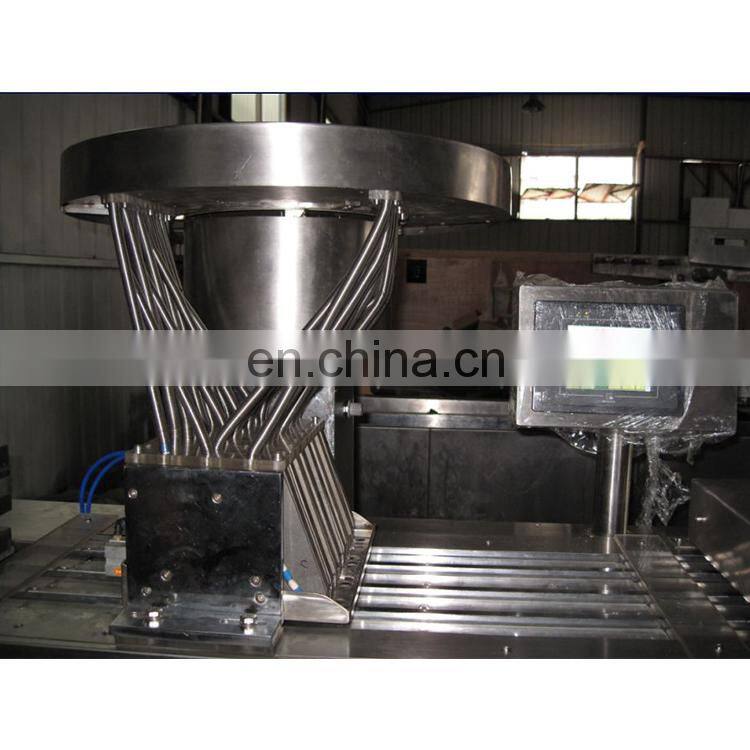

Brash feeder and Vibration guide way feeder(for alu alu)

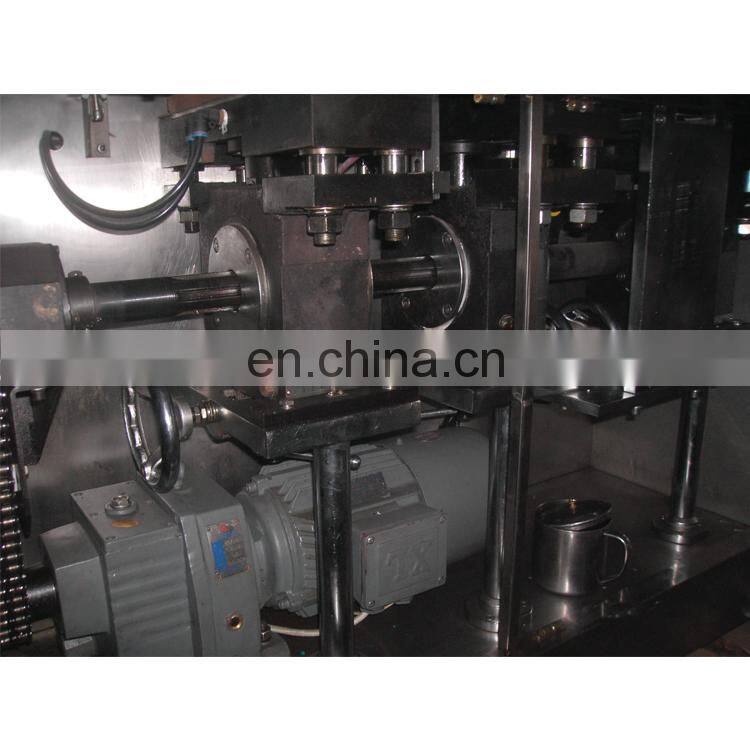

Mechanical Part
