Products Description

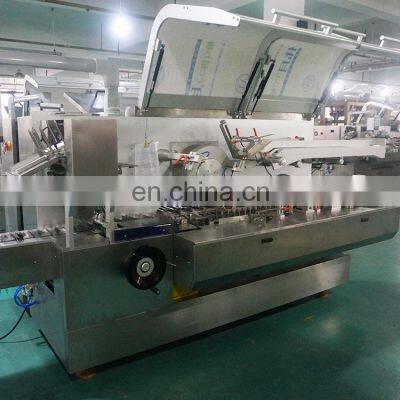

This machine is a fully automatic continuous cartoning machine, a high-performance product integrating machine, light, electricity, and gas. It is suitable for automatic processing of aluminum-plastic blister plates, bottles, hoses, soft double aluminum, bag-like items, etc. It can be packed in boxes, and can be matched with them to form a packaging production line.
Model |
SED-450GZH-A |
Max speed |
450 (cartons/min) |
Carton requirement |
350g/㎡ |
Carton Size Range |
(70-180)mm×(35-80)mm×(14-50)mm |
Leaflet quality requirement |
60g/㎡ |
Leaflet unfolded size range |
(80-250)mm×(90-170)mm |
Leaflet folded size range |
1-4 folds |
Compressed air working pressure |
≥0.6 Mpa |
Compressed air consumption |
About 220-240L/min |
Supply |
380V 50HZ |
Main motor power |
4.5kw |
Dimension (L×W×H) |
4800*1800*2000mm |
Net weight |
About 5500kg |
Feature
1. No products do not suck leaflet. Not leaflet does not suck carton.
2. When there is no product or the product supply is not in place, the machine will idle without pushing the product. When the product is restored to supply, it will run automatically, and the product will stop automatically when the product is not in place.
3. Low compressed air and vacuum negative pressure shutdown alarm.
4. The multi-station servo pushing mechanism can save the front operation space of the machine, and make the operation and maintenance of the machine more convenient.
5. A very simple product specification change can be made through the dial scale handwheel.
