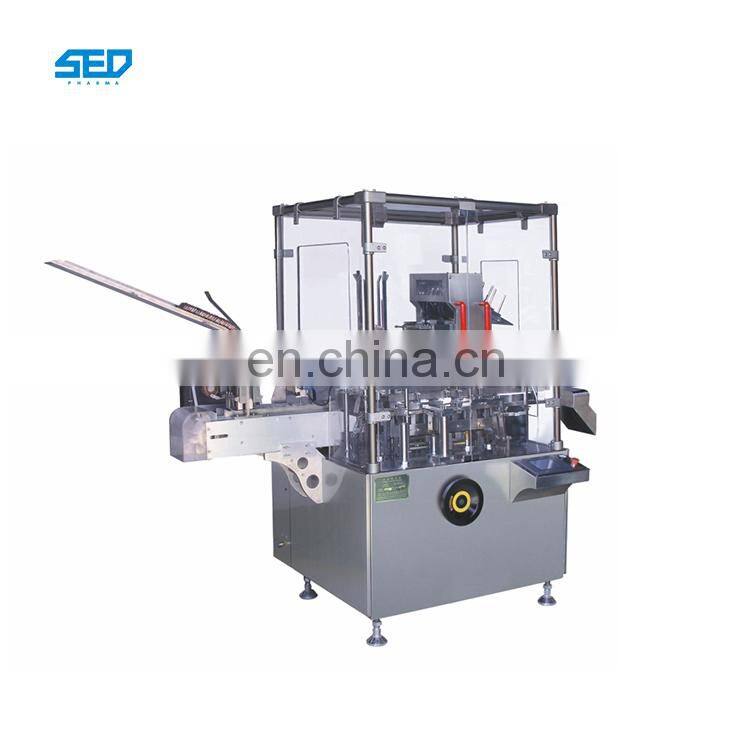

30-120 Boxes / Min Automatic Vertical Cartoning Packaging Machine With Online Support
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Low Maintenance Cost High Quality Bottle Carton Box Packaging Machine
-
Multi-functional Cartoning Machine for Bottle Soap Perfume Egg
-
Excellent Performance Good Price Customize Small Cartoning Machine
-
New Type Easy Operation Automatic Vertical Soap Biscuit Box Carton Packaging Machine
-
High Quality Automatic Soap Toothbrush Cartoning Packaging Machine 30-120 Boxes / Min
-
Simple Maintenance Food Box Cartoning Machines Professional Manufacturer
Product Description
Recommend Products
Products Description
The equipment is a new model developed by our company combined with advanced technology at home and abroad. It is a high-tech product integrating light, electricity, gas and machinery. Thus, the performance and working efficiency of the equipment are greatly improved, the requirements of rapid cartoning are realized, and the stable and reliable state is still maintained during rapid operation.
This machine is suitable for automatic feeding and cartoning of articles with multiple varieties and specifications.The feeding mechanism is easy to adjust, and the number of plates to be cartoned can be set arbitrarily on the operation screen. Online material conveying and detection, manual folding (1-4 times of folding) and transmission, manual detection, carton suction molding and transmission, material entering the carton, embossing batch number, missing material removal of paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive) and finished product output are all completed automatically.
Model | SED-120LZH-A | ||
Encasing speed | 30-120 boxes /min | ||
Box | Quality requirement | 250-350g/㎡【Base on carton size】 | |
Dimension range（L×W×H） | （65-125）mm×（30-85）mm×（12-50）mm | ||
Leaflet | Quality requirement | 60-70g/㎡ | |
Unfolded leaflet specification | （80-250）㎜×（90-170）㎜ | ||
Fold range | 【1-4】Fold | ||
Compressed air | Working pressure | ≥0.6mpa | |
Air consumption | 120-160L/min | ||
Power supply | 220V 50HZ | ||
Main motor power | 0.75kw | ||
Machine dimension(L×W×H) | 2150*1140*1800mm | ||
Machine weight | 1100kg | ||
Feature
1: International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2: Adopt human-machine operation system.
3: Automatically stop when machine is overload.
4: Automatically reject lacking of package product and leaflet.
5: Automatically display trouble, Alarm and count finished products.
6: Stable performance,operation is easy.

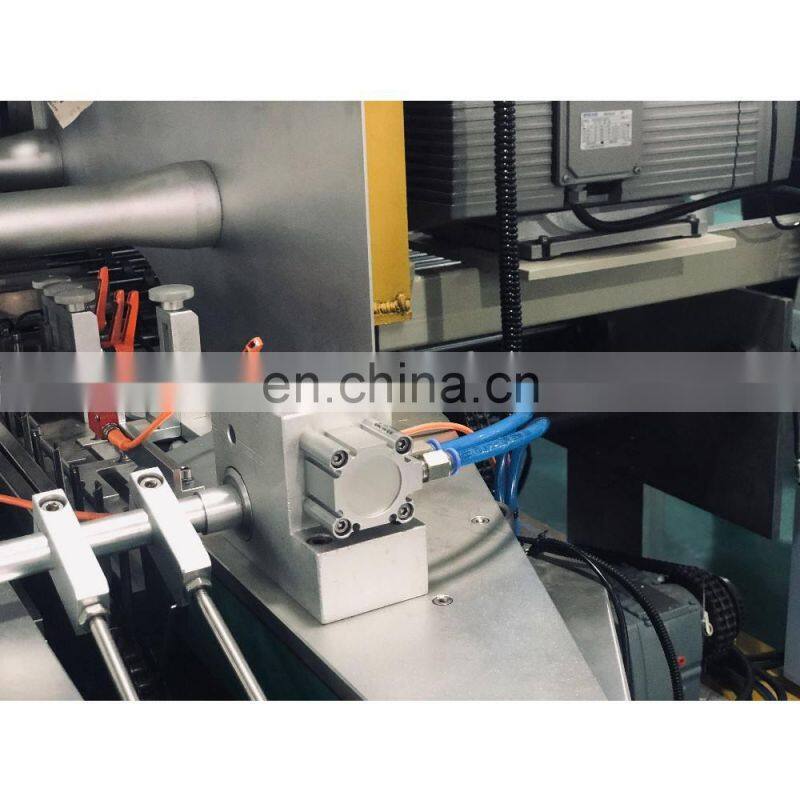

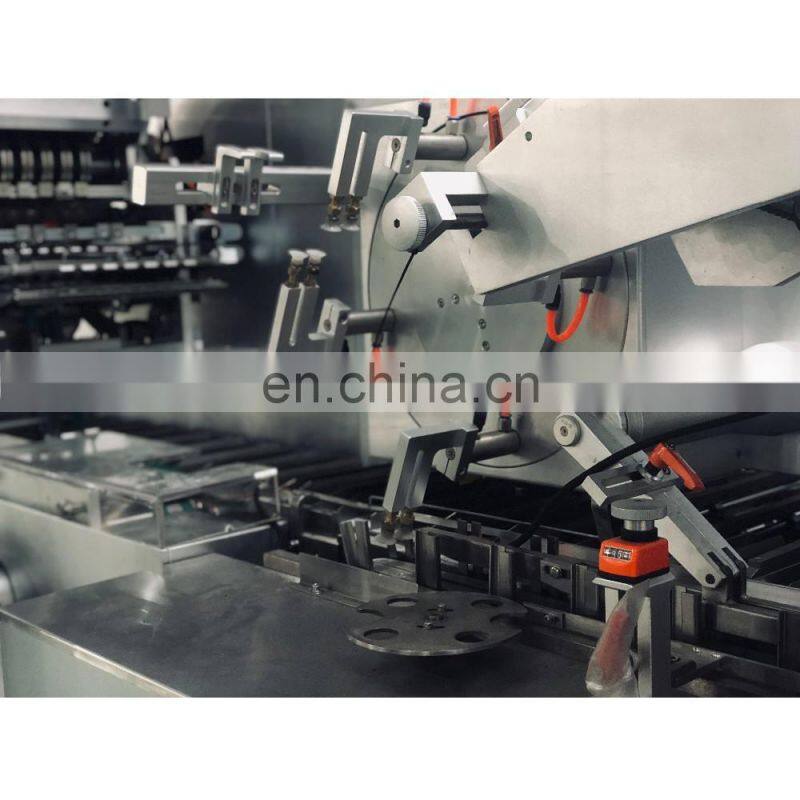

Details Images
