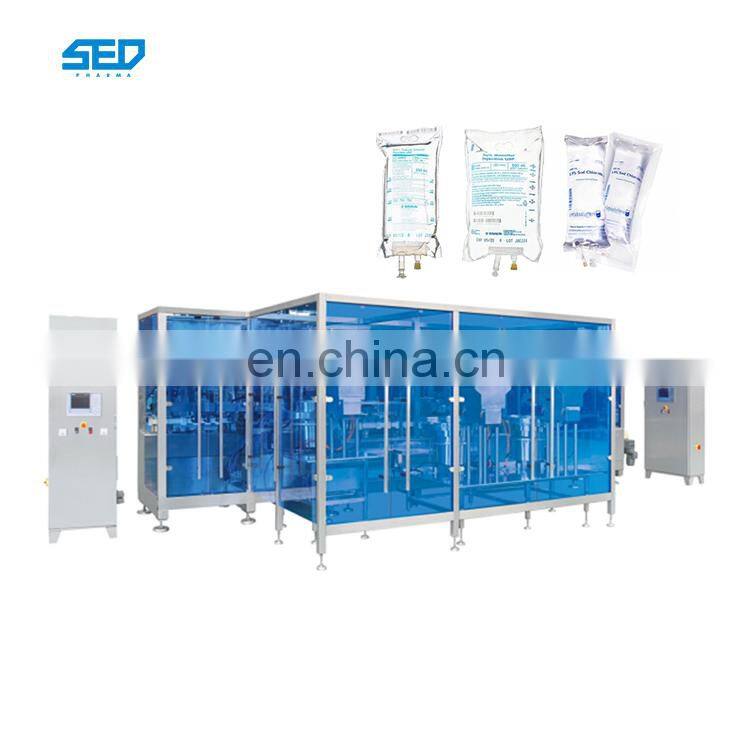

Pharmaceutical Non-pvc Soft Bag IV Infusion Bag Forming Printing Filling Sealing Machine Production Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non PVC Film IV Soft Bag Filling And Sealing Machine Production LineNegotiableMOQ: 1 -
3500 Bags / Hour Intravenous Solution IV Infusion Bag Filling Production LineNegotiableMOQ: 1
-
Pharmaceutical Non-pvc Film Bag Infusion IV Soft Bag Filling and Sealing Machine Production LineNegotiableMOQ: 1
-
Low Noise Level High Accuracy IV Solution Bag Filling and Sealing Machine Production LineNegotiableMOQ: 1
-
Good Price Automatic Medicine Capsule Filling Machine Vitamin Powder Capsule Filling MachineNegotiableMOQ: 1
Products Description
Product Name |
SED-3500RDX-J Soft Bag IV Solution Production Line |
Capacity |
Max 3500bags / hour, 500 ml |
Filling liquid |
Standard intravenous infusion |
Filling range |
500ml 1000ml |
Filling precision |
500ml±2.5ml 1000ml±3ml |
Power supply |
3 x 380 V +PE / N + 15 % / - 5 % |
Power consumption |
About 40kw |
Seal method |
Contact heating seal |
Welding temperature |
100°C – 170°C ± 2°C |
Temperature stability of filling system |
Max: 50° C |
Product Details

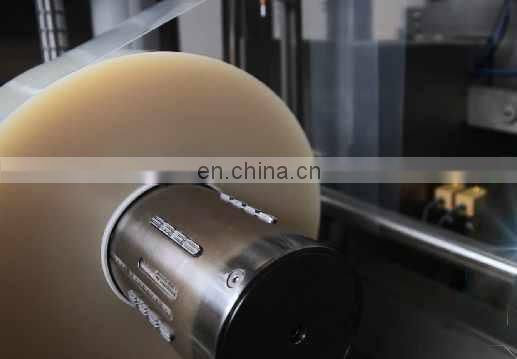

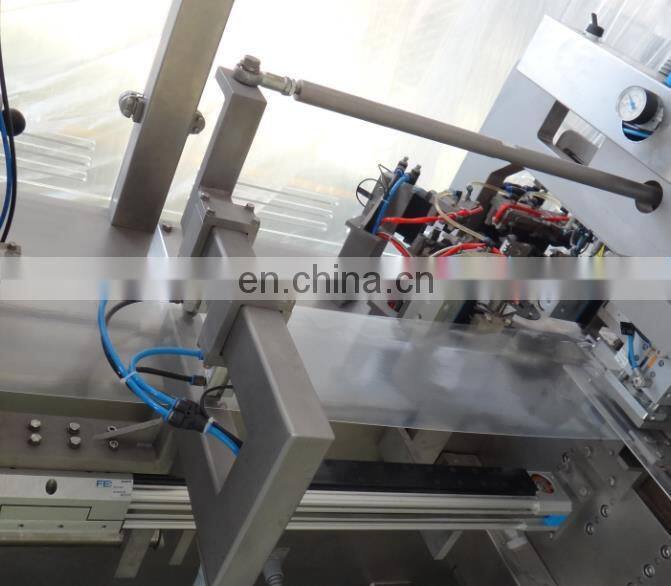

Film-setting station
Film tube is fastened with easily-operated gas tank. No need tool or manually fastened. Two film tube frames, which makes film changing easier and more convenient. Film constant tension system is adopted to ensure a constant film tension.
Printing station
Printing station includes three lines: lot number, date and expiry date. The lot number exchange does not need removing.
Mould-opening structure
It adopts mechanical mould-opening, which ensures successful mould-opening. Any other mould-opening types cannot ensure this.

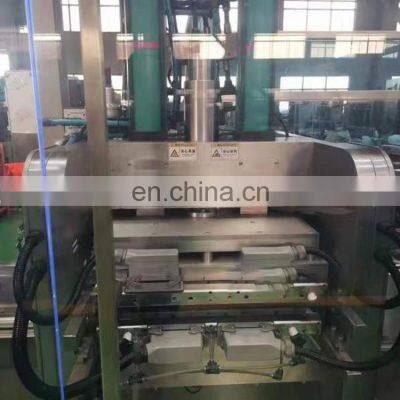

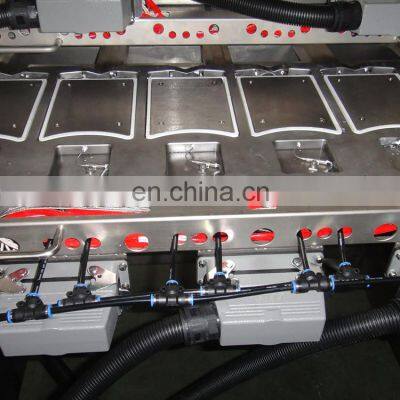

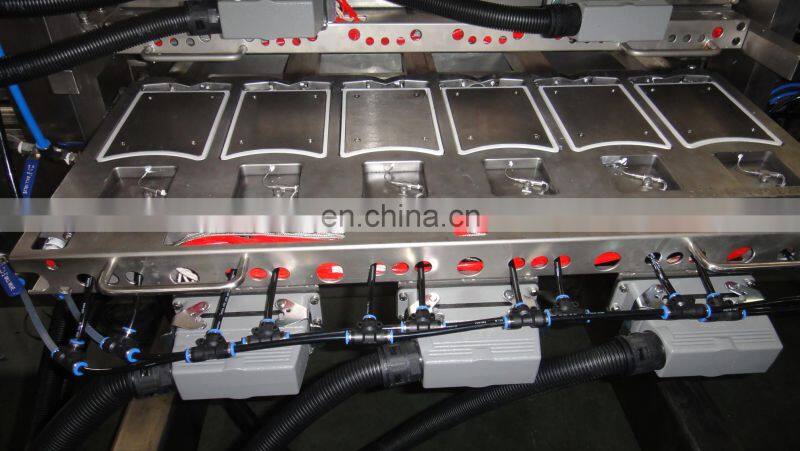

Bag-forming station
The welding and cutting are done by the same station, which ensure successful cut. There is no dislocation.
It adopts four round corner, which is more beautiful than right-angle.
Die cutting area has no other activity or wear parts. It ensures no mote on the die cutting station.

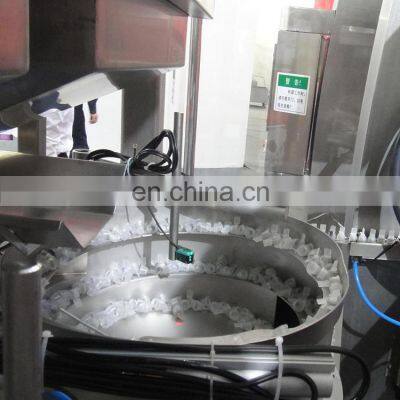

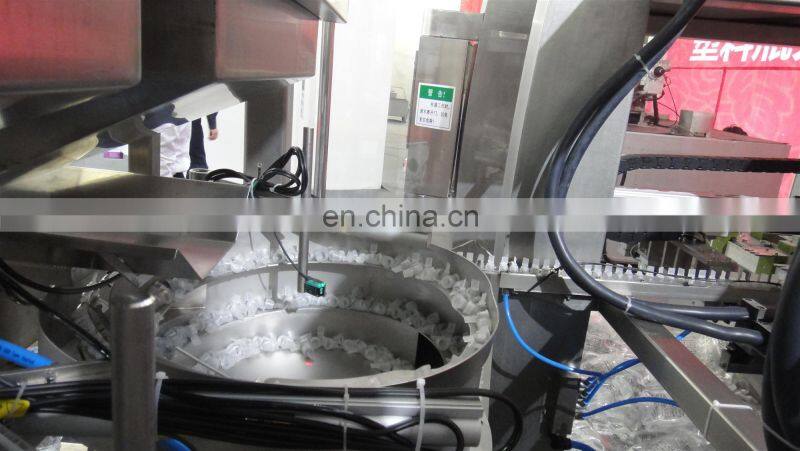

Port delivery station
There is an automatic bag-port lift, which ensures there are only few bag-ports on the shake plate. It can also check and feed-in automatically.
Port welding station
It adopts ahead heating and welding many times technology, which can satisfy different material. This can leave customer many choices.

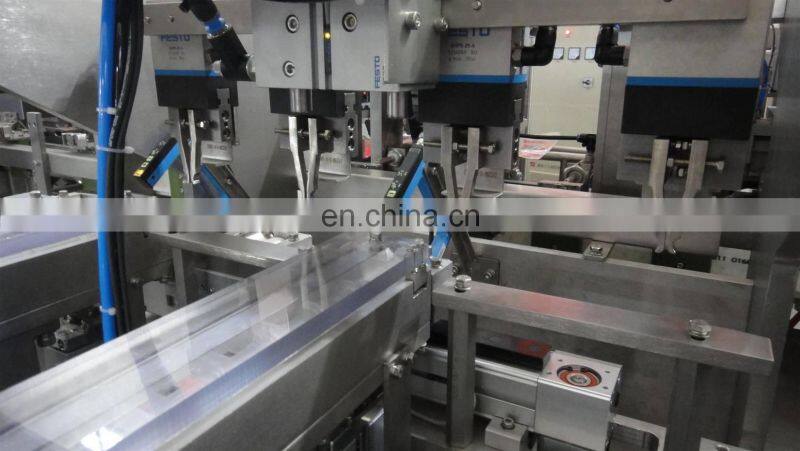

Bag delivery station
It adopts linear drive to deliver bags, which can locate directly. And it adopts gripping. These two can ensure no mote producing. At the same time, the unqualified bags can be eliminated at this station.
Filling station
It adopts isobaric constant-current measurement principle. It has convenient maintenance and high filling accuracy. Before welding, there is extrusion exhaust device which ensures the least air in the bag.
Cap delivery structure
As the same as the Bag-port deliver structure, there is an automatic bag-port lift, which ensures there are only few bag-ports on the shake plate. It can also check and feed-in automatically.
Sealing station
It adopts vacuum to extract the cap to ensure no mote producing. It adopts clamp to orientation which is more stable. This non-contact welding model ensures no mote producing. It can control the welding pressure and time, which ensures welding qualify. Cap-deliver adopts clean compressed air, which avoids mote producing because of extrusion.
