Good Price Automatic Medicine Capsule Filling Machine Vitamin Powder Capsule Filling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1995
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Easy Operation Automatic Granule Capsule Filling MachineNegotiableMOQ: 1 -
Durable Automatic Vitamin Powder Capsule Filling Machine Pharmaceutical Capsule Filling MachineNegotiableMOQ: 1
-
China Manufacturer Automatic Pharmaceutical Capsule Filling Machine Capsule Filling Machine For PelletsNegotiableMOQ: 1
-
Simple Operation Fully Automatic Soft Gelatin Capsule Filling Machines Health Products Capsule Filling MachinesNegotiableMOQ: 1
-
Electric Automatic Pellet Capsule Filling Machine For SaleNegotiableMOQ: 1
Recommend Products
Products Description

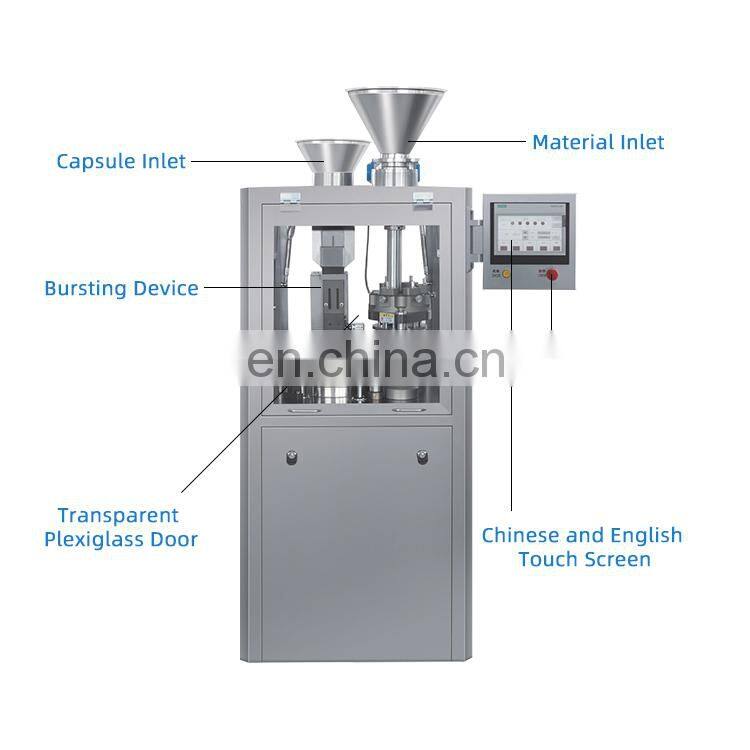

SED-800J-B adopts touch screen and PLC control system. The machine will make alarm and display in the touch screen when running malfunction or material lacking. It has function such as auto alarm dismissing, password setup, automatic parameter setup, dataprinting, reset, etc.
The cam and other main parts all adopt imported materials. And the machine is suitable for Powder, Granules and Pellet filling, special for Capsule size from 00# to 5#.
Model | SED-200J-B | SED-400J-B | SED-800J-B | ||
Filling capacity | 12000pcs per hour | 24000 capsules/hour | 48000 capsules/hour | ||
Capsule size | 00,0,1,2,3,4,5# safety capsule A-E | ||||
Power supply | 380/220V 50Hz | 380/220V 50Hz | 380/220V 50Hz | ||
Operating noise | <75DB(A) | <75DB(A) | <75DB(A) | ||
Dimension | 1000×710×1900mm | 1000×710×1900mm | 1000×900×2050mm | ||
Total power | 3KW | 3KW | 5KW | ||
Segment bores | 2 holes | 3 holes | 6 holes | ||
Weight | 600Kg | 600kg | 900kg | ||
Products Show
Product Details
New material hopper
The disc valve type feeding method is used with an additional vibration device to perform forced vibration feeding of medicine
powders with poor fluidity
powders with poor fluidity
Sowing rack
The closed design prevents waste capsules and dust from entering, ensuring fast and orderly seeding and accurate capsule
orientation.
orientation.

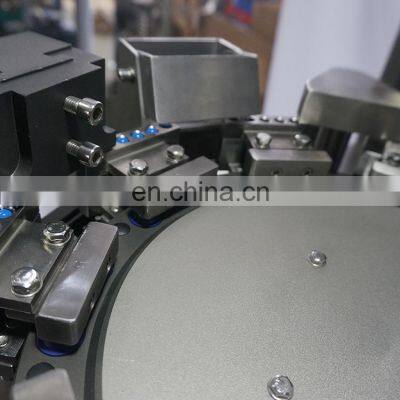

New type of turntable
It adopts a fully enclosed modular turntable, an ultra-low turntable station design, and an imported silicone seal ring to achieve
dust-proof effect.
dust-proof effect.
The filling base
The filling base adopts a negative pressure design, and the inside of the base is connected with the powder recovery device.
Filling combination
Modular design, pin positioning of the filling holder, no need to stop the machine to adjust the volume during production, and it is quick and convenient to change different types of filling rods.
Capsule locking mechanism
The card slot type lock capsule plate has flexible adjustability, and can be fine-tuned at any time if the capsule lock is not in place, without adjusting the working position rod.
Device for cleaning die holes
The use of purified compressed air and intermittent gas impact technology solves the problem that the powder is easy to stick to
the upper and lower die holes due to the strong hygroscopicity of the powder during the production process, which causes the
capsule to be unable to separate normally, and effectively improves the probability of capsule loading.
the upper and lower die holes due to the strong hygroscopicity of the powder during the production process, which causes the
capsule to be unable to separate normally, and effectively improves the probability of capsule loading.
Powder recovery device
Adopting negative pressure technology and an independent powder shunt system, during the production process, the small amount of
leaking powder in the filling base and the powder in the integrated powder inhaler are shunted and recovered to ensure that the
powder will not cross-contaminate with the recycled waste capsules. The powder can be directly produced by the machine again
without disinfection.
leaking powder in the filling base and the powder in the integrated powder inhaler are shunted and recovered to ensure that the
powder will not cross-contaminate with the recycled waste capsules. The powder can be directly produced by the machine again
without disinfection.
Feature
1. Innovated the separation device for powdered medicine and waste capsules which effective recovery of lost powder. The recovered powder can be directly filled and used, which reduces waste and increases economic benefits.
2. Equipped with a gated security system and a mechanical failure safety system.
3. Automatic alarm and automatic shutdown function when the hopper are short of capsules and powder.
4. The man-machine interface is fully functional, and the counting function is automatically displayed when the production is running. If necessary, the printer can be configured (production date, production batch number, production quantity, etc.)
5. Equipped with a jog control system, easy to assemble, disassemble and clean the mold, safe and convenient.
6. Automatic control of capsule closing and opening, safe and fast.
7. Equipped with an automatic mold cleaning system, when the upper and lower molds run to the tenth station, the upper and lower mold holes are automatically cleaned, and there is no dust in the upper and lower mold holes after cleaning. Effectively improve the effect of sowing capsules.
2. Equipped with a gated security system and a mechanical failure safety system.
3. Automatic alarm and automatic shutdown function when the hopper are short of capsules and powder.
4. The man-machine interface is fully functional, and the counting function is automatically displayed when the production is running. If necessary, the printer can be configured (production date, production batch number, production quantity, etc.)
5. Equipped with a jog control system, easy to assemble, disassemble and clean the mold, safe and convenient.
6. Automatic control of capsule closing and opening, safe and fast.
7. Equipped with an automatic mold cleaning system, when the upper and lower molds run to the tenth station, the upper and lower mold holes are automatically cleaned, and there is no dust in the upper and lower mold holes after cleaning. Effectively improve the effect of sowing capsules.
