Product Description

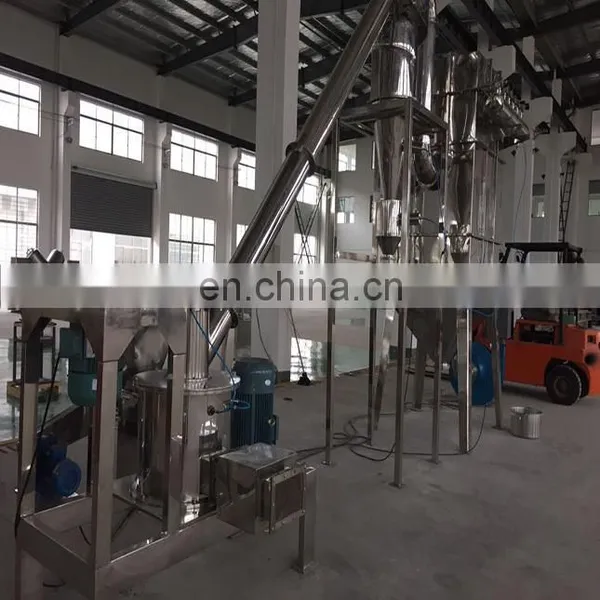

WFJ Series Micro Pulverizer
Summary:
This series of Micro Pulverizer is composed of three parts: main machine, auxiliary machine and electric control machine.The machine is equipped with a grading mechanism, which can make crushing and grading complete in one time.The negative pressure transportation makes the heat generated in the crushing chamber continuously discharged, so it is also suitable for the crushing of heat-sensitive materials.The machine has a wide range of application, continuous production process and adjustable output particle size.Can handle: chemical products, food, drugs, cosmetics, dyes, resins, shell materials and other materials crushing and grading.
Technical parameters:
MODEL | WFJ-15 | WFJ-18 | WFJ-36 |
capacity of producing (kg/h) | 10-200 | 20-450 | 60-1000 |
diameter of materials(mm) | <10 | <12 | <15 |
diameter of materiials outlet(mesh) | 80-320 | 80-450 | 80-450 |
totao power(kw) | 13.5 | 17.5 | 38 |
main revolution (r/min) | 4500 | 4480 | 4000 |
overall dimension(L×W×H)(mm) | 4200×1200×2800 | 4700×1250×2900 | 9000×1500×3800 |
Note: 1. The parameters in the above table are different due to material differences, so the difference in yield and discharge fineness is also large.
2. The air compressor for pulse dust collector is provided by the user.
