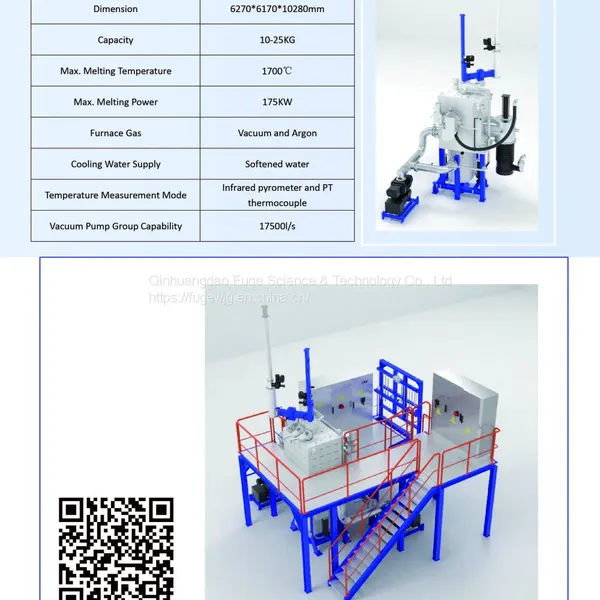

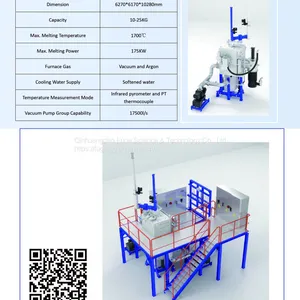

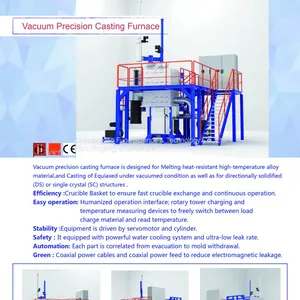

Vacuum Precision Casting Furnace
Vacuum precision casting furnace is designed for Melting heat-resistant high-temperature alloy material,and Casting of Equiaxed under vacuumed condition as well as for directionally solidified (DS) or single crystal (SC) structures .
•Efficiency :Crucible Basket to ensure fast crucible exchange and continuous operation.
• Easy operation: Humanized operation interface; rotary tower charging and temperature measuring devices to freely switch between load charge material and read temperature.
•Stability :Equipment is driven by servomotor and cylinder.
•Safety：It equipped with powerful water cooling system and ultra-low leak rate.
•Automation: Each part is correlated from evacuation to mold withdrawal.
•Green : Coaxial power cables and coaxial power feed to reduce electromagnetic leakage.
Specifications
Model |
FG-VIM-IC |
Capacity |
10-50KG |
Max. Melting Temperature |
1700℃ |
Max. Melting Power |
175KW |
Furnace Gas |
Vacuum and Argon |
Cooling Water Supply |
Soften water and distilled water |
Temperature Measurement Mode |
Infrared thermometer and PT thermocouple |
Vacuum Pump Group Capability |
17500l/s |
