FOTON G7 gasoline engine refrigerated minibus for sale
Main technical parameters of FOTON G7 single cab refrigerated minibus for sale
| CLW5032XLCB6 refrigerated minibus for sale | |||
| Product name | CLW5032XLCB6 refrigerated minibus for sale | Overall dimension(L*W*H)(mm) | 5320,×1695,2450,2470,2500 |
| Truck chassis model | BJ5039XXY-B6 | Cargo body dimension(L*W*H)(mm) | 2020,1690×1400×1440,1390(mm) |
| Total mass(kg)： | 2860 | Approach/departure angle (°) | 15/16(°) |
| Rated mass (kg)： | 505,570,700 | Front/rear suspension(mm)： | 1190/1080(mm) |
| Curb mass(kg)： | 2030(Kg) | Max speed(km/h)： | 150(km/h) |
| Emission standard | Euro 6 | ||
| Truck chassis main parameters | |||
| Truck chassis model | BJ5039XXY-B6 | Fuel type | Gasoline |
| Axle nos. | 2 | Front tread(mm)： | 1470 |
| Wheelbase (mm)： | 3050 | Rear tread(mm)： | 1465 |
| Driver cab seated person | 2,2+2,2+3 | Spring no. | -/4,-/5 |
| Tires nos. | 4*195R15C | Axle load(kgs) | 1370/1490 |
| Engine main parameters | |||
| Engine model | Manufacturer | Displacement (ml) | Power (kw) |
| 4K22D4M | Mitsubishi Motors Engine | 2378 | 118/160 |
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita.
If you're interested in our refrigerated minivan car, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

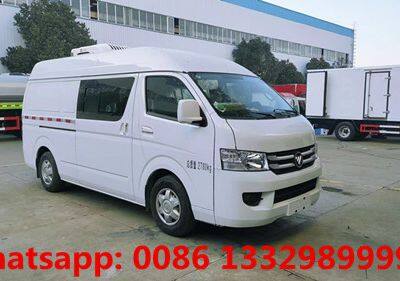

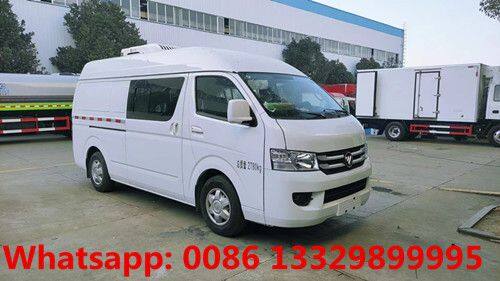

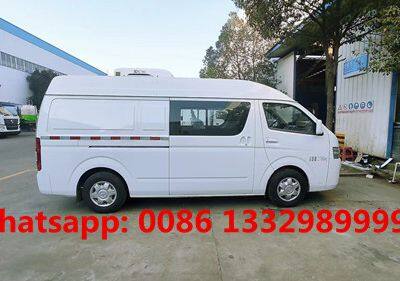

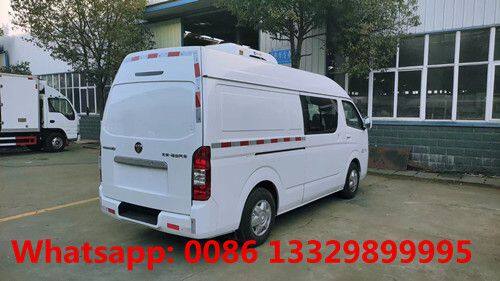

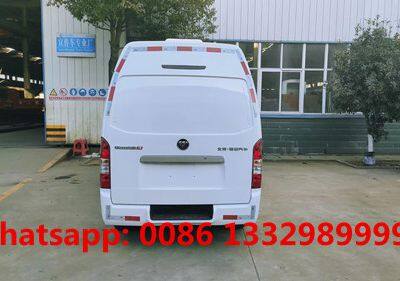

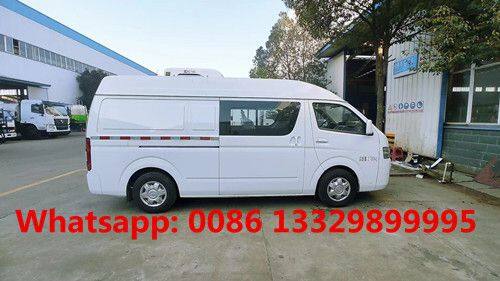

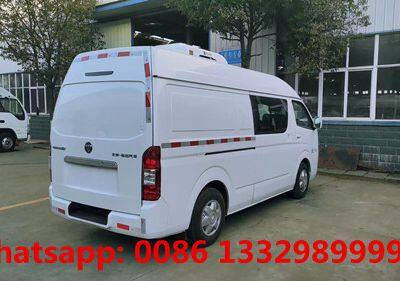

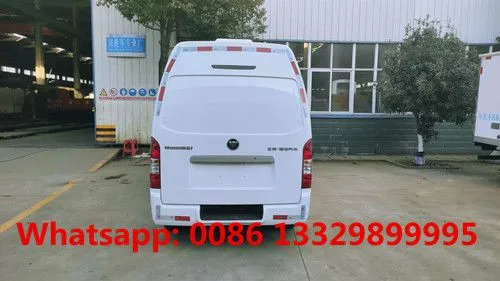

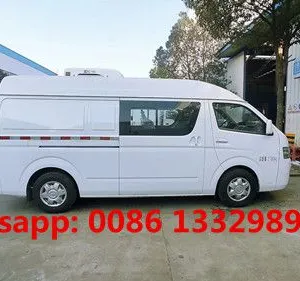

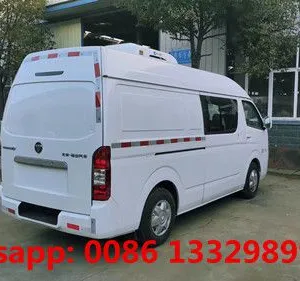

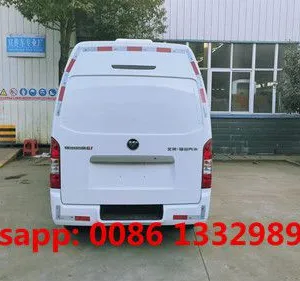

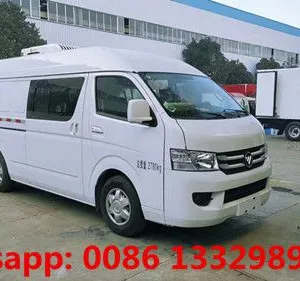

More pictures of FOTON G7 gasoline double cabs refrigerated minivan bus is as below.
HOT SALE!FOTON G7 LHD gasoline refrigerated minivan bus for sale
TRUCK MODEL; CLW5032XLCB6
Truck chassis model: BJ5039XXY-B6
Overall dimension(L*W*H): 5320×1695×2470/2500（mm）
cold van box dimension(L*W*H): 2920×1400×1440（mm）(single-row cab)
cold van box dimension(L*W*H):：2020/1690×1400×1440（mm）(double-row cab)
other devices of FOTON G7 refrigerated minivan is as below：
3050mm wheelbase,
total mass：2860kg，
curb mass：2030kg，
rated mass： 700kg/505kg/570kg；
FOTON G7 refrigerated minivan adopts FOTON G7 van high-top driver cab, 2 seats (single-row cab); 2+2/2+3(double-row cab), Mitsubishi Motors Engine 4K22D4M gasoline 160hp Euro 6 engine, (displacement: 2400ml/power: 118KW), 5 speed manual gearbox, 195R15C tires*4, double wishbone torsion bar spring independent front axle, steel spring rear axle, original air conditioner, power steering, electric windows and doors, Remote Control Lock, Automatic brake adjustment arm ，ABS+EBD, oil cut braking(front disk braker), Electronic adjustable headlamp, rear blind window, insulation compartment partition at the driver cab, etc.

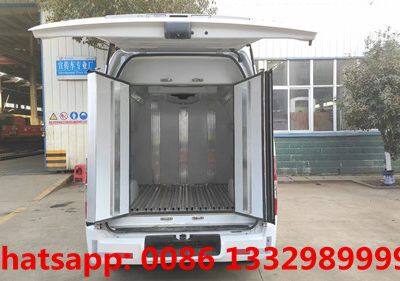

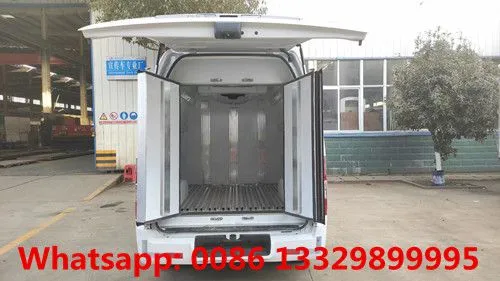

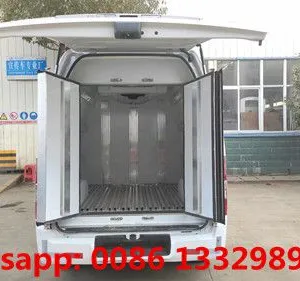

The cold van box devices: the refrigerated van box manufactured by Chengli Company adopt siquid adsorption Hydro-pressure adsorption Integrating molding production lines, so the thermal insulation properties reach China A standard. The interior of the van box adopts the latest nano glass fiber reinforced plastics (FRP)（No light absorption， good heat insulation property, hardness high, anti-oxidation）; the middle Heat insulating layer is with XPS Extruded Polystyrene Board. There is LED nigh light inside the van body box, double rear doors,(stainless steel edge, Stainless steel lock hinges),door edge with labyrinth rubber sealings.
The refrigerated reefer unit: standard with -5℃ or -15℃. Choose to install Chinamade van top-mounted refrigerated reefer unit.
The refrigerated truck is used for transporting pharmaceutical products. Then the refrigerated truck for pharmaceutical products transportation need to install 5-side vent slots, l temperature-humidity recorder, and dual-temperature refrigerated reefer unit.
