Help CenterTiller Head 0-5V Forklift Parts
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1997
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Pallet Truck T600 Tiller Head 24VNegotiableMOQ: 1 -
Electric Tiller Head 24v Control Handle With Best ServiceNegotiableMOQ: 1
-
Handle for Electric Pallet Truck and Electric StackerNegotiableMOQ: 1
-
CURTIS Electric Vehicle Tiller HeadNegotiableMOQ: 1
-
Part Number 50468260 UsedNegotiableMOQ: 1
Product Description
Description:

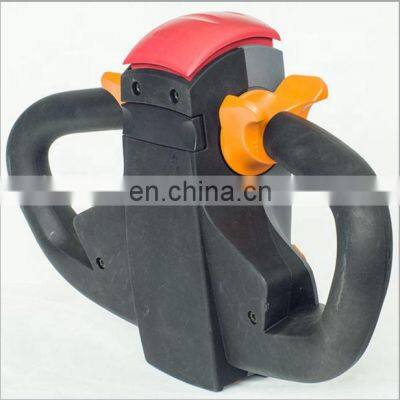

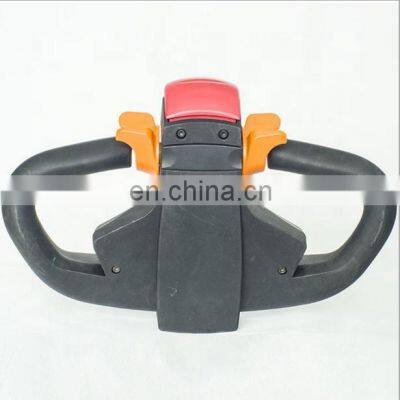

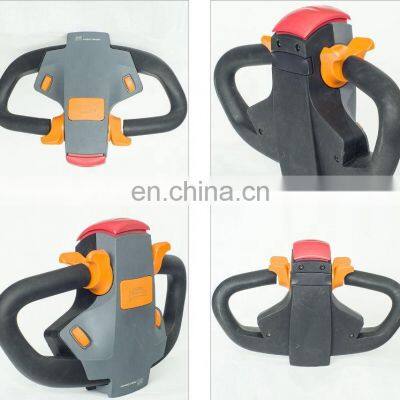

Compatible with FREI / CURTIS TEMO600, the NOCO-600 series are tiller heads packaged in a rugged housing that offer an attractive
and practical method of controlling electric vehicles.
The tiller head has space for two operating switches, covering the basic functions in a tiller head controlled vehicle (for
example, raise and lower). A range of switches are available including different buttons, rocker switches, etc. From these options
you can customise design to fit your requirements. For more details, please take a look at the datasheet of tiller head NOCO-600
(PDF format).
* Button/rocker switch/switches: * Max. breaking capacity 48VDC / 1A
* Min. breaking capacity 24VDC / 10mA
* Analogue switches: * Max. breaking capacity 48VDC / 4mA switching current
* Wiper current < 0.1mA
* Signal horn: Micro-switch NO with Connector 2-pin
* Optimum switch current: 5mA / 5V – 1.5A / 24V
* Throttle Unit: * Supply * 24V – 48V nominal
* 14V – 69V maximum
* Output * 0 – 5V
* Forward (B+, 24-48V)
* Reverse (B+, 24-48V)
Compatible with FREI / CURTIS TEMO600, the NOCO-600 series are tiller heads packaged in a rugged housing that offer an attractive
and practical method of controlling electric vehicles.
The tiller head has space for two operating switches, covering the basic functions in a tiller head controlled vehicle (for
example, raise and lower). A range of switches are available including different buttons, rocker switches, etc. From these options
you can customise design to fit your requirements. For more details, please take a look at the datasheet of tiller head NOCO-600
(PDF format).
* Button/rocker switch/switches: * Max. breaking capacity 48VDC / 1A
* Min. breaking capacity 24VDC / 10mA
* Analogue switches: * Max. breaking capacity 48VDC / 4mA switching current
* Wiper current < 0.1mA
* Signal horn: Micro-switch NO with Connector 2-pin
* Optimum switch current: 5mA / 5V – 1.5A / 24V
* Throttle Unit: * Supply * 24V – 48V nominal
* 14V – 69V maximum
* Output * 0 – 5V
* Forward (B+, 24-48V)
* Reverse (B+, 24-48V)
Our Company
Related products
Our factory
Technical Parameter
Model Number |
T600 |
Signal horn |
Micro-switch NO with Connector 2-pin |
Product Name |
Tiller Head |
Optimum switch current |
5mA / 5V – 1.5A / 24V |
Button |
6 |
Apply to |
Electric Pallet/Forklift |
Function |
Horn,Forward,Reverse |
Quality |
Excellent |
