REMA Control Handle With Traction Switch Board
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1997
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huanxin Control Handle T600 Tiller Head Used for Electric Forklift Stacker With ET126 ThrottleNegotiableMOQ: 1 -
REMA Tiller Head 0-5V Electric Forklift PartsNegotiableMOQ: 1
-
Electric Forklift Parts Control Handle New ProductsNegotiableMOQ: 1
-
OEM Power Electric Forklift Stacker Control Handle Control System Spare PartsNegotiableMOQ: 1
-
Electric Vehicle Control Tiller Head Forklift Handle AssemblyNegotiableMOQ: 1
Product Description
Description:

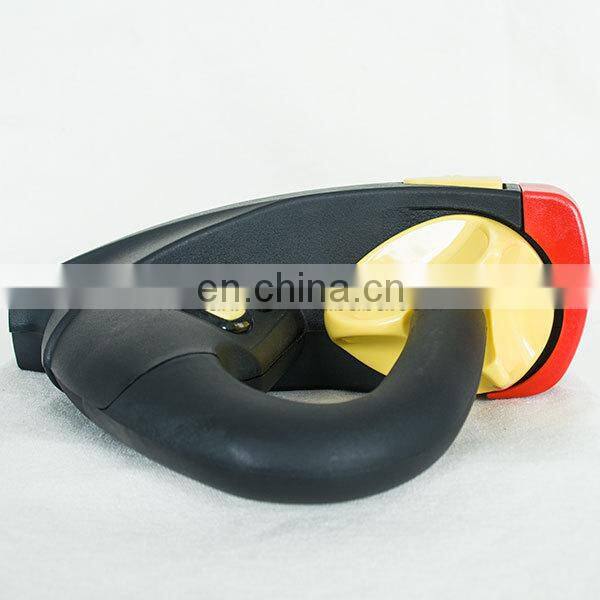

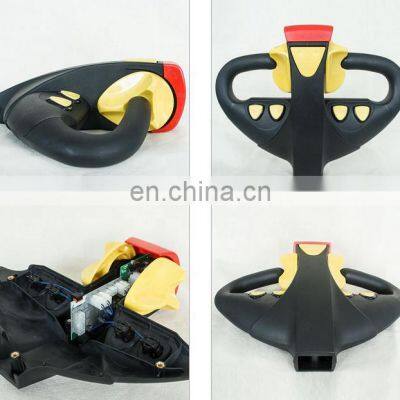

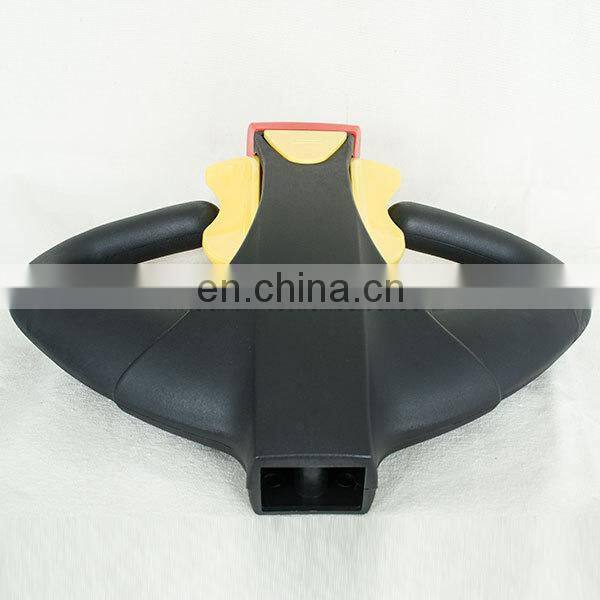

This tiller head model TH-1 is packaged in a rugged housing that offer an attractive and practical method of controlling 24V
electric vehicles. The tiller head TH-1 is widely applied in electric material maneuvering vehicles like forklift and pallet
stacker, fully compatible with REMA / CURTIS TH-1.
Equipped with an emergency reverse switch, electronic throttle, and lift and lower switches rated at IP-67, these tiller heads are
ideal for both indoor and outdoor vehicles such as pallet jacks, walkies, stackers and tow tractors.

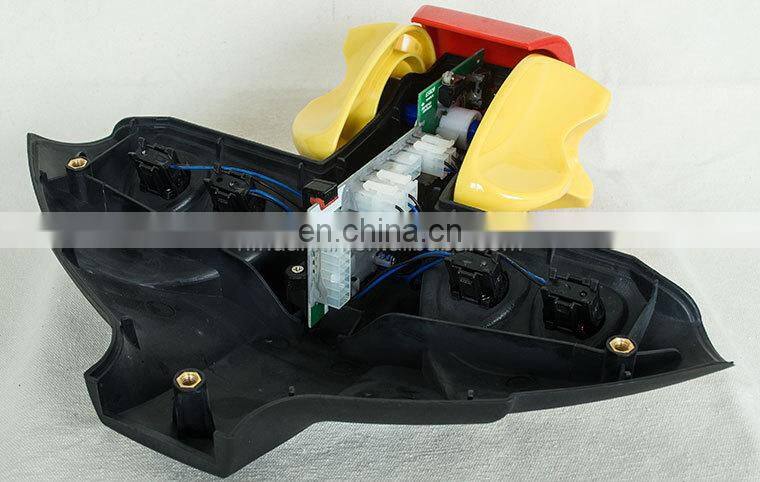

We supply also the traction switch board of TH-1.
Specifications:
* Model: TH-1
* Operating Voltage: 24V DC nominal (19.2V DC - 28.8V DC, absolute)
* Throttle Output: 0.2 - 5.0V DC nominal (0.15V DC - 5.3V DC, absolute)
* Maximum current, output switches: 2A each (lift, lower, horn, turtle)
* Net weight: 1.6 kg
Features:
* Ergonomic design maximizes vehicle and operator productivity while minimizing operator fatigue.
* Nylon PA6-GF30 housing and sealed electronics make the tiller head ideal for use in all types of environments - the tiller head
can even be used reliably in the rain.
* Optional proportional switches provide more precise lift and lower control, thereby improving safety.
* A single electrical connector makes wiring easy to install, reducing vehicle assembly costs and eliminating costly wiring
errors.
* TH-1 tiller head integrates seamlessly with applicable CURTIS motor controllers, contactors, and instrumentation.
This tiller head model TH-1 is packaged in a rugged housing that offer an attractive and practical method of controlling 24V
electric vehicles. The tiller head TH-1 is widely applied in electric material maneuvering vehicles like forklift and pallet
stacker, fully compatible with REMA / CURTIS TH-1.
Equipped with an emergency reverse switch, electronic throttle, and lift and lower switches rated at IP-67, these tiller heads are
ideal for both indoor and outdoor vehicles such as pallet jacks, walkies, stackers and tow tractors.
We supply also the traction switch board of TH-1.
Specifications:
* Model: TH-1
* Operating Voltage: 24V DC nominal (19.2V DC - 28.8V DC, absolute)
* Throttle Output: 0.2 - 5.0V DC nominal (0.15V DC - 5.3V DC, absolute)
* Maximum current, output switches: 2A each (lift, lower, horn, turtle)
* Net weight: 1.6 kg
Features:
* Ergonomic design maximizes vehicle and operator productivity while minimizing operator fatigue.
* Nylon PA6-GF30 housing and sealed electronics make the tiller head ideal for use in all types of environments - the tiller head
can even be used reliably in the rain.
* Optional proportional switches provide more precise lift and lower control, thereby improving safety.
* A single electrical connector makes wiring easy to install, reducing vehicle assembly costs and eliminating costly wiring
errors.
* TH-1 tiller head integrates seamlessly with applicable CURTIS motor controllers, contactors, and instrumentation.
Our Company
Related products
Our factory
Technical Parameter
Model Number |
REMA |
Signal horn |
Micro-switch NO with Connector 2-pin |
Product Name |
Tiller Head |
Optimum switch current |
5mA / 5V – 1.5A / 24V |
Button |
4 |
Apply to |
Electric Pallet/Forklift |
Function |
Horn,Forward,Reverse |
Quality |
Excellent |
