Help CenterALBIRGHT DC CONTACTOR SW80 125A 48V FOR SIGHTSEEING CART
Related Products
-
Domestic Top Seller 200A 24V 36V 48V 72V MZJ-200DNegotiableMOQ: 1 -
Domestic Popular dc Contactor MZJ-200D for Electric VehicleNegotiableMOQ: 1
-
Single Pole Single Throw dc Contactor 400A 12V 24V 36V 48V 72VNegotiableMOQ: 1
-
dc Contactor Double Breaking Single Pole ZJ400DNegotiableMOQ: 1
-
400A 12V TO 72V DOMESTIC DC FORKLIFT CONTACTORNegotiableMOQ: 1
The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)Uninterrupted current: no or infrequent load switching requirements.

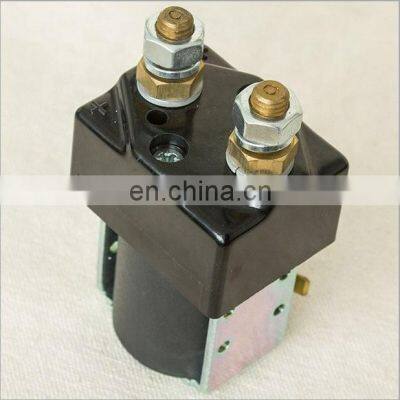

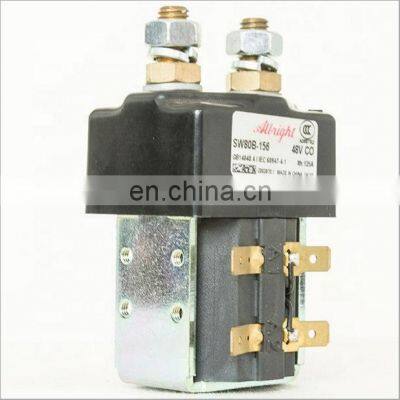

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
Model |
Working voltage |
Ambient temperature |
Net weight |
SW80B-156 |
48V 12V, 24V, 36V, 60V, 72V |
–40˚C to +60˚C |
0.35 kg |
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
CERTIFICATE
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
