Product Description
Model
ZJ400D
Voltage Options (Volts)
12V, 24V, 36V, 48V or 72V
Ambient temperature
-25~+40℃
Altitude range
0~2000m
Max.relative humidity
90% at 25℃
Voltage fluctuating
0.7~1.1Ue
Main rated load current of contact circuit (amps)
400A
Dielectric (volt) strength
50Hz 1000V AC 1min
Current volt drop of main contact at 400A
Not above 80mV
Dimensions (LxWxH )
104.5x65x106 mm
Continual working duration
8h
Mechanical life
100,000 times

Overview

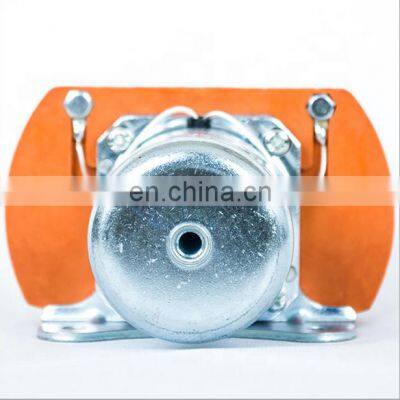

The ZJ400D contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. ZJ400D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
