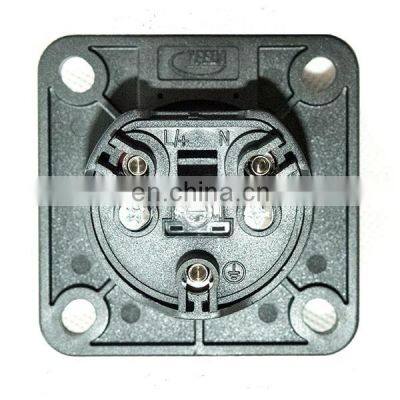

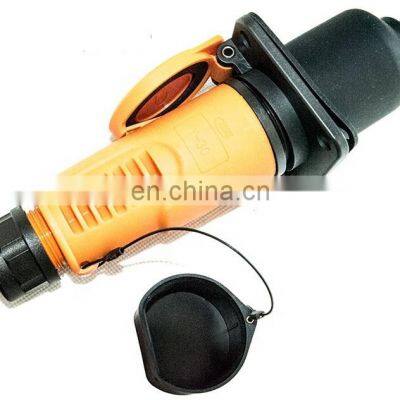

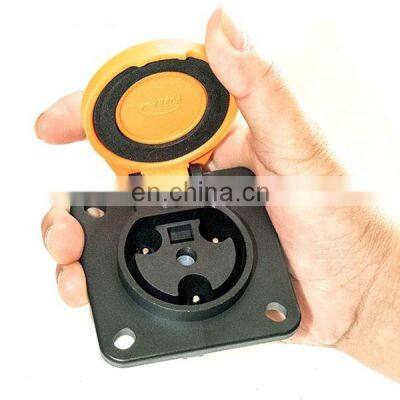

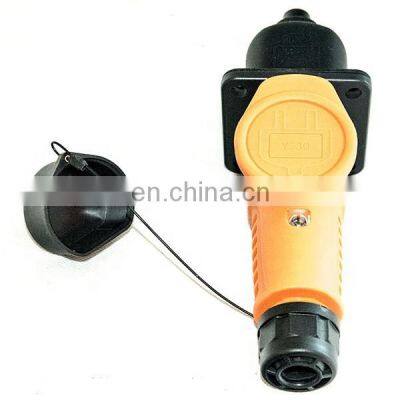

Power Connector YEEDA Y-30, 220V AC / 16A
Plug + Socket, Waterproof Cover Protection, Internal Switch
Plug + Socket, Waterproof Cover Protection, Internal Switch
Key features
- Brand: YEEDA
- Model: Y-30 power connector, plug & socket
- 3-Pole AC connector with internal switch:

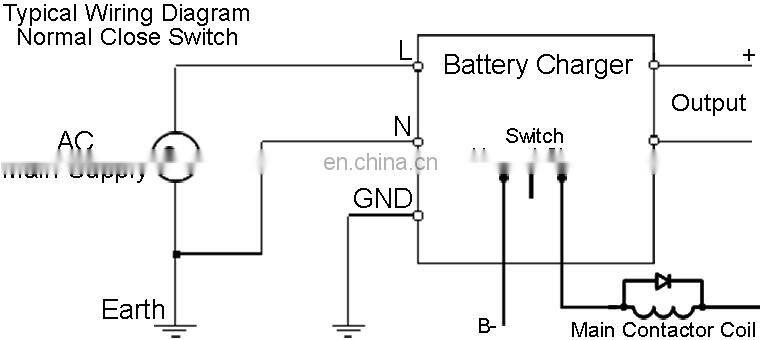

- 3-Pole: L, N and GND. Wiring recommendation: the terminal "L" should be connected to the unearthed conductive part of AC main supply, the terminal "N" should be connected to the earthed conductive part of AC main supply, and "GND" should be connected to the safety ground of battery charger.
- Internal switch, two options available:
- Normal open
- Normal close
- Nominal Current Rating: 16A
- Working Voltage:
- 110V: 100-120V AC
- 220V: 200-240V AC
- IP54 Waterproof Design
Hefei Huanxin Technology Develop Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.
Package:Normally we use the standard exporting packaging. We also can according to clients request .
- By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
- By Air: Delivery from the Shanghai airport to customer’s destination city air port.
- By Sea: Delivery from the Shanghai sea port .
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%
