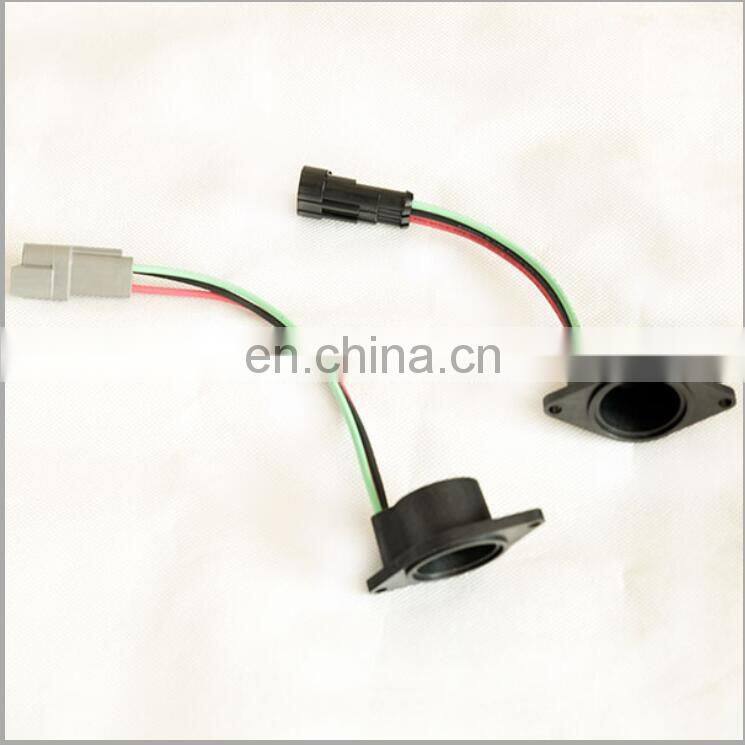

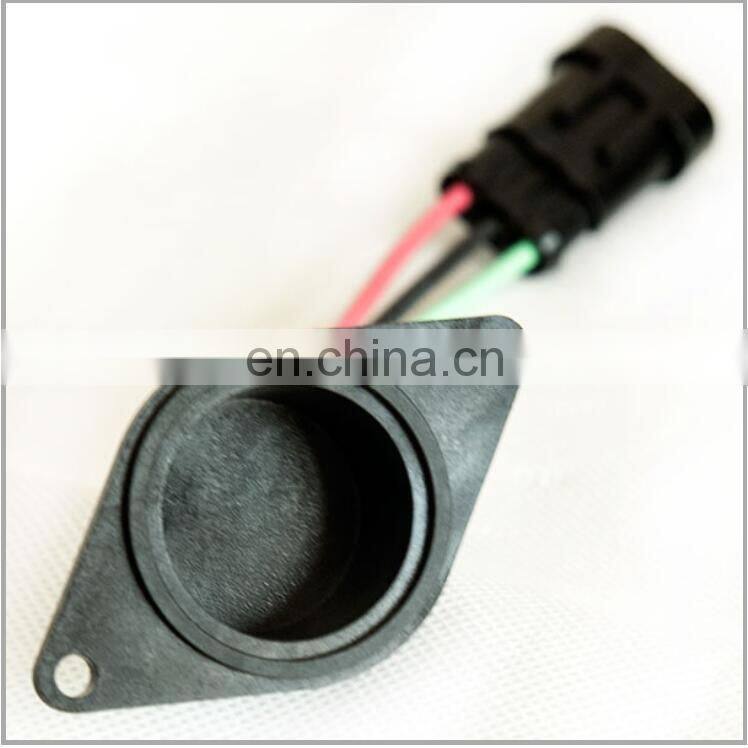

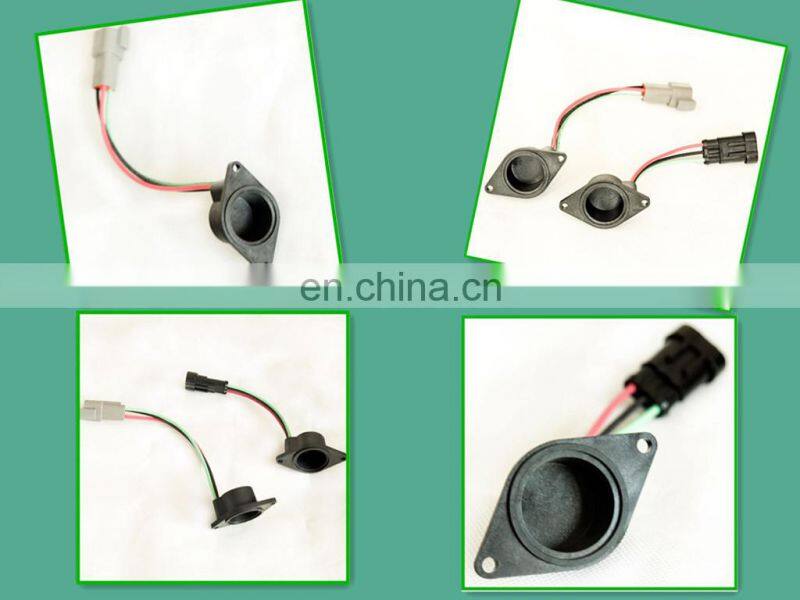

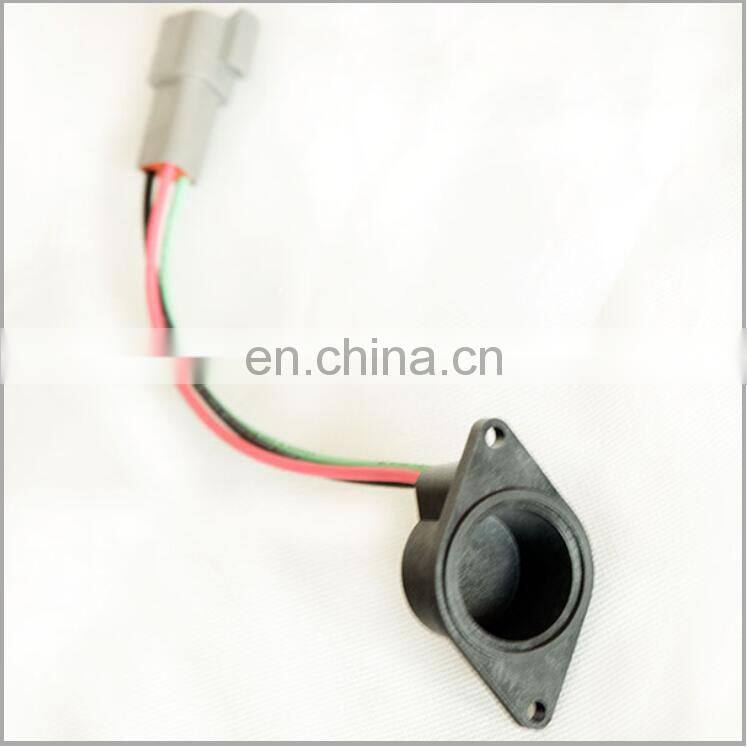

Eagle Electric Golf Cart Motor Speed Sensor With Magnet

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Hall effect sensor can be used to sense the speed and position of a rotating motor.
The DC motor speed sensors are based on using the Hall element to sense the change influx in the air gap between a magnet and a
notch in a rotating shaft. The main advantage of Hall effect speed sensors is that they are a non-contact sensor that is not
limited by mechanical wear. The circuitry inside the sensor typically consists of a pulse counter to provide an output signal that
can be directly connected to the motor controller.

Specifications:

* Applied to: AMD (KDS) DC motors (speed sensor / encoder, widly used in Club Car, EZGO, John Deere, Eagle and Lvtong golf carts
and mobility vehicles)
* Operating temperature range: -50°C to +125°C
* Connector: DT triangle type or AMP flat type 3-Pin waterproof connector

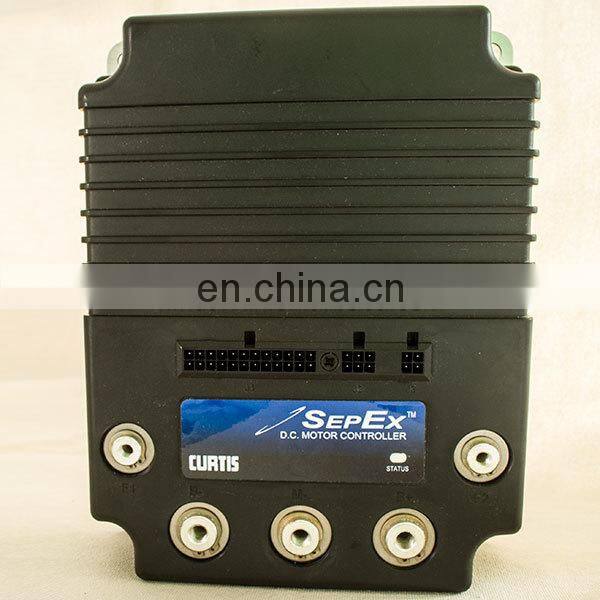

* Wiring (example: DC SepEx Motor Controller Assemblage, Model: 1268-5403): * Red wire: power +
* Black: power -
* Green: speed signal

* Installation position: rear end of motor (see example: XP-2067-S DC SepEx motor or ZSQ48-3.8-T DC SepEx motor. Please pay
attention to the difference of connectors.)

Specification

Applied to	DC Motor
Red wire	power +
Black wire	power-
Green wire	speed signal
