Club Car / EZGO Golf Cart Motor Part Speed Sensor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description
Specifications:
* Model: NOCO-SS-2020
* Applied to: AMD (KDS) DC motors (speed sensor / encoder, widly used in Club Car, EZGO, John Deere, Eagle and Lvtong golf carts
and mobility vehicles)
* Operating temperature range: -50°C to +125°C
* Connector: DT triangle type or AMP flat type 3-Pin waterproof connector
* Wiring (example: DC SepEx Motor Controller Assemblage, Model: 1268-5403): * Red wire: power +
* Black: power -
* Green: speed signal
* Installation position: rear end of motor (see example: XP-2067-S DC SepEx motor or ZSQ48-3.8-T DC SepEx motor. Please pay
attention to the difference of connectors.)
* Model: NOCO-SS-2020
* Applied to: AMD (KDS) DC motors (speed sensor / encoder, widly used in Club Car, EZGO, John Deere, Eagle and Lvtong golf carts
and mobility vehicles)
* Operating temperature range: -50°C to +125°C
* Connector: DT triangle type or AMP flat type 3-Pin waterproof connector
* Wiring (example: DC SepEx Motor Controller Assemblage, Model: 1268-5403): * Red wire: power +
* Black: power -
* Green: speed signal
* Installation position: rear end of motor (see example: XP-2067-S DC SepEx motor or ZSQ48-3.8-T DC SepEx motor. Please pay
attention to the difference of connectors.)
Related products

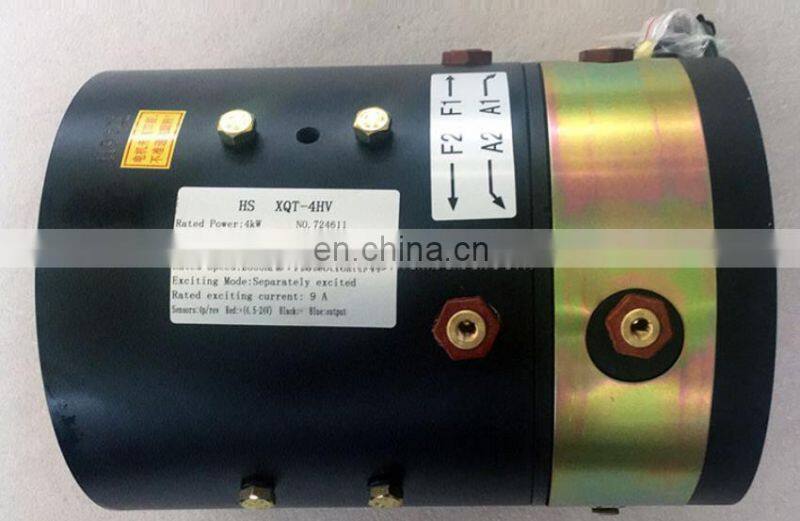

XQT-4HV Motor
