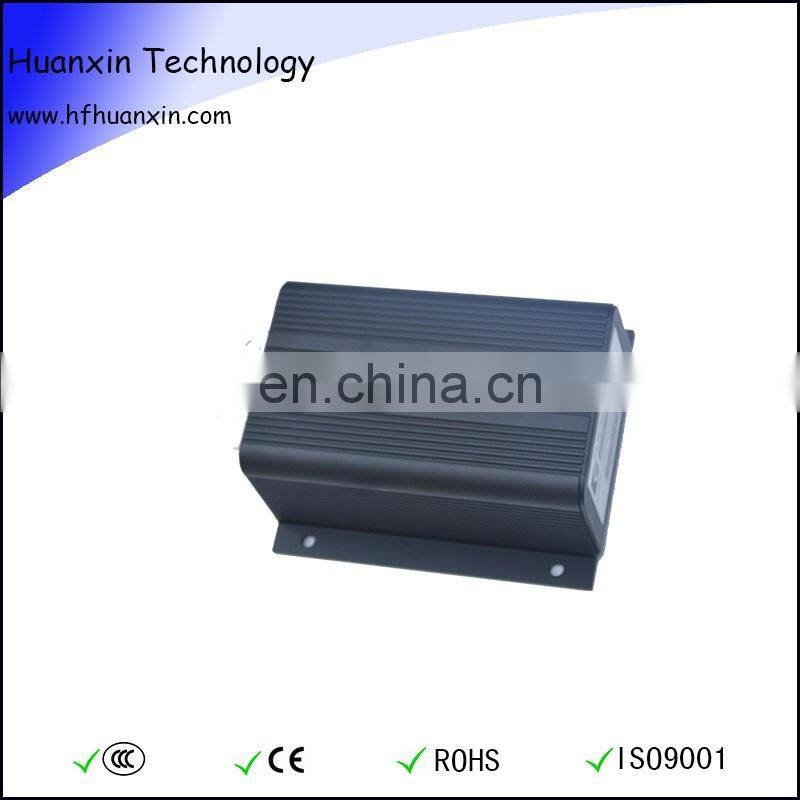

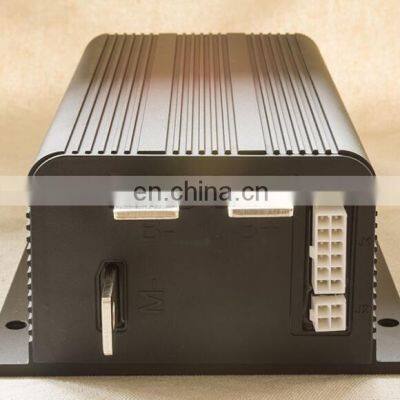

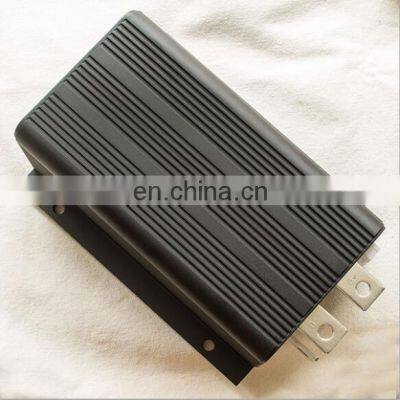

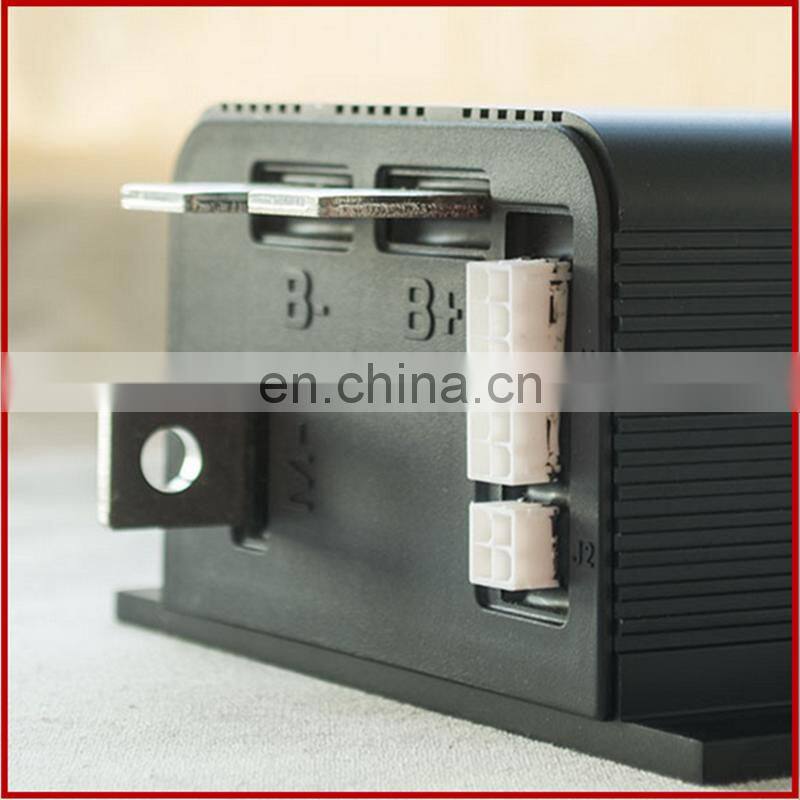

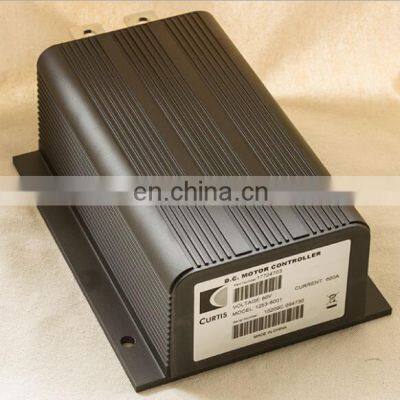

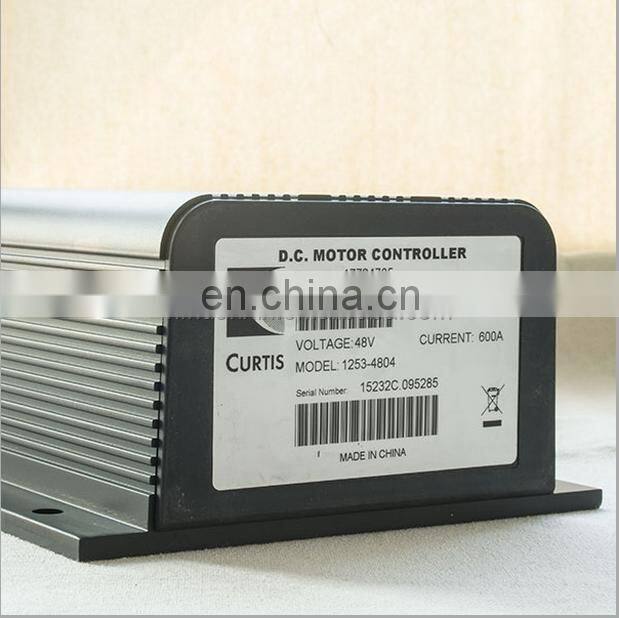

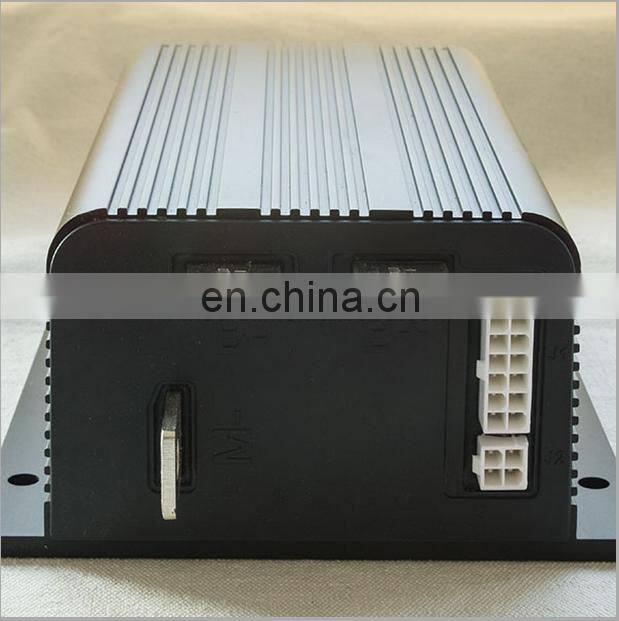

Curtis Original Version 1253c-4401 Controller

Product Application

The CURTIS 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts, articulating/telescoping booms), and other industrial vehicles.

The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of programmable parameters.

The 1253 controller is fully programmable through a CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station. The programming device provides diagnostic and test capability in addition to configuration flexibility.

Main Features

CURTIS Model: 1253C-4401
Norminal Battery Voltage (Volts): 24V-36V
Amature Current Limit (amps): 400
Programmable Undervoltage Cutback (Volts): 32-42
Overvoltage Cutoff (Volts): 60
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage: 28–60V DC
KSI input current (no contactors engaged):
60 mA without programmer
130 mA with programmer

FAQ:

Q:Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q: How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q:Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

 Q:How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%
