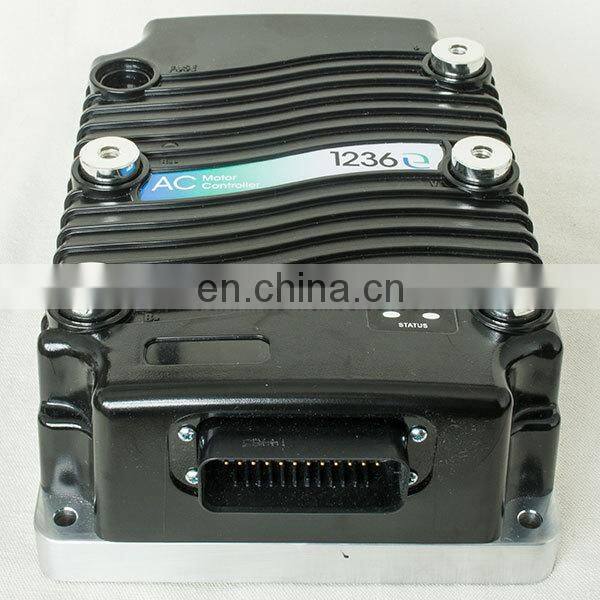

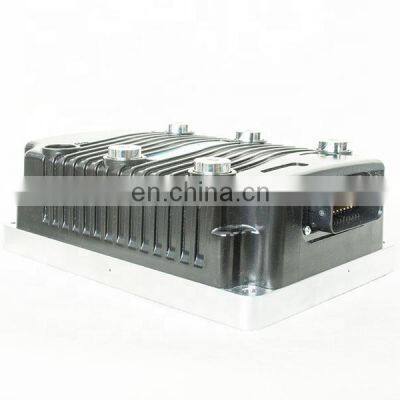

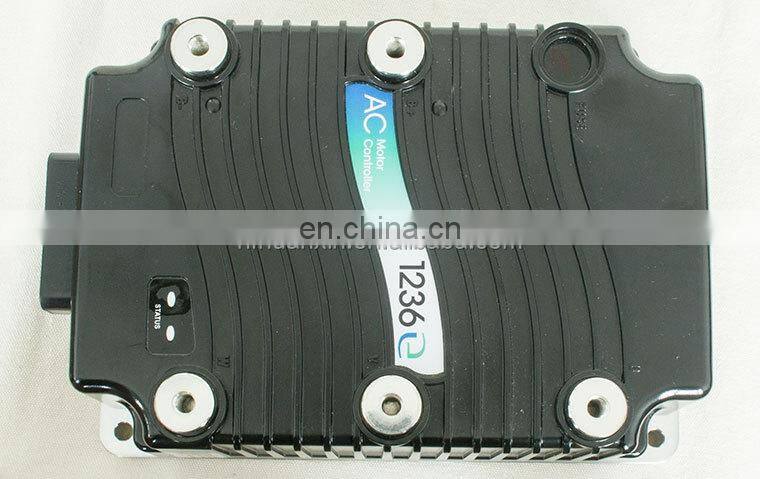

Curtis 1236E-5621 1236 AC Motor Controller 48V 600Amp Golf Cart Driver
- 1000 per Month
- T/T Credit Card
- Curtis AC Motor Controller 1232E-2321 1232 Programmable 24V 250A
- 24V 36V DC curtis ev conversion controller 1204M-4201
- curtis EV conversion kit with curtis controller 1204M-4201 for golf cart
- 1232E-2121 Speed Curtis Programmable AC Motor Controller For Golf Carts
- 1238E-6521 CURTIS AC Motor Controller 550A Controller 48V 60V 72V
- 1204M-4201 24V / 36V - 275A for Electric cart
Product Description
CURTIS 1236E AC induction motor controllers deliver smooth power unlike any previous vehicle control system. They provide unprecedented flexibility and power through inclusion of a field-programmable logic controller embedded in a state-of-the-art motor controller.The embedded logic controller runs a fully functional field-oriented AC motor control operating system (OS) that can be user-tailored via parameter modification. The OS also contains logic to execute OEMdeveloped software, called VCL, that can be used to enhance the controller capabilities beyond the basics.VCL (Vehicle Control Language) is an innovative software programming language developed by CURTIS. Many electric vehicle functions are uniquely built into the VCL code, and additional functions can be OEM-controlled using VCL code. VCL opens new avenues of customization, product differentiation, and responsiveness to the market.The CAN bus communications included in the 1236E, as well as in many other CURTIS products, allow these AC induction motor controllers to be part of an efficient distributed system. Inputs and outputs can be optimally shared throughout the system, minimizing wiring and creating integrated functions that often reduce the cost of the system. CURTIS 1236 controllers are the ideal solution for traction, hoist, dual drive, and other motor drive and vehicle control needs.The 1236E controllers are fully programmable through the CURTIS Model 1313-4431 Handheld Programmer or 1314 PC Programming Station. The programmer provides diagnostic and test capability in addition to configuration flexibility.
Key Features:
CURTIS Model: 1236E-5421(upgraded version of 1236-5401)
Nominal input voltage: 48V (default setting) or 36V
2 Minute RMS Current Rating (amps): 450
S2-60 Minute RMS Current Rating (amps): 205
MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C

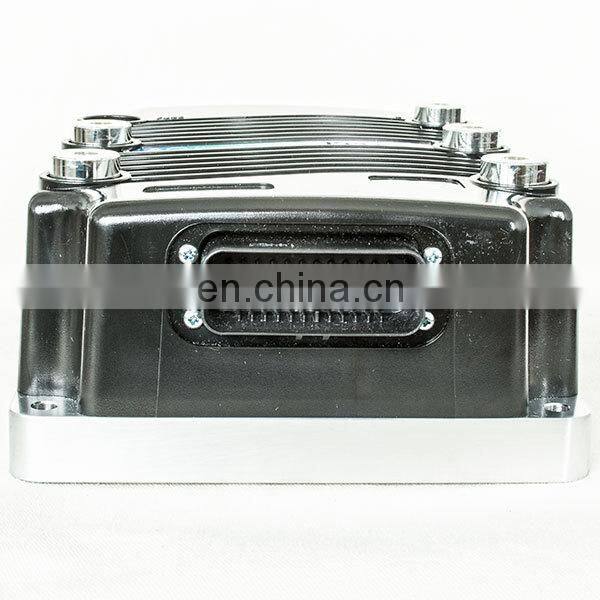

All low power connections are made through a single 35-pin AMPSEAL connector
Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, etc.
Operating Ambient Temperature Range: -40°C to 50°C
Internal Heatsink Operating Temperature Range: -40°C to 95°C
Storage Ambient Temperature Range: -40°C to 95°C
Package environmental rating: IP65
Dimensions: L232xW165xH85 mm
Specifications:
PWM operating frequency: 15 kHz
Electrical isolation to heatsink (min.): 500 VAC
PWM operating frequency: 10 kHz
Maximum encoder frequency: 15 kHz
Maximum controller output frequency: 300 Hz
Heatsink overtemperature cutoff: linear cutback starts at 85°C; complete cutoff at 95°C
Heatsink undertemperature cutoff: complete cutoff at -40°C
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
our service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%. be less
.
