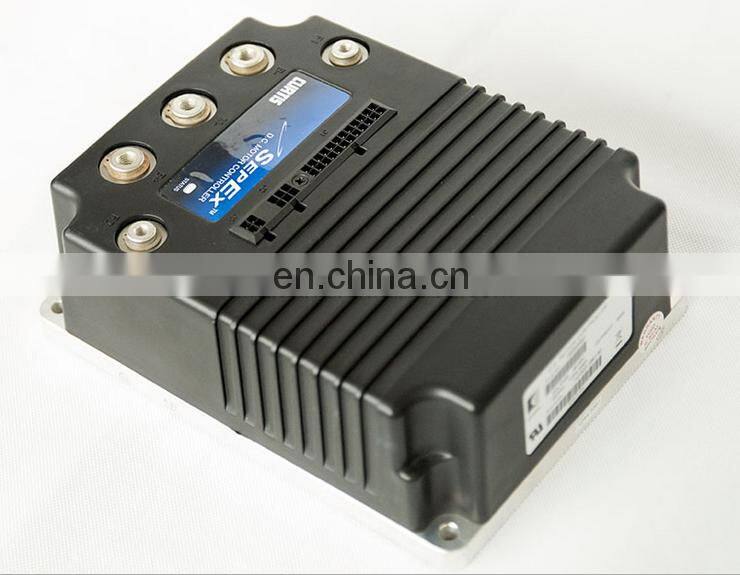

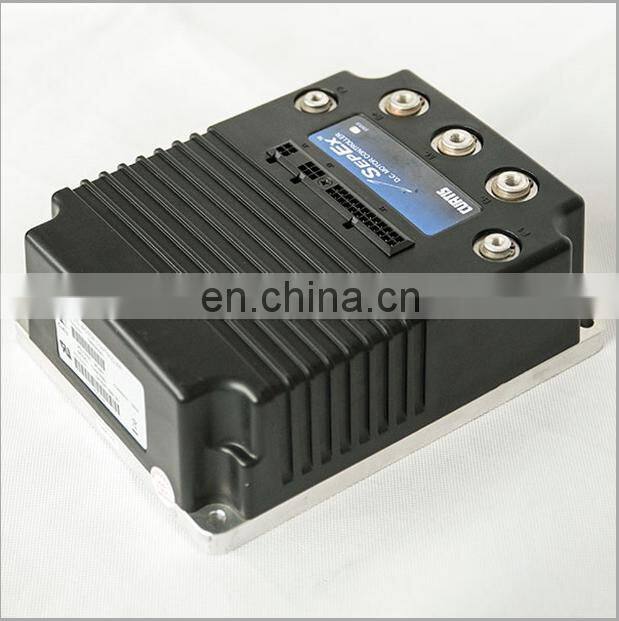

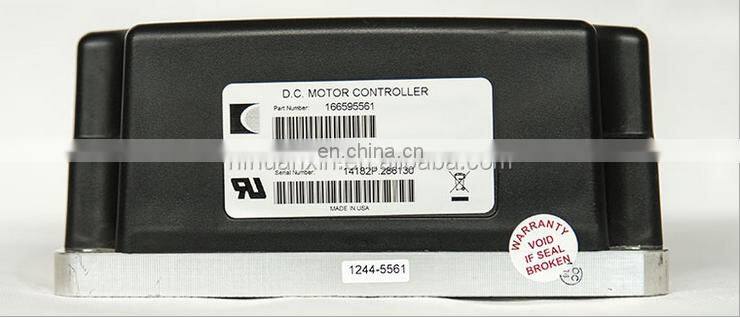

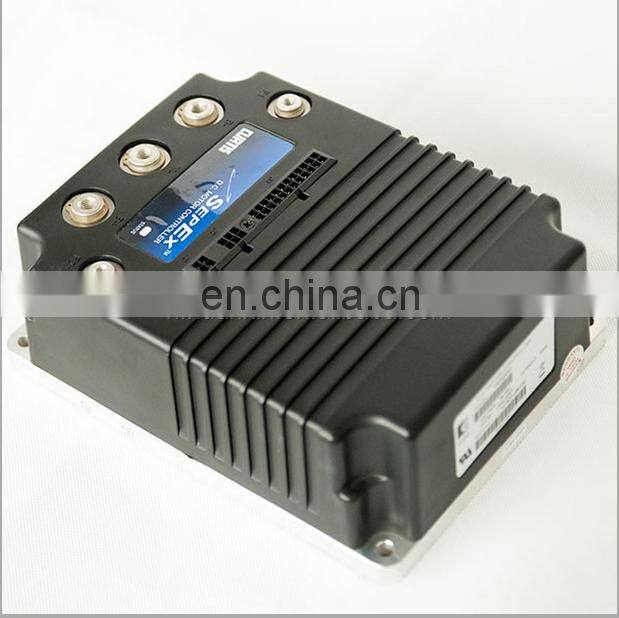

36v/48v 600a dc Motor Speed Controller Model 1244-5651 for Electric Car

Product Application

CURTIS 1244 MultiMode™ controllers are separately excited motor speed controllers designed for use in a variety of material handling vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include low lifts, stackers, fork lifts, reach trucks, personnel carriers, counterbalance trucks, order pickers, boom trucks, and other industrial vehicles.

The 1244 MultiMode™ controller offers smooth, silent, cost effective control of motor speed and torque. A four quadrant, full-bridge field winding control stage is combined with a two quadrant, half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors. The 1244 controller can also be specified to be compatible with CAN Bus communication systems.

The 1253 controller is fully programmable through a CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station. The programming device provides diagnostic and test capability in addition to configuration flexibility.

Key Features:

Regenerative braking, providing longer operation on a single battery charge and reducing motor brush wear and motor heating
Programmability through the 1313-4331 Handheld Programmer or 1314 PC Programming Station
Complete diagnostics through the programmer and the internal Status LED

Two fault outputs provide diagnostics to remotely mounted displays
Continuous armature current control, reducing arcing and brush wear
Automatic braking when throttle is reduced from either direction; this provides a compression braking feel and enhances safety by automatically initiating braking in an operator hands off condition
Deceleration Rate, Load Compensation, and Restraint features prevent downhill runaway conditions; speed is controlled to within approximately 20% of level surface value

MultiMode™ allows four user-selectable vehicle operating personalities
Programmable to match individual separately excited motor characteristics
Meets or exceeds EEC fault detect requirements
Vehicle top speed is controlled and limited in each mode
Linear temperature and undervoltage cutback on motor currents; no sudden loss of power under any thermal conditions
