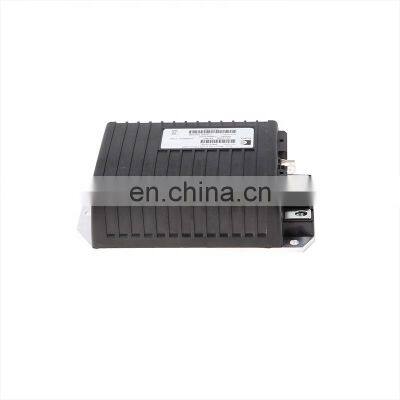

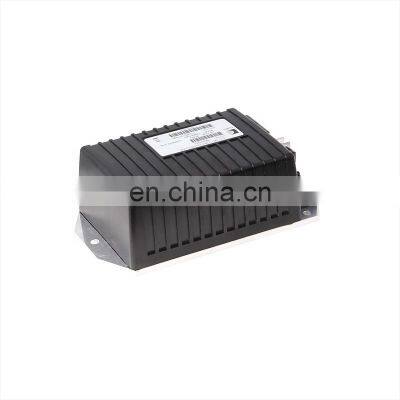

Hot Sale Curtis DC Motor Controller 1266A-5201 36V / 48V - 275A For Transport Vehicles
- 1000 per Month
- T/T Credit Card
- Speed Curtis DC Motor Controller 1266A-5201 36V / 48V - 275A For E-vehicles
- Curtis Programmable DC SepEx Motor Controller 1243-4220 24V / 36V - 200A
- Curtis Programmable DC SepEx Motor Controller With CANBus 1243C-4381 24V / 36V - 300A
- CURTIS Programmable DC SepEx Motor Controller Model 1268-5403 36V / 48V - 400A
- Hot Sale Curtis DC Remote Motor Controller 1243-4320 24V/36V- 300A
- CURTIS Programmable DC SepEx Motor Controller Model 1243-4220 24V / 36V - 200A
Product Description
Hot Sale Curtis DC Motor Controller 1266A-5201 36V / 48V - 275A For Transport Vehicles
Specifications:
Specifications:
* PWM operating frequency: 16 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* KSI input voltage (minimum): 16.8 V
Not like the CURTIS 1266A controllers (for example 1266A-5201), 1266R-5351 does not offer the "walkaway" feature.
Overview:
CURTIS 1266 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include golf carts and small utility vehicles.
The 1266 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.
Brand | Curtis | ||||
Model | 1266A-5201 | ||||
Voltage | 36v/48v | ||||
Application | Golf Cart |
Key Features:
CURTIS Model: 1266A-5201
Norminal Battery Voltage (Volts): 36V / 48V
Amature 2 minute current rating (amps): 275A
Field 2 minute current rating (amps): 20A
KSI input current (typical):
160 mA without programmer
200 mA with programmer
Logic enable and logic power input voltage (minimum): 16.8 V
Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
Logic input voltage: 20.0 V High; 7.5 V Low
Logic input current 10 mA
Throttle Type: various throttles can be used with the 1266 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles
Ambient operating temperature range: -40°C to 50°C
Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
Heatsink undertemperature cutback: 50% armature current at -25°C
Package environmental rating: IP5X
Dimensions: L198 × W114 × H68 mm
Net Weight: 1.9 kg
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality,Reasonable price, Best service and Professional product support.

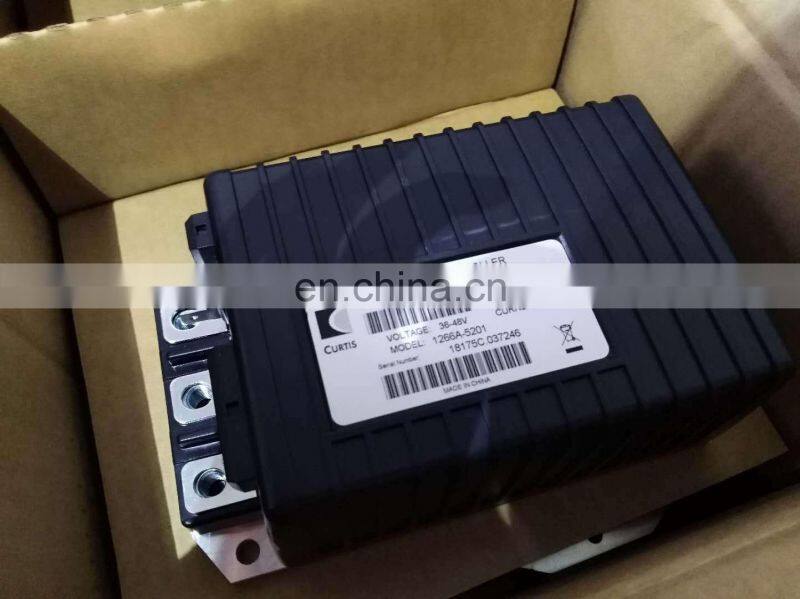

Package:Normally we use the standard exporting parcel. We also can package the item according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai/Guangzhou/Ningbo sea port .
RFQ
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
If you have any needs, please feel free to contact with me! Thanks for your support!
