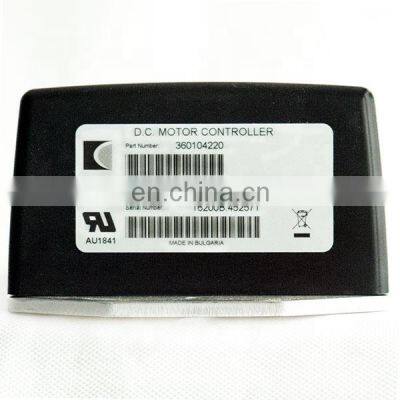

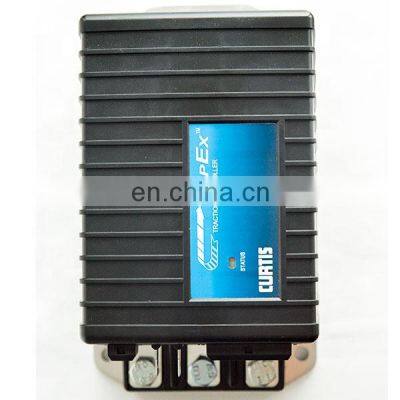

Curtis Programmable DC SepEx Motor Controller 1243-4220 24V / 36V - 200A
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1997
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Curtis Programmable DC SepEx Motor Controller With CANBus 1243C-4381 24V / 36V - 300ANegotiableMOQ: 1 -
CURTIS Programmable DC SepEx Motor Controller Model 1268-5403 36V / 48V - 400ANegotiableMOQ: 1
-
Hot Sale Curtis DC Remote Motor Controller 1243-4320 24V/36V- 300ANegotiableMOQ: 1
-
CURTIS Programmable DC SepEx Motor Controller Model 1243-4220 24V / 36V - 200ANegotiableMOQ: 1
-
CURTIS Programmable DC SepEx Motor Controller With CANBus Model 1243C-4381 24V / 36V - 300ANegotiableMOQ: 1
Curtis Programmable DC SepEx Motor Controller 1243-4220 24V / 36V - 200A
Product Description
Product Name |
Curtis Controller |
Voltage |
24V/36V |
Function |
Control Motor |
Package |
Carton |
Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the 1243 Controller Manual (PDF format) before making the purchase.
If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to download the parameter list of default setting of controller 1243-4220, PDF format).
Notice: We supply also the 1243-4220 controller assemblage with throttle (control handle).
If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to download the parameter list of default setting of controller 1243-4220, PDF format).
Notice: We supply also the 1243-4220 controller assemblage with throttle (control handle).

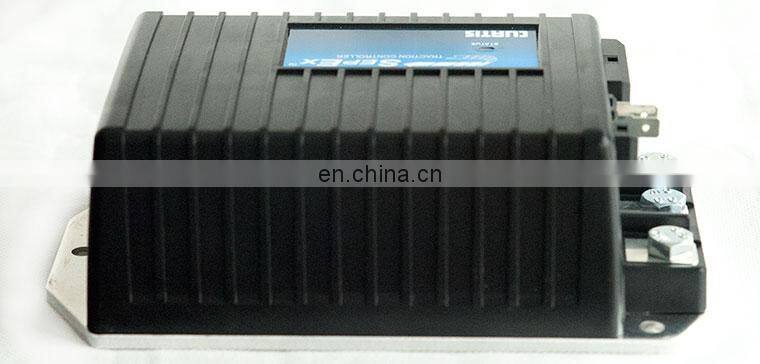

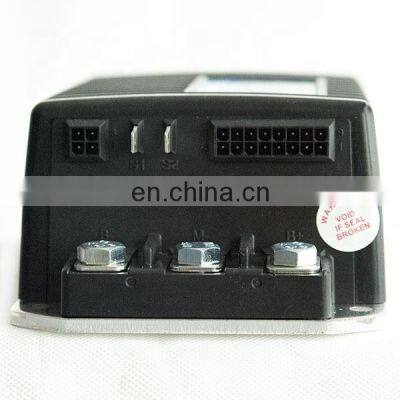

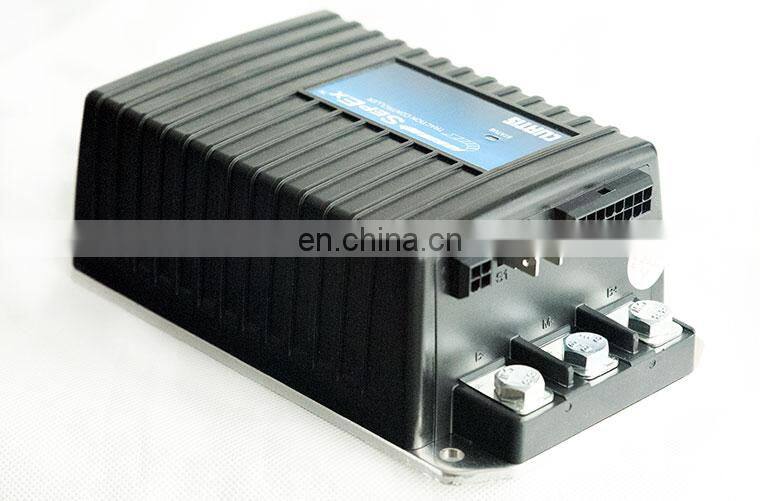

Overview:
CURTIS 1243 Generation 2 MultiMode™ controllers are separately excited motor speed controllers designed for use in a variety of
small industrial vehicles and in material handling equipment. These programmable controllers are simple to install, efficient, and
cost effective, while offering more features than the original 1243.
The 1243 GEN2 MultiMode™ controller provides smooth precise control of motor speed and torque. A full-bridge field control stage
is combined with a half-bridge armature power stage to provide solid state motor reversing and full regenerative braking without
additional relays or contactors. The controller’s rugged IP53 housing and packaging are built to withstand shock and vibration.
State-of-the-art surface mount logic board fabrication makes the 1243GEN2 controller even more reliable than the original 1243.
The 1243GEN2 is fully programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. In
addition to configuration flexibility, the programmer provides diagnostic and test capability.
Appropriate throttles for use with the 1243-4220 controller include:
* Type 1: 2-wire 5kΩ–0 throttles
* Type 2: 0–5V throttles, current source throttles, three-wire potentiometer throttles, and electronic throttles wired for
singleended operation
* Type 3: 2-wire 0–5kΩ throttles
* Type 4: 0–5V and three-wire potentiometer throttles wired for wigwag operation
small industrial vehicles and in material handling equipment. These programmable controllers are simple to install, efficient, and
cost effective, while offering more features than the original 1243.
The 1243 GEN2 MultiMode™ controller provides smooth precise control of motor speed and torque. A full-bridge field control stage
is combined with a half-bridge armature power stage to provide solid state motor reversing and full regenerative braking without
additional relays or contactors. The controller’s rugged IP53 housing and packaging are built to withstand shock and vibration.
State-of-the-art surface mount logic board fabrication makes the 1243GEN2 controller even more reliable than the original 1243.
The 1243GEN2 is fully programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. In
addition to configuration flexibility, the programmer provides diagnostic and test capability.
Appropriate throttles for use with the 1243-4220 controller include:
* Type 1: 2-wire 5kΩ–0 throttles
* Type 2: 0–5V throttles, current source throttles, three-wire potentiometer throttles, and electronic throttles wired for
singleended operation
* Type 3: 2-wire 0–5kΩ throttles
* Type 4: 0–5V and three-wire potentiometer throttles wired for wigwag operation

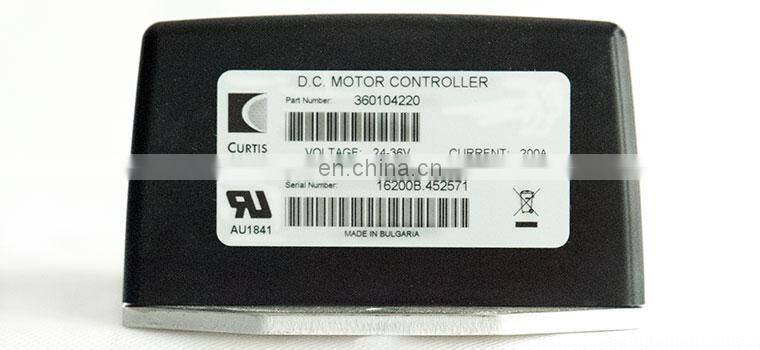

Key Features:
* CURTIS Model: 1243-4220
* Norminal Battery Voltage (Volts): 36V (default setting) or 24V
* PWM operating frequency: 16 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* KSI input voltage (minimum): 16.8 V
* KSI input current (typical): * 78 mA without programmer
* 120 mA with programmer
* Logic input voltage: 7.5 V High; <1 V Low
* Logic input current 15 mA
* Overvoltage protection: * 24V models: cutback at approx. 30V, cutback at ≈34V
* 36V models: cutback at approx. 45V, cutback at ≈49V
* Undervoltage protection: * 24V models: cutback at approx. 17V, cutback at ≈13V
* 36V models: cutback at approx. 25V, cutback at ≈21V
* Drive Current Limit (amps): 200 * Amature: * 2 Minute Current Rating (amps): 200
* 1 Hour Current Rating (amps): 80
* Field: * 2 Minute Current Rating (amps): 25/35
* 1 Hour Current Rating (amps): 15/20
* Throttle Type: 0-5K Ω (default setting), 5K-0 Ω or 0-5V
* Ambient operating temperature range: -40°C to 50°C
* Heatsink overtemperature cutback: 85°C
* Heatsink undertemperature cutback: -25°C
* Package environmental rating: IP53
* Dimensions: L198 × W114 × H70 mm
* Net Weight: 1.45 kg
* Regulatory compliance * Safety, applicable portions: EN 1175-1:1998
* EMC and EMI: EN 12895:2000
* UL Recognized Component, UL File AU1841
* Norminal Battery Voltage (Volts): 36V (default setting) or 24V
* PWM operating frequency: 16 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* KSI input voltage (minimum): 16.8 V
* KSI input current (typical): * 78 mA without programmer
* 120 mA with programmer
* Logic input voltage: 7.5 V High; <1 V Low
* Logic input current 15 mA
* Overvoltage protection: * 24V models: cutback at approx. 30V, cutback at ≈34V
* 36V models: cutback at approx. 45V, cutback at ≈49V
* Undervoltage protection: * 24V models: cutback at approx. 17V, cutback at ≈13V
* 36V models: cutback at approx. 25V, cutback at ≈21V
* Drive Current Limit (amps): 200 * Amature: * 2 Minute Current Rating (amps): 200
* 1 Hour Current Rating (amps): 80
* Field: * 2 Minute Current Rating (amps): 25/35
* 1 Hour Current Rating (amps): 15/20
* Throttle Type: 0-5K Ω (default setting), 5K-0 Ω or 0-5V
* Ambient operating temperature range: -40°C to 50°C
* Heatsink overtemperature cutback: 85°C
* Heatsink undertemperature cutback: -25°C
* Package environmental rating: IP53
* Dimensions: L198 × W114 × H70 mm
* Net Weight: 1.45 kg
* Regulatory compliance * Safety, applicable portions: EN 1175-1:1998
* EMC and EMI: EN 12895:2000
* UL Recognized Component, UL File AU1841
