CC1310 Chip UART Wireless Transparent Transceiver Module
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T PayPal Cash Other
- High Power 433MHz LoRa Transceiver Module with SX1278 Chip
- BLE Module with TI's CC2340 Chip
- 868Mh/915Mhz UART Wireless Transparent Transceiver Module with CC1310 Chip
- 3KM Long Range RF Module with LoRa Core™ LLCC68 RF Chip
- DL-CC2541 Bluetooth Low Energy (BLE) Module (Transparent Transmission + Direct Driving)
- Low-power BLE4.2 Bluetooth Module with UART Serial Port
Product Details
Brand Name: | DreamLNK | Place of Origin: | China | Model Number: | DL-CC1310-B |
Product Description

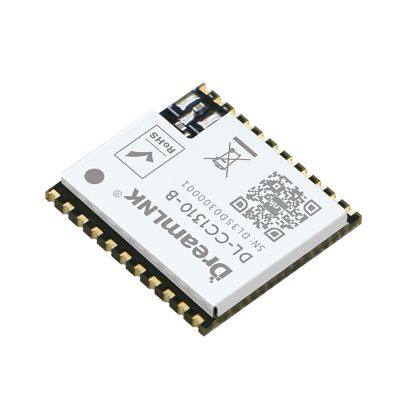

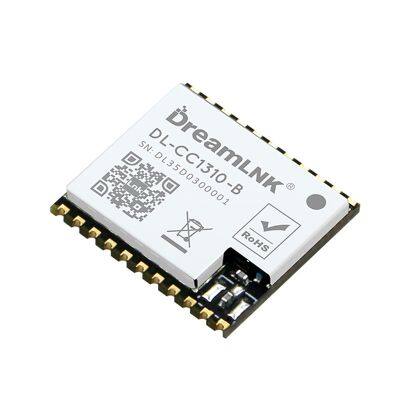

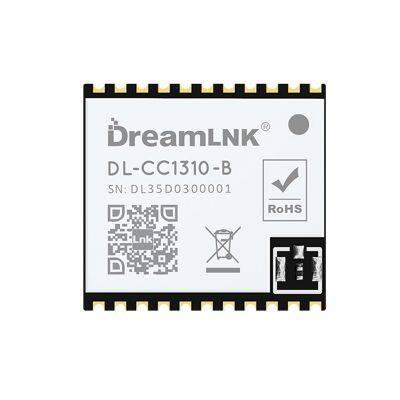

CC1310 Chip UART Wireless Transparent Transceiver Module
DL-CC1310-B Wireless Module is an SoC embedded Serial Port RF Transceiver Module (UART Module) with defaulted AT command, which was developed by DREAMLNK based on Texas Instruments' CC1310F128RHBR (built-in dual-core ARM) Radio Frequency chip. It combines an integrated RF Controller (Cortex -MO) and a powerful Arm Cortex-M3 Processor, the Clock Speed of the MCU can reach up to 48MHz.
This DL-CC1310-B Wireless Module supports Narrow-band Communication, Direct Sequence Spread Spectrum (DSSS), Long-range Transmission and High-efficiency Communication. It has built-in fully functional AT Commands that support any Serial Baud Rate setting from 1920bps to 256000bps, which can greatly improve the communication efficiency with up to -124dBm receiving sensitivity.
The embedded software makes this Wireless Module support not only Transparent Transmission Mode, random accurate RSSI acquisition, automatic CCA (Clear Channel Assessment), but also High-speed Data Stream & Packet Segmentation Transmission, which can effectively reduce the probability of signal collision.
Moreover, it has defaulted low power consumption software, as well as other muti-functions serial port programs when it is manufactured. A variety of Wireless Baud Rates and functions can be configured, including Long-range Spread Spectrum Mode and Universal Mode, Wake-on-Radio (eWOR) function, etc. These different configurations can provide simple and efficient solutions for various long-range communication and IoT applications.
All these features above make this DL-CC1310-B Wireless Module to an excellent RF performance and strong anti-interference in the 420-510MHz/860-950MHz frequency band. It combines a flexible, very low power RF transceiver with a powerful MCU in a platform supporting multiple physical layers and RF standard, which is ideal to use especially for battery power applications. You can also make secondary development based on TI's development Kit if needed.
There are 3 Versions available:
- DL-CC1310-B-433 Freq.: 433MHz
- DL-CC1310-B-868 Freq.: 868MHz
- DL-CC1310-B-915 Freq.: 915MHz
Hardware Advantages:
Original CC1310 Chip from TI;
SOC integrated RF module with metal shield
Industrial grade components: 433/868/915MHz
Wide supply voltage range: 1.8V to 3.8V;
Ultra-low sleep current<1uA;
High efficiency receiving performance (RX current = 5.5mA);
High Transmission Efficiency:
TX (+10dBm): 17mA;
TX (+14dbm): 27mA;
Excellent Receiver Sensitivity:
Long Range Mode: -124dbm at 0.625kbps;
Universal Mode: -110dbm at 50kbps;
Accurate Signal Strength Indication and Clear Channel Assessment (CCA).

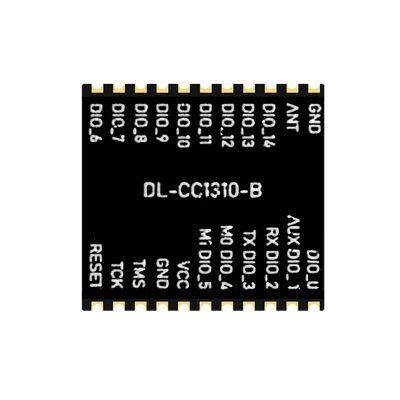

Compact size for SMD mounting (Dimensions = 18x16.5mm)
Software Advantages:
Easily configure with defaulted AT command, for a simple development;
Transparent Transmission Mode supported;
Data flow control & high-speed data stream transmission supported;
1920-500000bps serial baud rate is supported;
0.6kbps-500kbps wireless baud rate is supported;
Wake-on-Radio (eWOR) function supported (intermittent receiving), which can be greatly increases the battery standby time;
Packet Segmentation Supported
Preset CCA (Clear Channel Assessment) function, which can effectively reduce the collision probability of co-frequency interference;
Strong Anti-jamming: supports anytime RSSI acquisition and CCA (Clear Channel Assessment);
Supports manual fast frequency hopping to avoid co-frequency interference;
Point-to-Point, Broadcasting and Monitoring transmission can be achieved.
Technical Parameter
Parameter | Min. | Typical | Max. | Unit | Remarks |
Operating Conditions | |||||
Working Voltage | 2.2 | 3.3 | 3.8 | V | Voltage above range may damage the RF module |
I/O Voltage Range | 1.8 | 3.3 | 4.1 | V | Operating voltage is +3.3V, Max. is 4.1V |
Working Temperature Range | -40 | 25 | 85 | ℃ | |
Current Consumption | |||||
Receiving Current | 5 | 5.5 | 6.1 | mA | @ Radio Frequency Receiving Current (MCU sleep) |
Receiver Working Current | 6 | 6.8 | 8 | mA | @ Overall Receiving Current |
Transmission Current | 32 25 15 | 35 27 17 | 38 29 20 | mA | @433M 15dBm Peak value @433M 14dBm Peak value @433M 10dBm Peak value |
27 16 | 29 18 | 32 21 | mA | @868M 14dBm Peak value @868M 10dBm Peak value | |
27 16 | 29 18 | 32 21 | mA | @915M 14dBm Peak value @915M 10dBm Peak value | |
Standby Current | 1 | 1.5 | 2 | mA | @ Radio Frequency Receive Function Stopped |
Sleep Current | 0.2 | <1 | 2 | uA | @M1=0 |
RF Parameters | |||||
Recommended Frequency (Ensure best performance)) | 420 | 433 | 510 | MHz | @433Mh RF module |
840 | 868 915 | 930 | MHz | @868Mhz/915Mhz RF module | |
Transmitting Power Range | -10 | 14 | 15 | dBm | @0-10dBm, 1dbm resolution |
Max. Receiver Sensitivity @ FSK | -120 | -124 | -127 | dBm | @868Mhz/915Mhz @625bps |
-119 | -122 | -124 | dBm | @433Mhz @625bps | |
FSK Rate Range | 0.625 | 9.6 | 500 | Kbps | @ See Table 13 for details |
Wake-on-Radio Mode Consumption | 0.002 | mAH | @AT+RXGAS=500 |
As a professional wireless module supplier, and a third-party design office (of TI, Silicon Labs, Semtech), DreamLNK is specialized in radio frequency field for almost 8 years! Should there is any other question, please kindly let me know.
