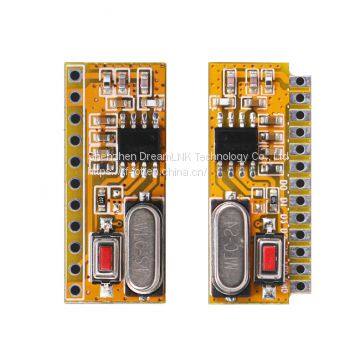

DL-RXC6A / RXC6B is a low cost, small size, high sensitivity wireless receive module, with decoding (learning code) function, and super heterodyne ISM band. It adopts cost-effective wireless data receiving chip and low power consumption single chip, built-in image suppression of RF chip, can support 2.8V-5.5V wide voltage power supply, which performs high receiving sensitivity, as well as good anti-interference performance.
DL-RXC6A / DL-RXC6B are compatible with PT2262 and 1527 encoding. The corresponding decoding and receiving module can also be ODM (customized) according to different remote-control encoding types.
1. Applications
● Multi-channel controller for electric vehicles
● Multi-channel input and output switching control
● Remote control of multi-channel chandelier and lighting
● Wireless multi-channel opening and closing controller
● Standard 1527 protocol remote control
● Energy control and management
● Multi-level control circuit
● D1-D4 can directly drive Darlington and relay circuits;
● Intelligent buildings
● Multi-channel on-off control of motors
2. Features & Brief Introduction:
● Frequency range: 315MHz, 433.92MHz (special frequency can be customized)
● Sensitivity: Up to -112 dBm
● Power supply voltage input range: 2.8V-5.5V (recommended working voltage 3.3V or 5.0V)
● Latch and non-latching mode selection: Set T1/ T2 decoding, output latch / unlatching
● It can be used to learn PT2260, 2262, 1527 remote controllers with good rate compatibility
● Encoded data transmission rate 2.5K bps (Manchester encoding)
● OOK modulation mode, can work with PT4450, 115H, 113, R25 (2SK3356) and other transmitting circuits
● Module size 28.5 × 12 × 6mm (A version), 28.5 × 12 × 6mm (B version, T type plate)
3. Technical Parameter
Parameter |
Symbol |
State |
Reference Value |
Unit |
||
Min. |
Typ. |
Max. |
||||
Working frequency |
Fc |
315，433.92 |
MHz |
|||
Modulation Mode |
ASK |
|||||
Receiving sensitivity |
50 ohm antenna direct input /1k Kbps |
-112 |
dBm |
|||
RF Receive bandwidth |
300 |
KHz |
||||
Data demodulation bandwidth |
Demodulation pulse width is 0.2-1ms |
1 |
2.5 |
K |
||
System Start-up time |
Ton |
ms |
||||
Supply Voltage |
VDD |
2.8 |
3.3 or 5.0 |
5.5 |
V |
|
Working Current |
IRC |
VDD=3.3V/315M |
3.9 |
mA |
||
VDD=3.3V/433M |
6 |
mA |
||||
Logic Truth Table |
T1 |
T2 |
State description |
M Flash mode |
High level (floating) |
High level (floating) |
The two setting ports of T1 and T2 are floating, and no level is connected. |
L Self-locking mode |
High level (floating) |
Low level (grounding) |
D0-D3 independent output latch state, flipping when valid signal detected |
H Interlocking mode |
Low level (grounding) |
High level (floating) |
D0-D3 interlock output, the current signal output remains unique |
Reserved mode |
Low level (grounding) |
Low level (grounding) |
Other function modes can be customized (not used yet) |
Note: To confirm that the setting is valid, the red DK tool board needs to be powered on and reset, every time after setting the T1 and T2 states
