CT/PT Analyzer SXFA-III

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Other

Year Established:

2011

Annual Export Value:

Above US$100 Million

Shanghai Launch Electric. Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Contact US

Email:coco@launch-electric.com

Product Overview

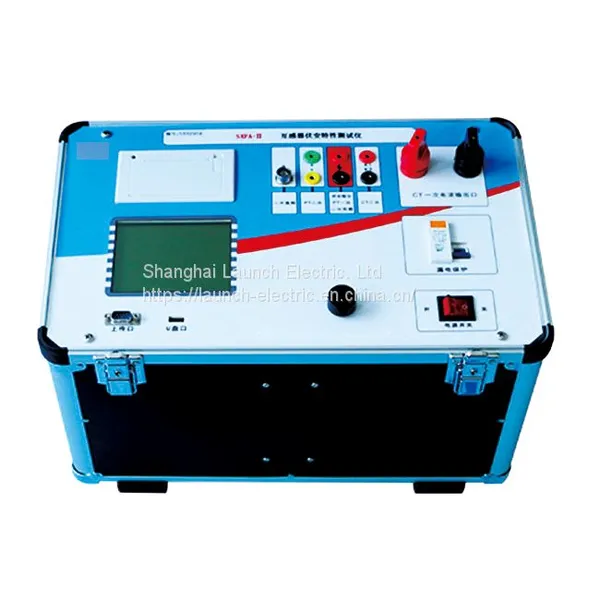

SXFA-III CT/PT Analyzer is designed to test on protection and measurement CT/PT automatically, suitable for laboratory and on site testing.

Features

♦ Support CT and PT testing.

♦ The external connected auxiliary device is unnecessary.

♦ Build-in printer.

♦ Intelligent controller, easy to operate.

♦ Large LCD screen, English interface, cursor operation, display test result and curve by real-time.

♦ Auto provides CT/PT (excitation) knee point value.

♦ Auto provides 5% and 10% error curve.

♦ 3000 groups’ data storage no lost even power failure.

♦ U disk to save data, and generate to test report via PC.

♦ Light weight, less than 22kG, suitable for on-site test.

Specifications

CT（Protection/measurement type）	PT
Volt-ampere characteristic（excitation） curve	Volt-ampere characteristic（excitation） curve
Auto calculates knee point value	Auto calculates knee point value
5％and 10％ error curve	Turns ratio
Turns ratio	Polarity
Polarity	Ratio error
Primary Flow Injection	Angular error
Ratio error	AC withstand test
Angular error	Demagnetization
AC withstand test
Demagnetization

Working supply		AC220V±10% , 50Hz
Output		0～1000V（20A peak value）
Current Output		0～600A
Excitation Measuring Precision		≤0.5%（0.2%read+0.3%range）
Phase measurement (Angular Error)	Precision	±4min
	Resolution	0.1min
Ratio Error	Precision	≤0.05%
CT Turns Ratio	Range	5000A/1A(25000A/5A)
	Precision	≤0.5%
PT Turns Ratio	Range	1KV～500KV
	Precision	≤0.5%
Working Environment		Temperature: －10℃ ～ 40℃，Humidity: ≤90%，Altitude: ≤1000m
Size and Weight		400mm × 250mm × 250mm, Weight≤22Kg
