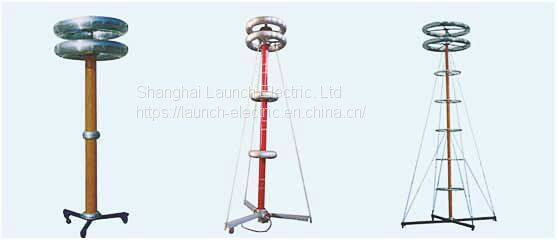

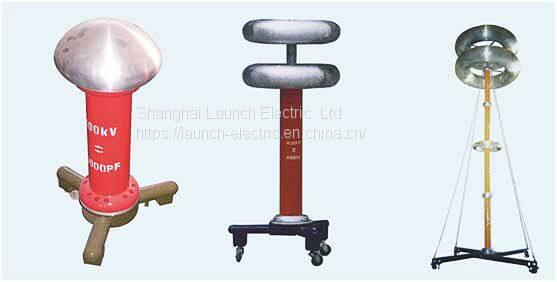

High Voltage Capacitive Voltage Divider

Contact US

Email:coco@launch-electric.com

Applications

HV capacitive divider includes b,vo types: non -PD power frequency capacitive voltage divider, and

impulse low-damped capacitive voltage divider

The power frequency capacitive voltage divider is mainly used to measure the output voltage of

power frequency testing equipment (peak. RMS. and resonance), as well as coupling capacitor.

The impulse low-damped capacitive voltage divider is mainly used to measure the waveforms and

amplitude of output voltage of impulse voltage generator, and also used as wave front capacitor

Features

1 Low loss

2 High measuring accuracy.

3. Low temperature coefficient

Low PD level of power frequency HV capacitive voltage divider:

5.G00d square wave response Of impulse low-damped capacitive voltage divider

& Two types of dividers can both move conveniently and flexibM

power frequency non-pd capacitive divider

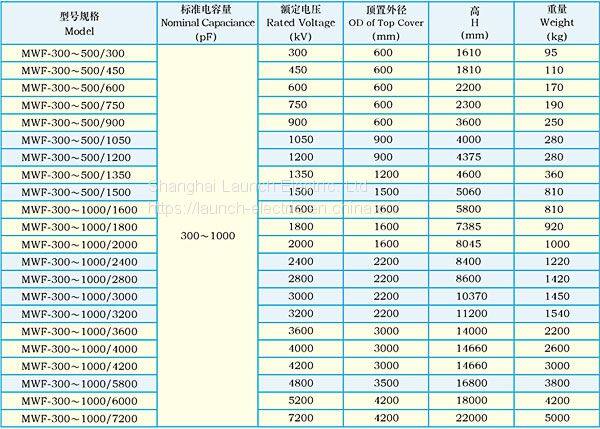

impulse low-damped capacitive divider
