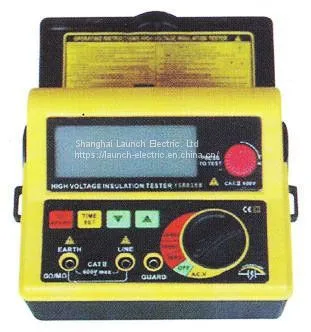

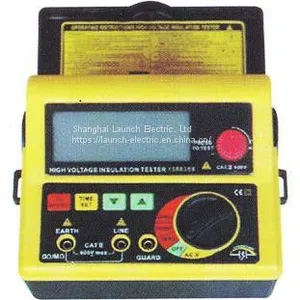

SFK188 Series Digital Megohmmeter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2011
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SFB150 Zinc Oxide Arrester TesterNegotiableMOQ: 1 Piece -
SFY500 Series Turbine Oil FilterNegotiableMOQ: 1 Piece
-
SFY212 Series Highly-Efficient Vacuum Oil-FilterNegotiableMOQ: 1 Piece
-
SFJ044 Variable Frequency High-Current Multifunctional Ground Impedance Test SystemNegotiableMOQ: 1 Piece
-
SFJ018 Relay Protection Test CabinetNegotiableMOQ: 1 Piece
Contact US
Email:coco@launch-electric.com
Introduction
Technical Parameters
Rated voltage |
500v |
1000v |
2500v |
Measuring range |
0.0~99.9MΩ 100~999 MΩ
|
0.0~99.9MΩ 100~999 MΩ 1.00~1.99GΩ |
0.0~99.9MΩ 100~999 MΩ 1.00~9.99GΩ 10.0~99.9 GΩ |
Open circuit voltage |
DC500v +30%,-0% |
DC1000v +20%，-0% |
DC2500v +20%，-0% |
Standard measuring current |
0.5 MΩ load, 1mA~1.2mA |
1 MΩ load, 1mA~1.2mA |
2.5 MΩ load, 1mA~1.2mA |
Short circuit current |
Approx.1.3mA |
||
Accuracy |
0.0~99.9 GΩ; ±5%rdg±3dgt Over 100 GΩ; ±20% |
||
Measuring result showed in bar chart
With alive circuit warning sign and buzzing warning
PI (polarization index) measurement
Automatic discharge, making the operation safer
Automatic power off, once no operation in 10min, the tester will be power off automatically
Low power indication
