Help CenterBN-NIR-II InGaAs Unit Detector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BN-SWIR-I InGaAs Shortwave Infrared Unit DetectorNegotiableMOQ: 1 -
BN-NIR-256X1 256x1 InGaAs Linear SensorNegotiableMOQ: 1
-
BN-NIR-512X2 512x2 InGaAs Linear Sensor 0.9-1.7NegotiableMOQ: 1
-
BN-NIR-800X2 800x2 InGaAs Linear SensorNegotiableMOQ: 1
-
BN-NIR-1024X2 1024x2 InGaAs Linear Sensor 0.9-1.7NegotiableMOQ: 1
Specification
item |
value |
Model Number |
BN-NIR-II |
Type |
InGaAs shortwave infrared sensor |
Place of Origin |
China |
Zhejiang |
|
Brand Name |
BAINEL |
Usage |
Imaging |
Theory |
Shortwave infrared |
Output |
SWIR |
Description |
InGaAs shortwave infrared sensor |
Details Images
Products Description
Application Fields:
Spectral detection and analysis, gas analysis, water content analysis, etc
Product features:
Positive irradiation structure, high sensitivity, fast response time, internal integrated two-stage thermoelectric cooler
Performance Parameter
Characteristic Parameter |
Typical Value |
Remark |
||||
Photosensitive Surface Diameter |
1mm |
Customized |
||||
Format |
unit |
|||||
Operating Temperature |
-20 ~ +60℃ |
|||||
Storage Temperature |
-55 ~ +70℃ |
|||||

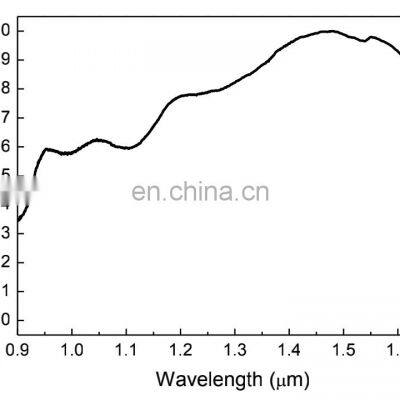

Spectral Response |
0.9~1.7μm |
|||||
Peak Wavelength |
1.55μm |
|||||
Quantum Efficiency |
≥90% |
room temperature |
||||
Peak Response Rate |
≥1.1 A/W |
room temperature |
||||
Device Impedance |
1.5 x 10^9 Ω |
room temperature |
||||
Dark Current |
≤8 x 10^-12 A |
@-0.1V,room temperature |
||||
Equivalent Noise Power |
≤3 x 10^-14 W/Hz^1/2 |
@1.55μm,room temperature |
||||
Peak Detection Rate |
≥3 x 10^12 cm.Hz^1/2/W |
room temperature |
||||

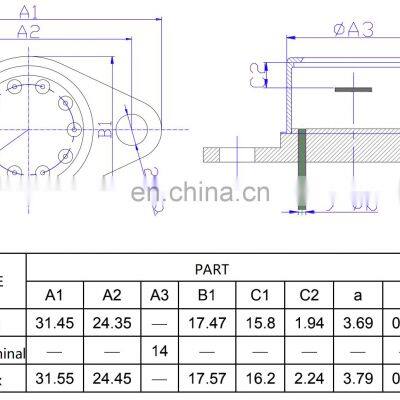

Packaging Characteristics |
Internal integrated thermoelectric cooler, TO-9 shell |
Customized |
||||
Remark:

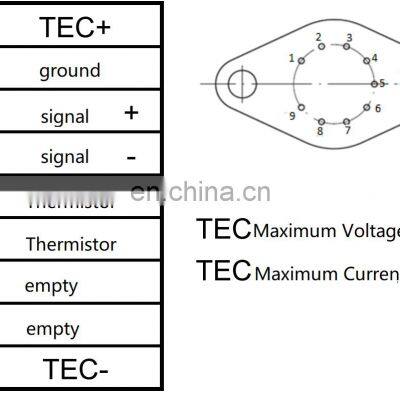

(1) During the use of the product, the positive and negative ends of the thermoelectric cooler shall not be reversed, otherwise the performance and service life of the product will be affected.
(2) The product adopts thermistor to measure temperature, and the refrigeration effect is related to ambient temperature, power performance and heat dissipation state.
(3) The pin of the product is equipped with an electrostatic protection device. During use, the operator should wear an electrostatic bracelet and take appropriate electrostatic protection measures, and then remove the electrostatic protection device and use the product.
(4) During storage and transportation, products shall be equipped with electrostatic protection devices and stored in anti-static boxes.
(5) The product shall be plugged in and out after power failure; When the product does not work, the power supply to the thermoelectric cooler shall be stopped.
