High Quality Precise Temp Control Electric Blast Drying Oven

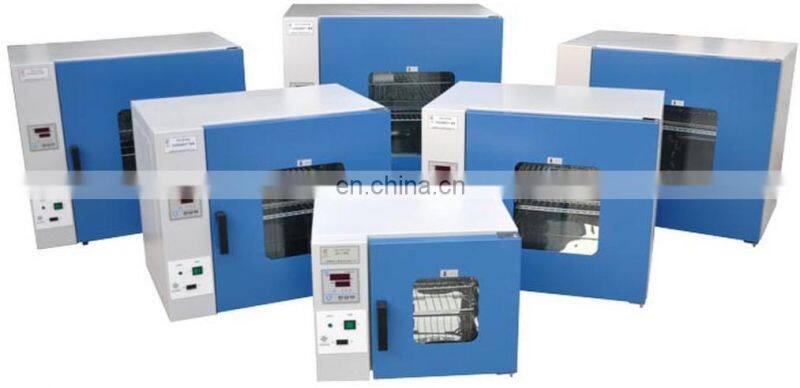

DHG series Blast Drying Oven

Description of Blast Drying Oven

Hot Air Circulating Blast Drying Oven widely used in mining industry, laboratory, scientific research institute, etc for drying, baking and wax-melting, sterilization, etc.

Features of Blast Drying Oven

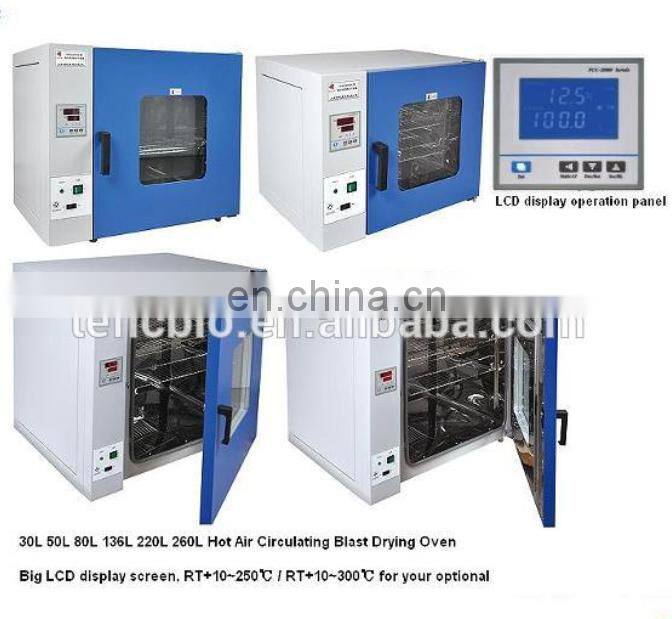

 1. Large LCD displayscreen, many sets of data display in one screen, menu type operation interface, simple and understand easily, convenient to operate (Standard configuration).

2. Adopt draught fan speed control mode, increase the temperature uniformity of the studio.

3. Adopt air duct circulation system which developed by ourselves, can automatic discharge the water vapor in the chamber, and no manual adjustment problems.

4. Our microcomputer temperature controller has over-temperature deviation protection and digital display functions, time setting function and temperature control is accurate and reliable.

5. Oven’s chamber produced by mirror stainless steel material, shelf bracket could be loading and unloading freely, semicircle four corners design make cleaning more convenient.

6. Blast drying oven shell made of high quality cold-roll steel sheet, surface electrostatic plastic spraying.

7. Independent temperature limitation alarm system, it will be automatically interrupted if over the limit temperature, so as to guarantee the safe of experiment and operation without any accident.(Optional)

8. With RS485 interface which could connect the recorder and computer, so could record the change situation of temperature parameters.(Optional)

Technical specifications of Blast Drying Oven:

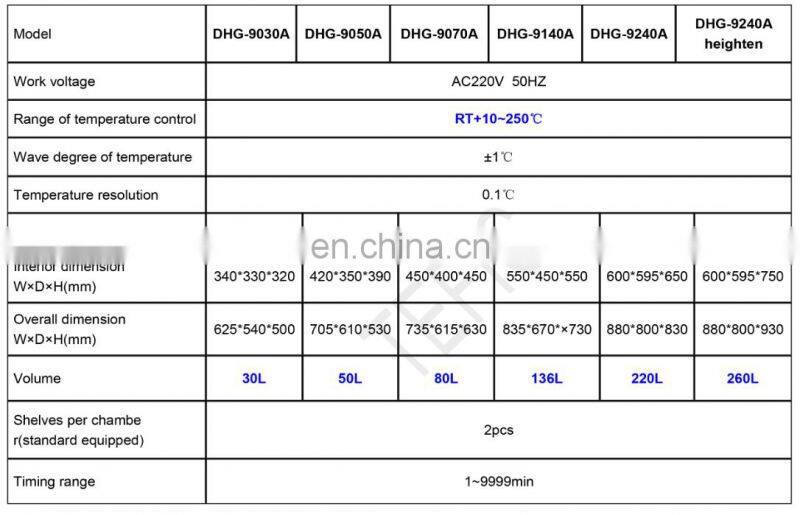

RT+10~250℃ blast drying oven

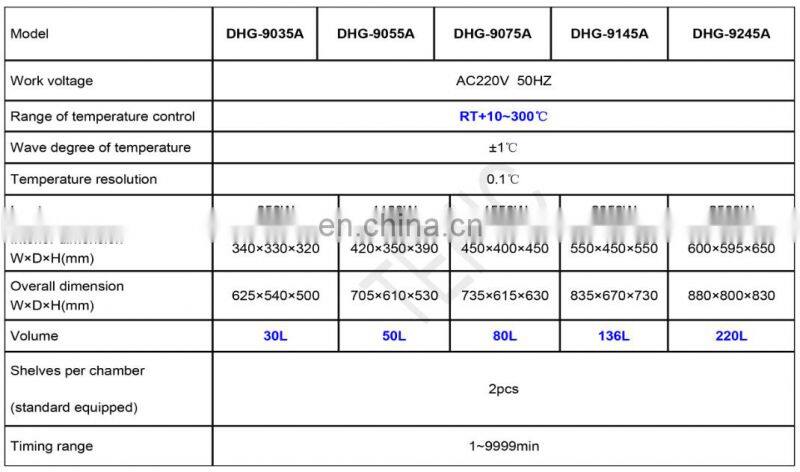

RT+10~300℃ blast drying oven

TEFIC drying oven package
