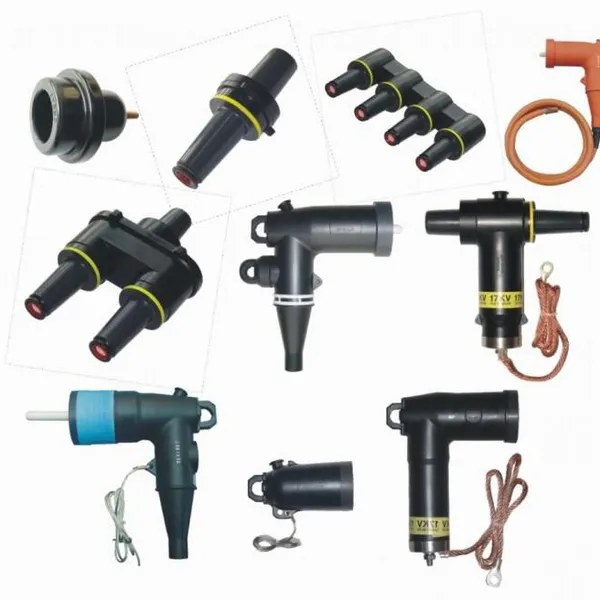

15kV 200A Loadbreak Bushing Insert
US$ 30 - 32
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEM/ODM
Place of Origin:
China
Model Number:
DTG-215
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
10 days
Related Products
-
600/900A Deadbreak JunctionsUS$ 50 - 52MOQ: 500 Pieces -
Cycloaliphatic Epoxy BushingsUS$ 45 - 50MOQ: 300 Pieces
-
Outdoor Apparatus Station Post InsulatorsUS$ 18 - 20MOQ: 500 Pieces
-
Inner Cone Plug in Bushing for Oil Immersed Distribution TransformerUS$ 35 - 60MOQ: 300 Pieces
-
Air Insulated Equipments Bushing and Support InsulatorsUS$ 35 - 50MOQ: 300 Pieces
Brand Name
OEM/ODM
Place of Origin
China
Model Number
DTG-215

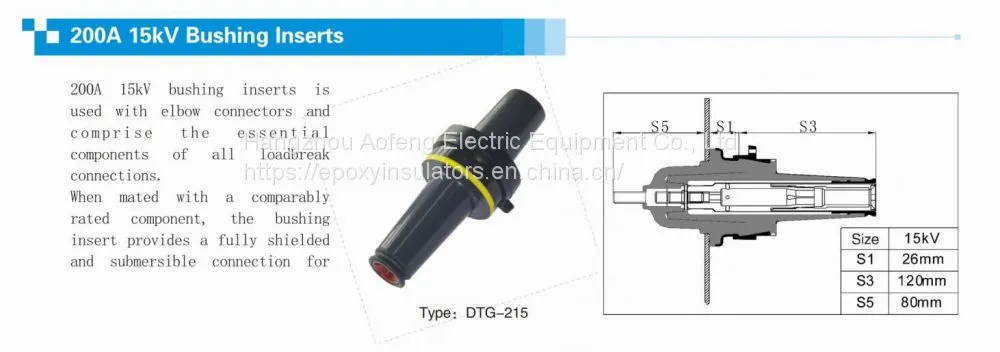

The 15kV 200A Loadbreak Bushing Insert is designed, manufactured and tested to acheive superior quality. This product is designed for use with transformers or other equipment having a bushing well interface that is IEEE 386 compliant. This product is tested per the following industry standards:
ANSI/IEEE Std 386: For Separable Insulated Connector Systems
IEEE Std 592: For Exposed Seminconducting Shields
For more information, please see the resources and related information tabs below.
| IEEE 386 – Industry Minimum Requirements | |
|---|---|
| Voltage Ratings | |
| Voltage Class, Phase-to-Phase | 15kV |
| Maximum Operating Voltage – (phase-to-ground) | 8.3kV |
| Corona Voltage Level – (partial discharge extinction voltage) | 11kV |
| AC Withstand – (1 minute) | 34kV |
| Impulse-Withstand Voltage – (BIL) | 95kV |
