Lab1st Alcohol Recovery Single Effect Rising Film Evaporator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lab1st RFE-100L Single Effect Rising Climbing Film EvaporatorNegotiableMOQ: 1 -
Vacuum Distillation Ethanol Herb Oil Extraction Rising Film MachineNegotiableMOQ: 1
-
Rising Film Evaporator Ethanol RecoveryNegotiableMOQ: 1
-
Rising Film Evaporator Vacuum Distillation Alcohol DistillerNegotiableMOQ: 1
-
200 to 1000L/h Single Effect Vacuum Evaporator and CondenserNegotiableMOQ: 1
Products Description
Lab1st Single Effect (Rising Film) Eveporator
Lab1st single effect evaporator (rising film) is a type of evaporator that is essentially a vertical shell and tube heat exchanger with 200L/hr~1000L/hr evaporation capacity.
Details Images

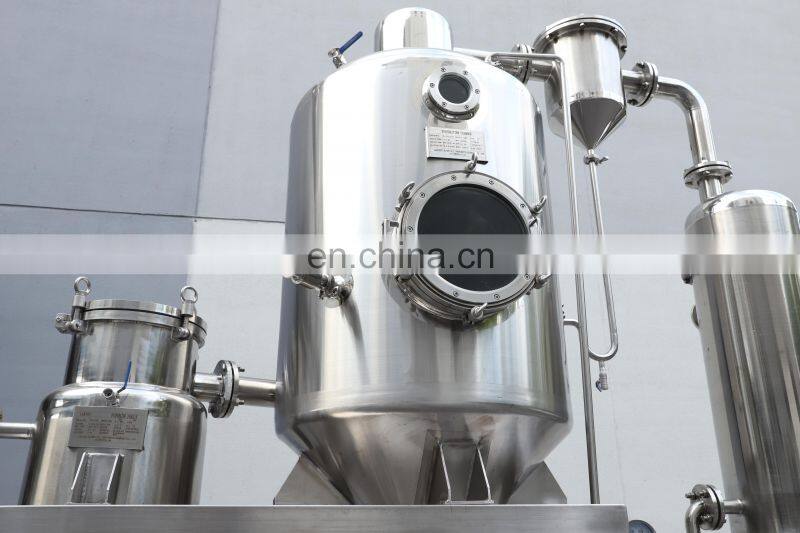

Evaporation Chamber

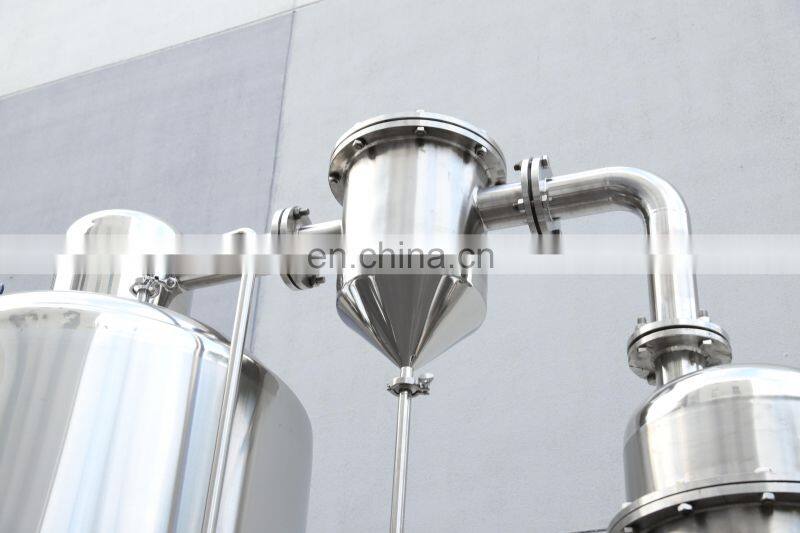

Gas-Liquid Seperator
Heater

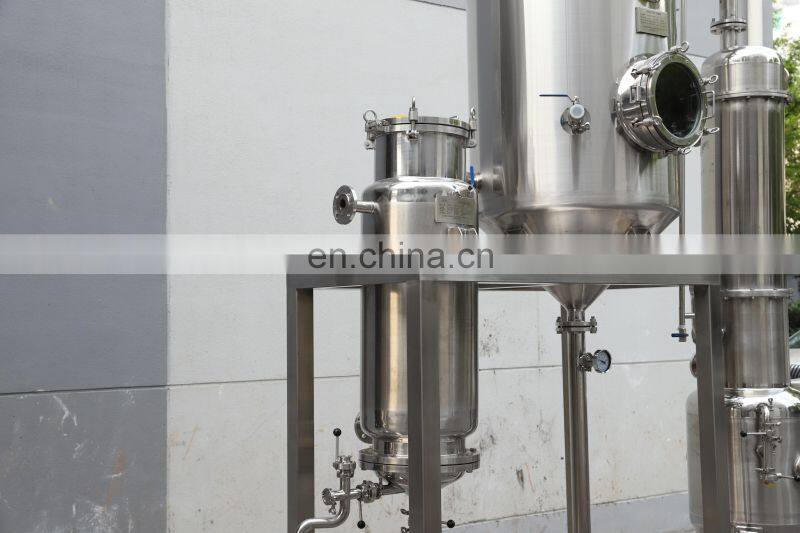

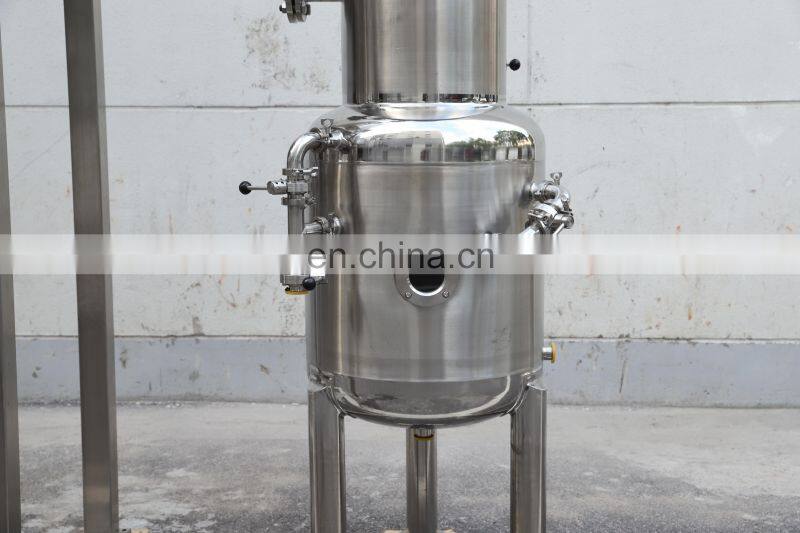

Liquild Collector

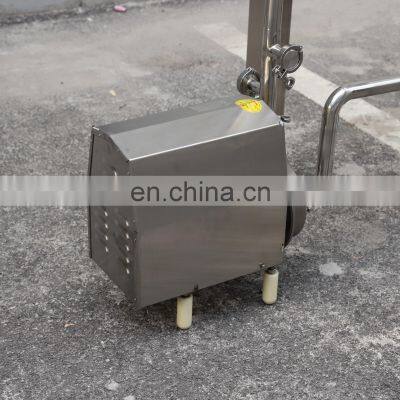

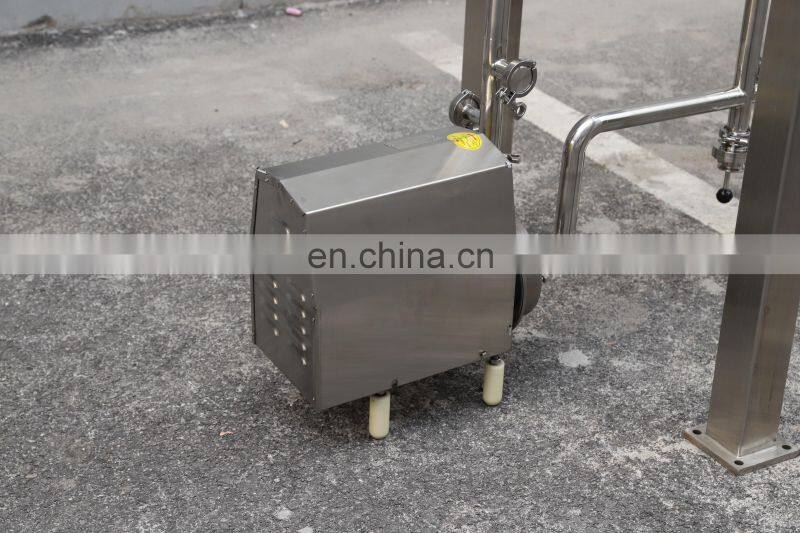

Centrifugal Pump

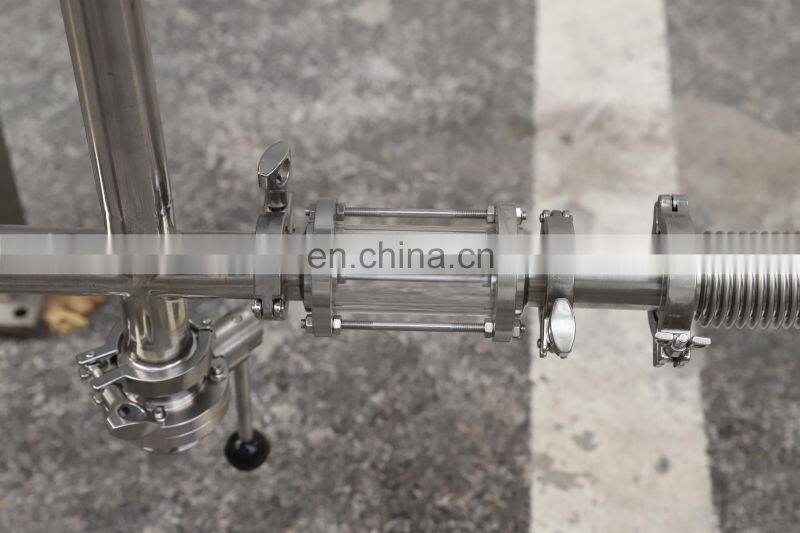

Sight Glass
Product Paramenters
Model |
RFE-200L |
RFE-500L |
RFE-1000L |
Vacuum Degree (Mpa) |
-0.06~-0.095 |
-0.06~-0.095 |
-0.06~-0.095 |
Evaporation Temp. (℃) |
45~75 |
55~75 |
55~75 |
Evaporation Capacity (kg/h) |
200 |
500 |
1000 |
Heating Area (㎡) |
4 |
10 |
16 |
Steam Pressure (Mpa) |
0.25 |
0.25 |
0.25 |
Steam Consuption (kg/h) |
220 |
600 |
1100 |
Primary Condensing Area (㎡) |
10 |
26 |
57 |
Secondary Condensing Area (㎡) |
0.5 |
1 |
2 |
Cooling Water Inlet Temp. (℃) |
32 |
32 |
32 |
Cooling Water Outlet Temp. (℃) |
40 |
40 |
40 |
Cooling Water Capacity (m³/h) |
15 |
32 |
65 |
Liquid Collector |
210L |
360L + 100L |
600L + 250L |
Evaporation Chamber (L) |
650 |
1100 |
2100 |
Gas-Liquid Seperator (L) |
30 |
70 |
140 |
Material |
SS304 |
SS304 |
SS304 |
