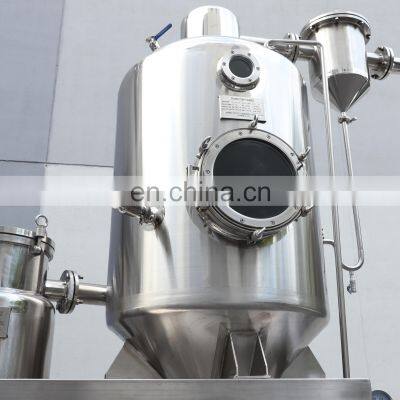

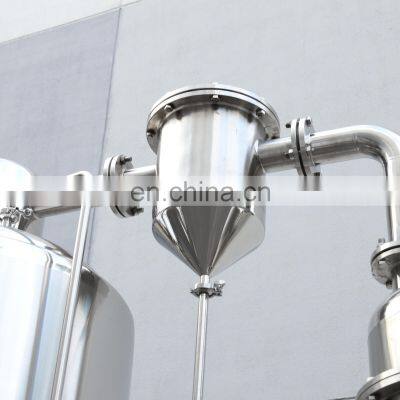

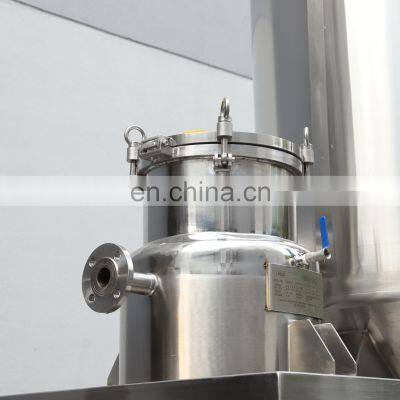

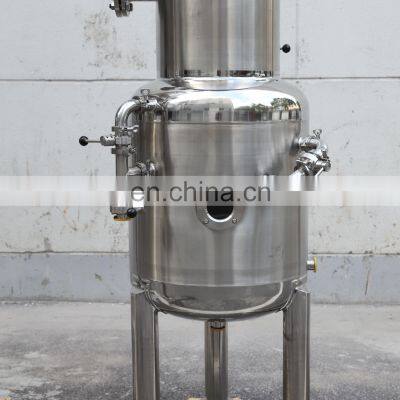

Rising Film Evaporator Ethanol Recovery
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rising Film Evaporator Vacuum Distillation Alcohol DistillerNegotiableMOQ: 1 -
200 to 1000L/h Single Effect Vacuum Evaporator and CondenserNegotiableMOQ: 1
-
LAB1ST Manufacture Good Price Single Effect Stainless Steel Industrial Falling Film Extraction Evaporator for SaleNegotiableMOQ: 1
-
Rotovap Double Condenser Manufacturer Price Lab Scale Laboratory Purification of Ethanol Solvent Rotovap Rotary EvaporatorNegotiableMOQ: 1
-
Double Condenser Manufacturer Price Lab Scale Laboratory Rotovap Rotary Evaporator for Ethanol Solvent PurificationNegotiableMOQ: 1
Product Overviews

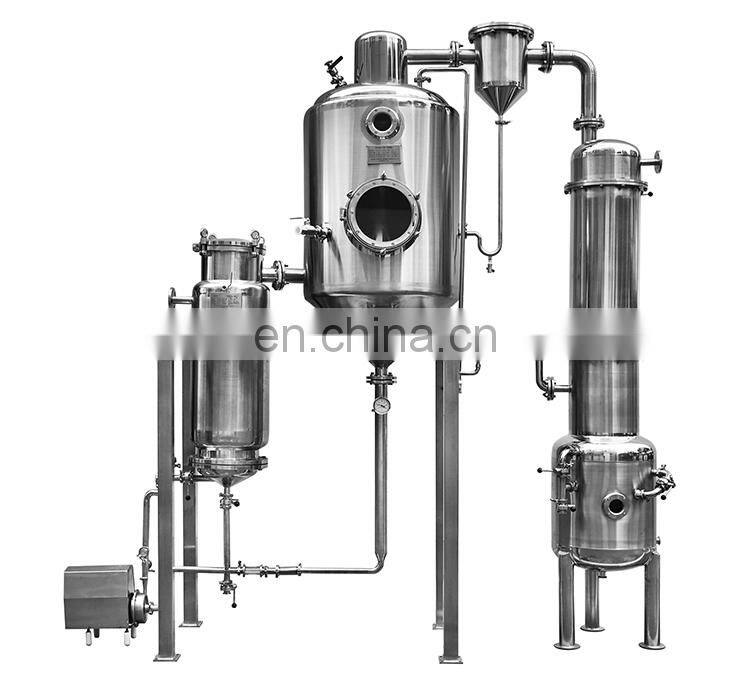

Rising Film Eveporator
Rising film evaporator is a type of evaporator that is essentially a vertical shell and tube heat exchanger. The liquid being evaporated is fed from the bottom into long tubes and heated with steam condensing on the outside of the tube from the shell side. This is to produce steam and vapour within the tube bringing the liquid inside to a boil. The vapour produced then presses the liquid against the walls of the tubes and causes the ascending force of this liquid. As more vapour is formed, the centre of the tube will have a higher velocity which forces the remaining liquid against the tube wall forming a thin film which moves upwards.
| Model | RFE-200L | RFE-500L | RFE-1000L |
| Vacuum Degree (Mpa) | -0.06~-0.095 | -0.06~-0.095 | -0.06~-0.095 |
| Evaporation Temp. (℃) | 45~75 | 55~75 | 55~75 |
| Evaporation Capacity (kg/h) | 200 | 500 | 1000 |
| Heating Area (m^2) | 4 | 10 | 16 |
| Steam Pressure (Mpa) | 0.25 | 0.25 | 0.25 |
| Steam Consuption (kg/h) | 220 | 600 | 1100 |
| Primary Condensing Area (m^2) | 10 | 26 | 57 |
| Secondary Condensing Area (m^2) | 0.5 | 1 | 2 |
| Cooling Water Inlet Temp. (℃) | 32 | 32 | 32 |
| Cooling Water Outlet Temp. (℃) | 40 | 40 | 40 |
| Cooling Water Capacity (m³/h) | 15 | 32 | 65 |
| Liquid Collector | 210L | 360L + 100L | 600L + 250L |
| Evaporation Chamber (L) | 650 | 1100 | 2100 |
| Gas-Liquid Seperator (L) | 30 | 70 | 140 |
| Material | SS304 | SS304 | SS304 |
